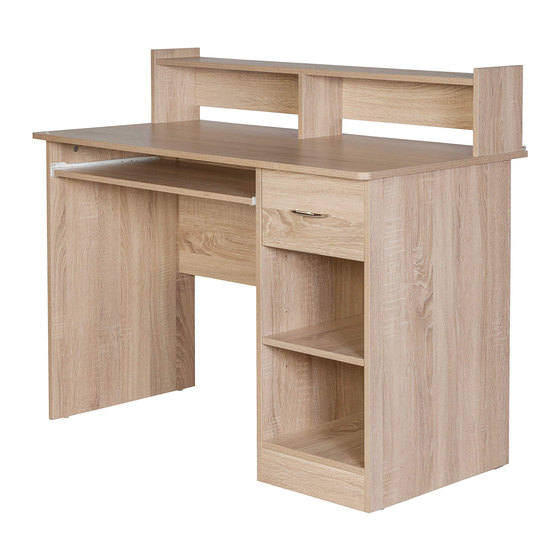

Essential computer desk, classic oak
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
MODEL # 50-LD01LO
SUPPLIER CODE: JNFF
Essential Computer Desk, Classic Oak
CUSTOMER SERVICE
For fastest service on claims, requests for replacment parts,
or questions, please visit our website at:
www.comfort products.net/support
e-mail: customerservice @comfortproducts.net
Keep your sales receipt as documentation of your ownership.
7

Advertisement

loading
Need help?

Need help?

Do you have a question about the 50-LD01LO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onespace 50-LD01LO

Summary of Contents for Onespace 50-LD01LO

  • Page 1 ASSEMBLY INSTRUCTIONS MODEL # 50-LD01LO SUPPLIER CODE: JNFF Essential Computer Desk, Classic Oak CUSTOMER SERVICE For fastest service on claims, requests for replacment parts, or questions, please visit our website at: www.comfort products.net/support e-mail: customerservice @comfortproducts.net Keep your sales receipt as documentation of your ownership.

  • Page 2: Assembly Overview

    ASSEMBLY OVERVIEW Hutch maximum weight capacity = 22lbs Desktop maximum weight capacity = 165lbs Middle shelf maximum weight capacity = 22lbs Bottom shelf maximum weight capacity = 44lbs Drawer maximum weight capacity = 11lbs 2 of 16...
  • Page 3 51-LD01LODT 51-LD01LOLB 51-LD01LORB 51-LD01LOMB 51-LD01LOLBB 51-LD01LORBB 51-LD01LOKT 51-LD01LOMS 51-LD01LOBS 51-LD01LOSPB 51-LD01LODF 3 of 16...
  • Page 4 PARTS LIST 2 OF 2 ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTION SIDE 1 SIDE 2 STOCK # QTY. Left Drawer 51-LD01LOLDB Board Right Drawer 51-LD01LORDB Board Drawer Back 51-LD01LODB 51-LD01LODBM Drawer Bottom Hutch Back 51-LD01LOHB Hutch Top 51-LD01LOHT Hutch Left 51-LD01LOHL Hutch Right 51-LD01LOHR...

  • Page 5: Hardware List

    HARDWARE LIST EXTRA HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. HARDWARE KIT STOCK # 51-LD01LOHA PART DESCRIPTION QTY. - READ THE INSTRUCTION MANUAL BEFORE ASSEMBLING. - REMOVE ALL PIECES BEFORE BEGINNING INSTALLATION. M4 X 40MM - OPEN THE HARDWARE AS NEEDED . - ASSEMBLE IN AN AREA WITH PLENTY OF SPACE.
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 1 Use a hammer to attach foot pins (G) to the bottom of the left (2), middle (4), and right (3) boards. H x 4 6 of 16...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 2 Attach a left outer drawer roller (21a) to the left board (2) and a right outer drawer roller (21a) to the right board (3) using small screws (C). Attach two rollers to the middle board (4), a right outer roller (21a) to the left side and a left outer roller (21a) to the right side.
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 3 screw Do not overtighten bolts or cams will not lock properly. D x 20 Left Side Right Side 8 of 16...
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 4 Insert cams (E) into the bottom shelf (9) and into the two support boards (10). Make sure the arrows are facing the smaller holes which the bolts go into. First, attach shelf and support boards to the middle board (4), and then attach these to the right board (3) by aligning the bolts and cams.
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 6 Insert four cams (E) into the left back board (5). Make sure arrows are facing the smaller holes. Attach back board (5) to left board (2) and middle board (4). Turn the cams about 1/2 turn clockwise to lock into place. CAUTION: Do not overtighten cams.
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 8 Insert two cams into the hutch back board (16) and attach to the hutch top board (17). Insert ten cams into the hutch back (16), hutch top (17), and hutch middle board (20). Attach hutch left (18), hutch middle (20), and hutch right (19) to the back and top boards.
  • Page 12 ASSEMBLY INSTRUCTIONS STEP 10 Insert eight cams (E) into the left, middle, and right boards and left back board as shown. Attach desktop (1) with hutch to the lower part of the desk by aligning the eight bolts (D) (already screwed into the desktop) with cams. Tighten cams 1/2 turn.
  • Page 13 ASSEMBLY INSTRUCTIONS STEP 12 STEP 11 Insert cams into the left (12) and right (13) drawer boards and attach both boards to the drawer front (11). Make sure the grooves for the drawer bottom are aligned. D x 4 E x 4 STEP 13 STEP 14 Align groove in drawer back (14) with drawer bottom.
  • Page 14 ASSEMBLY INSTRUCTIONS STEP 15 STEP 16 Attach two inner drawer rollers (21b), one left and one Attach drawer handle (F) to drawer front using right, to the bottom of drawer using four screws (C) as shown. two screws (B). Make sure rollers are oriented to the back of the drawer. Refer to drawing below for which holes in the roller to use.
  • Page 15 ASSEMBLY INSTRUCTIONS STEP 18 Insert shelf supports (H) into any of the four sets of holes, according to desired height. Place middle shelf (8) on supports. H x 4 STEP 19 STEP 20 Place plastic caps (22) over cams at the back of the Align inner and outer rollers to insert desk and cams in the hutch middle board (20).
  • Page 16 165 pounds for the desktop, 11 pounds for the drawers, 22 pounds for the middle shelf, 44 pounds for the bottom shelf, and 22 pounds for the hutch. For claims or questions concerning this warranty, please visit: www.comfortproducts.net or email us at: customerservice@comfortproducts.net MODEL: # 50-LD01LO Comfort Products, Inc. 122 Gayoso Avenue, Suite 101 Memphis, TN 38103 www.comfortproducts.net...
