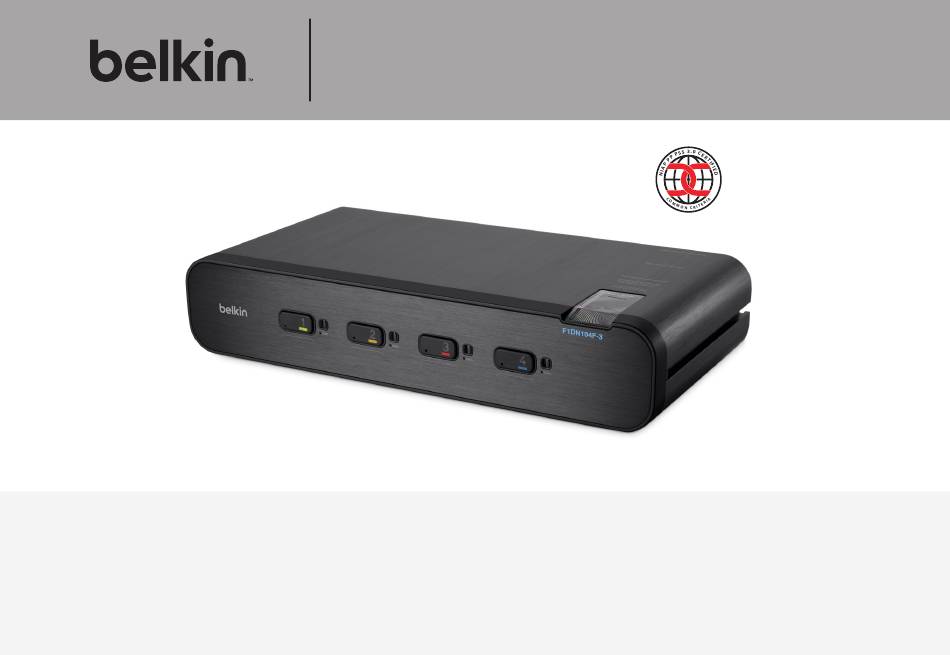

User Manual

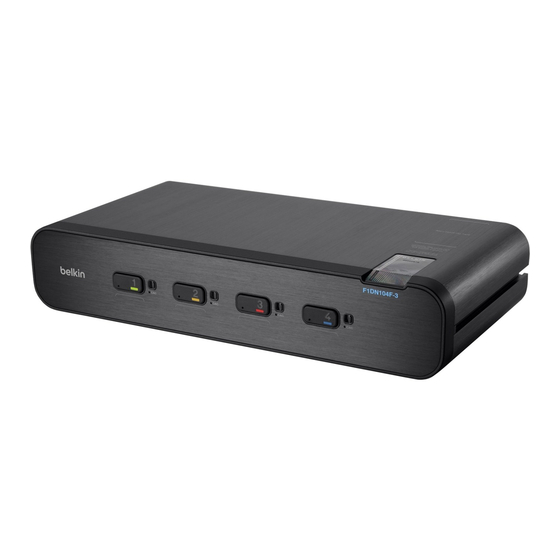

F1DN104E-3 – Belkin Advanced Secure Dual-Head DVI-I KVM Switch; 4-Port
F1DN104F-3 – Belkin Advanced Secure Dual-Head DVI-I KVM Switch; 4-Port Plus
Document Number 8820-00764 Rev. B02
Advanced Secure Dual-Head
DVI-I KVM Switch
This Belkin product is compliant
with latest NIAP Protection Profile
PSS Ver. 3.0, which exceeds EAL4
and PP PSS Ver. 2.1.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Belkin F1DN104F-3
Summary of Contents for Belkin F1DN104F-3
- Page 1 NIAP Protection Profile PSS Ver. 3.0, which exceeds EAL4 and PP PSS Ver. 2.1. User Manual F1DN104E-3 – Belkin Advanced Secure Dual-Head DVI-I KVM Switch; 4-Port F1DN104F-3 – Belkin Advanced Secure Dual-Head DVI-I KVM Switch; 4-Port Plus Document Number 8820-00764 Rev. B02...
- Page 2 Connection and Installation ....... . 15 Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual...
-
Page 3: Package Contents
SECTIONS Table of Contents Package Contents Thank you for purchasing this Belkin Secure DVI-I Dual-Head KVM Switch (the Switch). This KVM Switch is designed for use in secure defense and intelligence installations. The Switch offers safe centralized • Belkin Secure DVI-I Dual-Head KVM Switch control, which prevents unintended data transfer between computers running at different security levels. -
Page 4: Safety Precautions
– The product shows obvious signs of breakage or loose internal parts. – In case of external power supply – If power supply overheats, is broken or damaged, or has a damaged cable. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... -
Page 5: User Guidance & Precautions
- it is inoperable and for future use. audio input. In any case do not connect a microphone to product audio output port, including headsets. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... - Page 6 TEMPEST devices. However, we RECOMMEND against connecting the Belkin KVM products to TEMPEST devices. The reason is that these Belkin devices are designed with Common Criteria Peripheral Sharing Switch (PSS) PP3.0 standards, not TEMPEST. The TEMPEST certification mandates specific measures to prevent electrical leakage and the PSS standards DO NOT include such measures.
-
Page 7: Security Features
• Video path is kept separate from all other traffic, enforcing unidirectional native video flow. EDID emulation is done at power up and blocks all EDID/MCCS writes. For DisplayPort video, filtration of AUX channel exists to reject unauthorized transactions. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... -
Page 8: Tamper Evident Labels
Belkin Technical Support at: (800) 282-2355. active anti-Tampering system Belkin Secure Switch is equipped with an always- on active anti-tampering system. If mechanical intrusion is detected by this system, the Switch will be permanently disabled and LED will blink continuously. -
Page 9: Other Features
SECTIONS Table of Contents other features The Belkin Secure DVI-I Dual-Head KVM Switch was designed with the Port Coloring user in mind for today’s IT environment. Below is a summary of some The included color chips can be inserted into each port-selector button. -
Page 10: Equipment Requirements
Table of Contents equipment requirements Cables Belkin highly recommends you use Belkin Dual DVI/USB KVM Cable Kits for your Switch to help ensure superior performance. These cables offer the highest quality possible to ensure optimal data and video transmission. One Cable Kit is required per connected computer belkin dual dVI-d/usb KVM Cable Kits with audio: F1D9014b06 –... -
Page 11: System Requirements
USB hubs and other USB-integrated devices, may not be fully supported due to security policy. If they are supported, only classical keyboard (HID) operation will be functional. It is recommended to use standard USB keyboards. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... -
Page 12: User Display
• The console video ports are compatible with DVI-I displays as well as VGA and HDMI via compatible cables. Common access Card readers (F1DN104F-3 model only) • USB-compatible CAC or smart-card readers Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual... - Page 13 SECTIONS Table of Contents unit display diagram, front View F1DN104F-3 model shown LED Indicator Tamper-Evident Seal Name Label Guide CAC Enable Switch Port Selector Color Chip (F1DN104F-3 model only) Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual...
- Page 14 9 10 11 12 Console USB CAC Reader Port PS/2 Console mouse Port Video Diagnostic LEDs and LED (F1DN104F-3 model only) Remote control (non-operative, for future use) Computer USB KM port Console DVI Ports Console Audio Input Jack Computer audio port...
-
Page 15: Specifications
(F1DN104E-3) 12.5 (W) x 6.4 (D) x 2.5 (H) in Max resolution support 3840x2160 pixels (UHD 4K) at 30Hz, (F1DN104F-3) 12.5 (W) x 6.4 (D) x 2.5 (H) in 2560x1600 pixels @ 60Hz weight (F1DN104E-3) 4.85 lbs. Console Keyboard Input USB Type A or PS/2 Mini-DIN 6-pin female (F1DN104F-3) 4.9 lbs. -
Page 16: Installation
The enclosure of the Switch is designed for desktop or under-mount If the unit’s enclosure appears disrupted or if all channel-select LEDs configuration. An optional Mount Kit (Belkin part number F1D008) is flash continuously, please remove product from service immediately available. -
Page 17: Connection And Installation
This indicates the display EDID information has been captured and secured. If the display diagnostic LED remains blinking for longer than 10 seconds after power up, refer to the Troubleshooting section of this user manual. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... - Page 18 #1, #2 and then #3. The USB cable must be connected directly to a free USB port on the computer, with no USB hubs or other devices in between. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®...
-
Page 19: Color Code Chip Installation
Insert color chip Remove color chip with a standard paperclip Port name label The included network-name labels can be placed in the area underneath the port-selector buttons for port identification. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... -
Page 20: Operating The Kvm Switch
Please note that the default port at power-up is port 1. In case of a power failure or if the power is cycled, the Switch will default to port 1. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual... -
Page 21: Common Access Card (Cac) Configuration And Installation
SECTIONS Table of Contents Common access Card (CaC) Configuration and operation (f1dn104f-3 model only) CAC connection to the computer requires a separate USB cable 1.6 When product is powered ON and connected USB device is connection and allows the user to specify whether there is a CAC qualified and ready for use, the CAC status LED will illuminate required for that computer or not. -
Page 22: Frequently Asked Questions
Yes, the Switch requires a 12-volt DC, 1.5-Amp (minimum) power Please call Belkin Technical Support at (800) 282-2355 immediately. adapter in order to function properly. The KVM Switch’s circuitry may have been compromised. -
Page 23: Troubleshooting
• Try a different monitor. refresh-rate setting on your computer. • Lower the video resolution of your monitor. • Check that the video-cable length does not exceed 15 feet (4.6m). Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... - Page 24 Due to the security of the KVM Switch and known exploitation of lock-state information for leakages, the LED status is not supported. Please refer to the operating system for verification of the lock-state information for CAPS, NUM, and Scroll Lock. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®...
-
Page 25: Safety Statement
CoMPaTIbIlITy • Reorient or relocate the receiving antenna. We, Belkin International, Inc., of 12045 E. Waterfront Drive, Playa Vista, CA 90094, declare under our sole responsibility that the product, F1DN104E-3 and F1DN104F-3, to which this declaration •... -
Page 26: Important Note
IMPorTanT noTe: Ce declaration of Conformity Industry Canada statement We, Belkin International, Inc., declare under our sole responsibility that the product F1DN104E-3 and F1DN104F-3, to which this declaration relates, are in conformity with EMC Directive 2014/30/EU , Low Voltage This device complies with ICES-003 of the Industry Canada Rules. - Page 27 Conformity Caution: Any changes or modifications not expressly approved by the We, Belkin International, Inc., declare under our sole responsibility that party responsible for compliance could void the user's authority to the product F1DN104E-3 and F1DN104F-3, to which this declaration operate this equipment.
- Page 28 In the event that Belkin is unable to repair or replace the product (for example, because it has been discontinued), Belkin will offer either a refund or a credit toward the purchase of another product -Consult the dealer or an experienced radio/TV technician for help.
- Page 29 How to get service? THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN. To get service for your Belkin product you must take the following steps: THERE ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS Contact Belkin International, Inc., at 12045 E. Water front...
-
Page 30: Reporting Belkin Product Security Vulnerability
ConsuMers: In addition to purchaser’s other rights and remedies under law, this If you are aware of potential security vulnerability with any Belkin product comes with a warranty againsts defects which is given by Government product, we encourage you to contact us immediately Belkin Limited, 2 Reliance Drive, Tuggerah Business Park, Tuggerah at the following email address: gov_security@belkin .com or our... - Page 31 *HDC10385* © 2016 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac OS is a trademark of Apple Inc., registered in the U.S. and other countries.
