Belkin F1DN108K-3 User Manual

Advanced secure 4 and 8-port keyboard/mouse switches
Hide thumbs Also See for F1DN108K-3:
Table of Contents

Advertisement

Quick Links

Download this manual

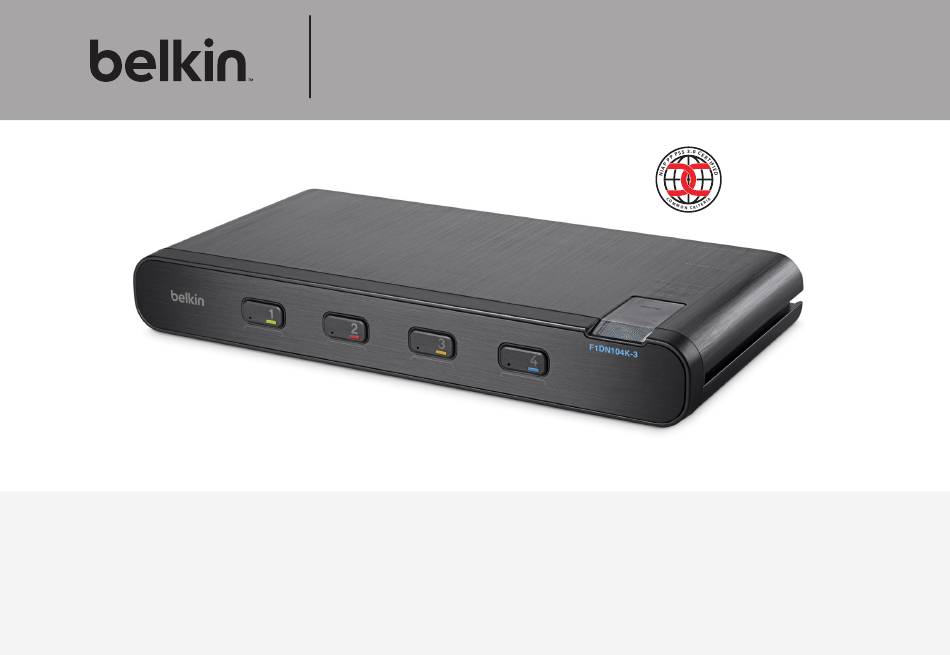

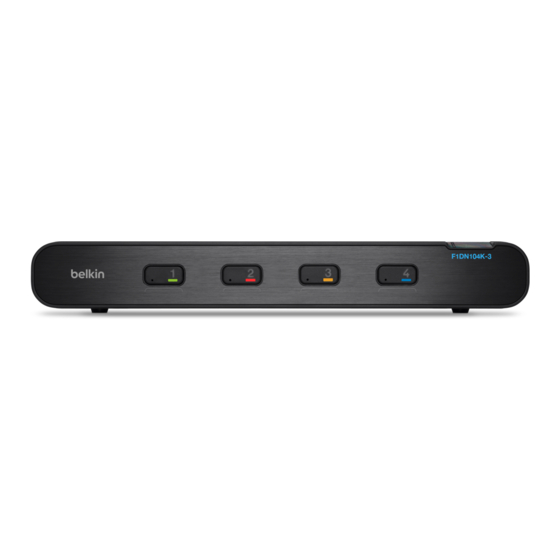

User Manual
F1DN104K-3 – Belkin Advanced Secure 4-Port Keyboard/Mouse Switch
F1DN108K-3 – Belkin Advanced Secure 8-Port Keyboard/Mouse Switch
Document Number 8820-01342 Rev. B03
Advanced Secure 4 and 8-Port
Keyboard/Mouse Switches
This Belkin product is compliant
with latest NIAP Protection Profile
PSS Ver. 3.0, which exceeds EAL4
and PP PSS Ver. 2.1.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1DN108K-3 and is the answer not in the manual?

Questions and answers

Related Manuals for Belkin F1DN108K-3

Summary of Contents for Belkin F1DN108K-3

  • Page 1 This Belkin product is compliant with latest NIAP Protection Profile PSS Ver. 3.0, which exceeds EAL4 and PP PSS Ver. 2.1. User Manual F1DN104K-3 – Belkin Advanced Secure 4-Port Keyboard/Mouse Switch F1DN108K-3 – Belkin Advanced Secure 8-Port Keyboard/Mouse Switch Document Number 8820-01342 Rev. B03...
  • Page 2 Utility (KMC Loader) Software ......35 Belkin Secure KM Features ....... . 13 Product Specifications .

  • Page 3: What Is A Km (Keyboard / Mouse) Switch

    Using the problem. Belkin Secure KM users can see all the connected computers at the same time and easily decide on which computer he wants to work.

  • Page 4: Package Contents

    • AC Power Cord (F1DN108K-3 only) toll-free at (800) 282-2355. • Interchangeable Port Color Chips • Port-Naming Labels Please note: Belkin Secure KM Products cannot be upgraded, serviced • Belkin USB configuration cable or fixed. • User Manual Important security note: If you are aware of potential security vulnerability while installing or operating this product, we encourage you to contact us immediately at the following email address: gov_security@belkin .com...

  • Page 5: Safety Precautions

    – The product shows obvious signs of breakage or loose internal parts. – In case of external power supply – If power supply overheats, is broken or damaged, or has a damaged cable. Belkin Secure 4/8 port KM Switch User Manual ®...

  • Page 6: User Guidance & Precautions

    For security reasons products do not support microphone/line-in not use this port - it is inoperable and for future use. audio input. In any case do not connect a microphone to product audio output port, including headsets. Belkin Secure 4/8 port KM Switch User Manual ®...
  • Page 7 However, we RECOMMEND against connecting the Belkin KM products to TEMPEST devices. The reason is that these Belkin devices are designed with Common Criteria Peripheral Sharing Switch (PSS) PP3.0 standards, not TEMPEST. The TEMPEST certification mandates specific measures to prevent electrical leakage and the PSS standards DO NOT include such measures.

  • Page 8: Security Features

    • Video path is kept separate from all other traffic, enforcing unidirectional native video flow. EDID emulation is done at power up and blocks all EDID/MCCS writes. For DisplayPort video, filtration of AUX channel exists to reject unauthorized transactions. Belkin Secure 4/8 port KM Switch User Manual ®...

  • Page 9: Tamper Evident Labels

    LED number will light up. active anti-Tampering system Belkin Secure Switch is equipped with an always-on active anti-tampering system. If mechanical intrusion is detected by this system, the Switch will be permanently disabled and LED will blink continuously.

  • Page 10: Operational Features

    SECTIONS Table of Contents operational features The Belkin Secure KM was designed with the user in mind for today’s audio support IT environment. Below is a summary of some key operational features The Belkin Secure KM supports audio out switching. Microphone switching incorporated into the Product.

  • Page 11: What Is Seamless Cursor Switching

    SECTIONS Table of Contents What is seamless Cursor switching? Seamless Cursor Switching (SCS) is implemented in Belkin Secure KMs to enable seamless cursor and keyboard switching between multiple displays. SCS allows administrators to configure any desired multiple display KM switches from channel 3 to 2 KM switches from channel 2 to 3 configuration using the same, or different size displays and resolutions.

  • Page 12: Equipment Requirements

    Cables user operating-system (os) support Belkin highly recommends you use you use Belkin Cable Kits for your The Belkin Secure KM is compatible with computers running on, the product to help ensure superior security and performance. These cables following OS platforms: offer the highest quality possible and optimal data transmission.
  • Page 13 (HID) operation will be functional. It is The product console PS/2 keyboard and mouse ports are compatible with recommended to use standard USB keyboards. standard PS/2 keyboards and mice. Belkin Secure 4/8 port KM Switch User Manual ®...
  • Page 14 Programming Cable Special programming cable is needed to connect the product to the administrator PC and configure it. Cable is supplied with each product. If needed, please contact Belkin Sales or Technical Support for additional cable. Belkin Secure 4/8 port KM Switch User Manual...
  • Page 15 Console USB mouse port Console PS/2 mouse port DC power input jack Console USB keyboard port Computer USB KM port Console Audio Out port Console PS/2 keyboard port Computer audio port Belkin Secure 4/8 port KM Switch User Manual ®...
  • Page 16 SECTIONS Table of Contents f1dn108K-3 front Panel features LED Indicator Color chip Tamper Evident Label Port Selector Name Label Guide f1dn108K-3 back Panel features DCU port - non operable, for future use Console USB keyboard port AC power switch...

  • Page 17: Product Specifications

    PS/2 Mini-DIN 6-pin female connector 317.5 (W) X 162.56 (D) X 43.18 (H) mm (F1DN108K-3) USB Type A (F1DN108K-3) 17.25 (W) x 7.95 (D) x 1.7 (H) inch / Console Headset / 1/8" (3.5mm) female 438.15 (W) X 201.93 (D) X 43.18 (H) mm...

  • Page 18: Before Installation

    Warning: Avoid placing cables near fluorescent lights, air-conditioning If one or more label is damaged or missing, contact Belkin Tech Support equipment, or machines that create electrical noise (e.g., vacuum cleaners).

  • Page 19: Connection And Installation

    Caution: Do not connect a microphone or headset to the audio output port. step 1 – Connecting the Console devices to the belkin secure KM Warning: Before attempting to connect anything to the Switch, or your step 2 – Connecting Computers to the belkin secure KM computers, please ensure that all computer equipment and devices are 2.1 Connect each computer to the Switch ports marked “K/M”...
  • Page 20 The Belkin Advanced Secure KM Switch’s port-selector buttons can be color- coded for easier identification. Refer to the installation instructions below. 3.2 Connect the Belkin Secure KM to the cable DC plug of the 12V 1.5A external AC/DC power supply (F1DN104K-3).
  • Page 21 InsTallaTIon SECTIONS Table of Contents f1dn104K-3 Typical system installation Displays Computers Mouse Mouse Audio Keyboard PS/2 K PS/2 M Audio Audio Audio Audio Console Audio Keyboard Belkin Secure 4/8 port KM Switch User Manual ®...
  • Page 22 InsTallaTIon SECTIONS Table of Contents f1dn104K-3 typical installation with multiple displays per connected PC Displays Computers Belkin Multi-Display Mouse Mouse Driver Required for machines running two displays or more Mouse Audio Keyboard PS/2 K PS/2 M Audio Audio Audio Audio...

  • Page 23: Advanced Setup

    SECTIONS Table of Contents advanced setup Once the Belkin Secure KM is connected and powered on, essential The loaded configuration will also include the following settings by default: operational settings needs to be configured. • All displays are 1920 x 1200 resolution, same size (26” diagonal) The first and most important setting of the Switch is the monitor positioning.
  • Page 24 F11, 3, 0 F11, F10 F11, 2, 0 F11, 1, 0 (8-Port Only) Pre-Defined Configuration List - Pre-Defined Configuration List - Using CTRL, CTRL, F11, Fx Using CTRL, CTRL, F11, x, y Belkin Secure 4/8 port KM Switch User Manual ®...
  • Page 25 Driver can be loaded from Belkin display settings entered by the administrator. website. If internet access is not allowed - contact Belkin to order the KM Switch programming Kit (software CD is included in that kit.

  • Page 26: Operation

    Prevent transition while dragging feature (jammed buttons, firmware integrity). The Belkin Secure KM offers a unique feature that further improves Try to power cycle product. If problem persists please contact your system usability – Prevent Transition while Dragging. If the user drags an object administrator or technical support.
  • Page 27 If you are aware of potential security vulnerability while installing or operating this product, we encourage you to contact us immediately at the following email address: gov_security@belkin .com The gov_security@belkin .com email address is not intended to reach technical support on Belkin products or services. Belkin Secure 4/8 port KM Switch User Manual ®...

  • Page 28: Troubleshooting

    (disconnect and re-plug the power adapter). • If the blinking and clicking still persist after power cycling the unit, it is possible that the device anti-tampering system was triggered. Change the unit and call Belkin technical support. Belkin Secure 4/8 port KM Switch User Manual...
  • Page 29 Some non-standard keyboard functions are disabled by the switch to prevent • Check that the mouse you are using is connected properly to the security risks. Contact Belkin Tech Support for latest compatibility list. Switch. • Check that the USB cable between the Switch and the computer is video completely connected.
  • Page 30 This software also allows removal of unneeded bridges between monitors. before You begin Please contact belkin to order the KM switch accessory Kit . This kit includes the Cd roM disc containing files for the belkinKMadminsetup .exe (installs the KMC Creator and KMC loader), KMMultidisplaysetup .exe (installs the belkin KM Mouse...
  • Page 31 7”. The project name can be read from the KM after loading. • Product Model – The product model can be found on the back sticker of the KM switch. The Belkin Secure KM can both support two to four computers.
  • Page 32 For example, for a monitor with a native screen resolution of 1680x1050 which is used in Portrait please enter resolution of 1050x1680. Number of Monitors Display SIze Native Resolution Belkin Secure 4/8 port KM Switch User Manual ®...
  • Page 33 Enter the details for the secondary display. To find out what are the vertical and horizontal MS values, select the secondary monitor and move it slightly. Two numbers will appear on the secondary monitor. Enter both numbers in the dialog. Belkin Secure 4/8 port KM Switch User Manual ®...
  • Page 34 To enable the bridge between monitors, just drag one monitor to the desired monitor, having them touch each other. Pull apart the monitors, and the bridge should appear between the monitors again. Belkin Secure 4/8 port KM Switch User Manual ®...
  • Page 35 3 – The setup shown below is invalid. There is no interface between the two monitor hence the curser will not move. It is recommended to use the below bottom setup instead which will give similar results. Belkin Secure 4/8 port KM Switch User Manual ®...
  • Page 36 • Computers with multi displays Rule #2 – All displays connected to the same PC must be stuck to one another. It is impossible to have distance between two displays connected to the same PC. Belkin Secure 4/8 port KM Switch User Manual ®...
  • Page 37 (KMC loader) software loading utility Belkin’s Secure KM Configuration Utility (KMC Loader) allows you to load the configured .kmc file (created per the procedure defined in Appendix A Once the KM Switch is in Administration mode and is connected to the PC: of this manual) into the Secure KM Switch.
  • Page 38 After loading is complete, restart the KM by disconnecting and then reconnecting power. Reconnect the mouse back to the mouse port and the new configuration will apply. Figure 3 – KM Loading Utility capture – File not correct Belkin Secure 4/8 port KM Switch User Manual ®...
  • Page 39 If the utility cannot communicate with KM switch, it will prompt “KM not ready” and no communication port will appear. Figure 4 – Communication between KM and utility has been lost Belkin Secure 4/8 port KM Switch User Manual ®...

  • Page 40: Fcc Statement

    FOR ELECTROMAGNETIC COMPATIBILITY • Increase the distance between the equipment and the receiver. We, Belkin International, Inc., of 12045 E. Waterfront Drive, Playa Vista, CA 90094, declare under our sole responsibility that the product, F1DN104K-3 and F1DN108K-3, to which this declaration •...

  • Page 41: Ce Declaration Of Conformity

    This digital apparatus complies with CAN ICES-3(B)/NMB-3 (B). Industry Canada statement Ce declaration of Conformity We, Belkin International, Inc., declare under our sole responsibility that This device complies with ICes-003 of the Industry Canada rules . the product F1DN104K-3 and F1DN108K-3, to which this declaration...
  • Page 42 -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. We, Belkin International, Inc., declare under our sole responsibility that the product F1DN104K-3 and F1DN108K-3, to which this declaration -Connect the equipment into an outlet on a circuit different from that to relates, are in conformity with the requirements of AS/NZS regulations which the receiver is connected.
  • Page 43 SECTIONS Table of Contents Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Belkin Secure 4/8 port KM Switch User Manual ®...
  • Page 44 International, Inc ., limited 3-Year Product Warranty What this warranty covers . Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this Belkin product that the product shall be free of defects in design, assembly, material, or workmanship. What the period of coverage is .
  • Page 45 ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED If Belkin determines, in its sole discretion, that it is impractical to ship the BY LAW, IMPLIED, INCLUDING THE IMPLIED WARRANTY OR CONDITION damaged equipment to Belkin, Belkin may designate, in its sole discretion,...

  • Page 46: Reporting Belkin Product Security Vulnerability

    SECTIONS Table of Contents reporting belkin Product security vulnerability If you are aware of potential security vulnerability with any Belkin Government product, we encourage you to contact us immediately at the following email address:  gov_security@belkin .com or our technical support line at: 1-800-282-2355.
  • Page 47 *HDC10389* © 2016 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac OS is a trademark of Apple Inc., registered in the U.S. and other countries.
