Belkin F1DN102KVM-UNN4 User Manual

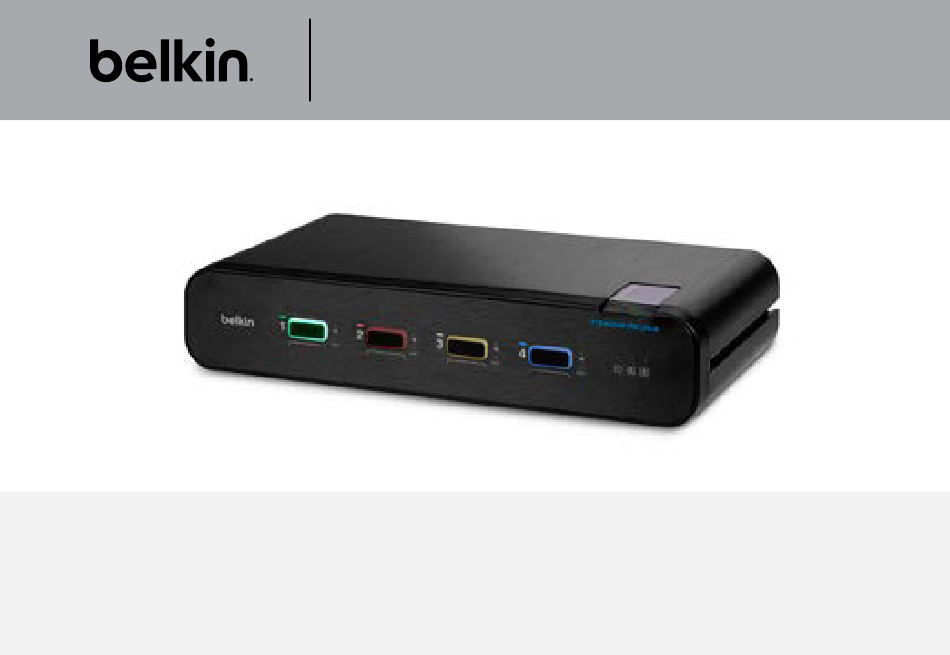

Universal 2nd gen secure dp/hdmi to dp/hdmi kvm switch
Hide thumbs
Also See for F1DN102KVM-UNN4:
- Quick installation manual (3 pages) ,
- Regulatory information (2 pages) ,
- Administrator's manual (17 pages)
Advertisement
Quick Links
User Manual
F1DN102KVM-UNN4 – Universal Secure 2-Port KVM, PP 4.0
F1DN102KVM-UN-4 – Universal Secure 2-Port KVM with CAC, PP 4.0
F1DN104KVM-UNN4 – Universal Secure 4-Port KVM, PP 4.0
F1DN104KVM-UN-4 – Universal Secure 4-Port KVM with CAC, PP 4.0
F1DN202KVM-UNN4 – Universal Secure 2-Port Dual-Head KVM, PP 4.0
F1DN202KVM-UN-4 – Universal Secure 2-Port Dual-Head KVM with CAC, PP 4.0
F1DN204KVM-UNN4 – Universal Secure 4-Port Dual-Head KVM, PP 4.0
F1DN204KVM-UN-4 – Universal Secure 4-Port Dual-Head KVM with CAC, PP 4.0
Document Number - LNKPG-00674 Rev. B00
Universal 2nd Gen Secure
DP/HDMI to DP/HDMI KVM Switch
This Belkin product is compliant with the
latest NIAP Protection Profile PSD v4.0,
which exceeds Protection Profile PSS v3.0.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Belkin F1DN102KVM-UNN4
Summary of Contents for Belkin F1DN102KVM-UNN4
- Page 1 NIAP Protection Profile PSD v4.0, which exceeds Protection Profile PSS v3.0. User Manual F1DN102KVM-UNN4 – Universal Secure 2-Port KVM, PP 4.0 F1DN102KVM-UN-4 – Universal Secure 2-Port KVM with CAC, PP 4.0 F1DN104KVM-UNN4 – Universal Secure 4-Port KVM, PP 4.0 F1DN104KVM-UN-4 –...
- Page 2 Color Coding the Channel Buttons ..........20 Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch ®...
- Page 3 Table of Contents Package Contents Thank you for purchasing this Belkin Secure DisplayPort/HDMI KVM. This Switch is designed for use in secure environment installations. The Switch offers safe centralized control, which prevents unintended data transfer between computers running at Belkin Advanced Secure DisplayPort/HDMI KVM different security levels.
- Page 4 The product shows obvious signs of breakage or loose internal parts. In case of external power supply – If power supply overheats, is broken or damaged, or has a damaged cable. Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs >...
- Page 5 When connecting a USB device that is undetectable for any reason (e.g. failed device, non-standard device etc.) to product’s CAC port, the CAC LED will not illuminate at all and device will be inoperable. Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs >...
- Page 6 EDID emulation is done at power up and blocks all EDID/MCCS protected against firmware-read, modification and rewrite. writes. For DisplayPort video, filtration of AUX channel exists to reject unauthorized transactions. Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs > ®...
- Page 7 If for any reason the tamper evident seal is missing, appears disrupted, or looks different than the example shown here, please avoid using the product and call Belkin Technical Support at: (800) 282-2355. active anti-Tampering system Belkin Secure Switch is equipped with an always-on active anti-tampering system.
- Page 8 Table of Contents other features The Belkin Universal Secure DisplayPort/HDMI KVM was designed with the user in usb support mind for today’s IT environment. Below is a summary of some features incorporated The Switch is compatible with USB technology and supports plug-and-play into the Switch.
- Page 9 As a port selector is pushed, to over 7 years. the LED number and button outline will light up. Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs >...
- Page 10 Table of Contents equipment requirements Cables The Universal SKVM can accommodate DP, HDMI, and DVI PC connections. Belkin highly recommends you use Belkin DisplayPort, HDMI, or DVI passive conversion/ USB KVM Cable Kits for your Switch to help ensure superior performance.
- Page 11 USB-integrated devices, may not be fully supported due to security policy. If they are supported, only classical keyboard (HID) operation will be functional. It is recommended to use standard USB keyboards. Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs >...
- Page 12 F1DN204KVM-UN-4 e f g Active port Num Lock Audio active (if equipped) Caps Lock CAC/DPP active (if equipped) Scroll Lock Channel Buttons 1-4 Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs > ®...
- Page 13 Console Audio port DC Power Jack Console USB Keyboard Port Console USB Mouse Port Video Diagnostic LEDs Computer Audio port Console DP/HDMI Ports Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs > ®...
- Page 14 Console Audio port DC Power Jack Console USB Keyboard Port Console USB Mouse Port Video Diagnostic LEDs Computer Audio port Console DP/HDMI Ports Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs > ®...
- Page 15 Console Audio port DC Power Jack Console USB Keyboard Port Console USB Mouse Port Video Diagnostic LEDs Computer Audio port Console DP/HDMI Ports Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs > ®...
- Page 16 Console Audio port DC Power Jack Console USB Keyboard Port Console USB Mouse Port Video Diagnostic LEDs Computer Audio port Console DP/HDMI Ports Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs > ®...
- Page 17 Table of Contents specifications Part no. F1DN102KVM-UNN4 Max resolution supported HDMI 2.0 and DisplayPort 1.2 ports support UHD 4K resolutions of up to 3840x2160 pixels F1DN202KVM-UNN4 @ 60Hz. F1DN104KVM-UNN4 Console Keyboard Port USB Type A female connector F1DN204KVM-UNN4...
- Page 18 Foreign components. Humidity 0-80% RH, non-condensing Product lifecycle 5 years dimensions f1dn102KVM-unn4 and f1dn102KVM-un-4 12.5 (W) x 1.9 (H) x 6.2 (L) inches / 317.5 (W) x warranty 3 years (extended warranty available) 48.3 (H) x 157.5 (L) mm security accreditation...
- Page 19 Rack-mount brackets are not included with the Switch. continuously, please remove product from service immediately and contact belkin Technical support at (800) 282-2355. Consider the following when deciding where to place the switch: Do not connect product to computing devices: Your proximity to the port selectors on the front of the Switch That are TEMPEST computers;...
- Page 20 4.1 Power up the Belkin Advanced Secure DisplayPort KVM by connecting the power. Connect your monitor, keyboard, mouse, and speaker to the rear of the Switch in the The display diagnostic LED should be solid green a few seconds after power “User Console”...
- Page 21 Powering up the Computers Power up all the attached computers and check for display and peripheral functionality. All computers can be powered on simultaneously. Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs >...
- Page 22 Port name label The included network-name and blank labels can be placed in the area underneath The Belkin Advanced Secure DisplayPort KVM’s port-selector button outlines can be the port-selector buttons for port identification. color-coded for easier identification. Refer to the Administrator manual for details.
- Page 23 Please note that the default port at power-up is port 1. In case of a power failure or if the power is cycled, the Switch will default to port 1. Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs >...
- Page 24 CAC enabled channel button 3 times in rapid succession. The CAC freeze light will illuminate. To disable CAC freeze, press the channel button three times in rapid succession to remove the freeze. belkin universal 2nd Gen secure dP/HdMI to dP/HdMI KVM switch baCK To Table of ConTenTs >...
- Page 25 Ensure that the AC power cord is securely connected to both the AC inlet and inoperable. If the unit’s enclosure appears disrupted or if all the port LEDs flash to the wall outlet. continuously, please call Belkin Technical Support at (800) 282-2355. Check that the power switch is in the ON position. Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs >...
- Page 26 Ensure that the power switch is in the ON position. monitor. Check that the display is turned on. With everything connected, power-cycle the Belkin Advanced Secure DisplayPort Check that the cables are connected, and check that the display input is KVM to reset the video.
- Page 27 The CaPs, nuM, and scroll lock lights on my keyboard do not function when I connect to the belkin advanced secure displayPort KVM. This is normal operation. Due to the security of the Belkin Advanced Secure DisplayPort/HDMI KVM and known exploitation of lock-state information for leakages, the LED status on the keyboard is not supported.
- Page 28 If you are aware of potential security vulnerability while installing or operating this product, we encourage you to contact us immediately at the following email address: gov_security@belkin.com The gov_security@belkin.com email address is not intended to reach technical support on Belkin products or services. Belkin Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch baCK To Table of ConTenTs >...
- Page 29 (for example, because it has been discontinued), Belkin will offer either a refund or a credit toward the purchase of another product from Belkin. com in an amount equal to the purchase price of the product as evidenced on the original purchase receipt as discounted by its natural use.
- Page 30 Table of Contents what is not covered by this warranty? All above warranties are null and void if the Belkin product is not provided to Belkin Belkin reserves the right to review the damaged Belkin product. All costs of shipping for inspection upon Belkin’s request at the sole expense of the purchaser, or if...
- Page 31 IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
- Page 32 © 2022 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac OS is a...
