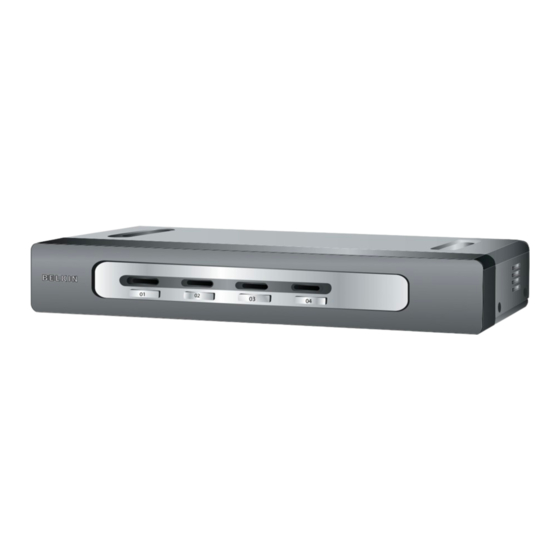

Belkin F1DN104U User Manual
Omniview secure kvm switch
Hide thumbs
Also See for F1DN104U:
- Specifications (4 pages) ,
- User manual (2 pages) ,
- Specifications (4 pages)
Table of Contents
Advertisement
Quick Links
Belkin Tech Support
US: 800-282-2355
310-898-1100, ext. 2263
UK: 0845 607 77 87
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 65 64857620
Europe: www.belkin.com/support
Belkin International, Inc.
Belkin International, Inc.
501 West Walnut Street
Los Angeles, CA 90220, USA
310-898-1100
310-898-1111 fax
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
+44 (0) 1933 35 2000
+44 (0) 1933 31 2000 fax
© 2008 Belkin International, Inc. All rights reserved. All trade names are registered trademarks
of respective manufacturers listed. Windows, Windows Vista, Microsoft, and IntelliMouse
are either registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries. Mac OS and Mac are trademarks of Apple Inc., registered in the U.S.
and other countries.
OmniView
KVM Switch
Belkin Ltd.
4 Pioneer Avenue
Tuggerah Business Park
Tuggerah, NSW 2259, Australia
+61 (0) 2 4350 4600
+61 (0) 2 4350 4700 fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, The Netherlands
+31 (0) 20 654 7300
+31 (0) 20 654 7349 fax
Secure
®
P75209-C
Advertisement
Table of Contents
Related Manuals for Belkin F1DN104U
Summary of Contents for Belkin F1DN104U
-
Page 1: Kvm Switch
+44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax © 2008 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows, Windows Vista, Microsoft, and IntelliMouse are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. -
Page 2: User Manual
OmniView Secure ® KVM Switch User Manual F1DN102U F1DN104U F1DN108U... -
Page 4: Table Of Contents
Table of Contents Introduction ..................... 1 Package Contents ................1 Overview ....................2 Security Features ................2 Other Features ................3 Equipment Requirements ............... 4 System Requirements ..............5 Unit Display Diagrams ..............6 Specifications ................7 Installation ....................8 Pre-Configuration ................ -
Page 6: Introduction
For quick and easy installation, please refer to the Quick Installation Guide included in your packaging. We appreciate your business and are confident that you will soon see for yourself why over 1 million Belkin OmniView products are in use worldwide. Package Contents 5V DC, 3A Global... -
Page 7: Overview
Overview Security Features • Dedicated Processors Designed specifically for secure environments, the Switch features a dedicated processor per computer port. This keeps each computer running on different security levels completely separated and secure at all times, and prevents any unintended data transfer between computers. •... -
Page 8: Other Features
The Switch includes a global power adapter and interchangeable plugs, to allow for both domestic and international installations. The 2- and 4-Port Switches require an optional Rack-Mount Kit for rack installation (Belkin part number F1D005). Includes AC plugs for the U.S., U.K., Europe, and Australia. -
Page 9: Equipment Requirements
Overview Equipment Requirements Cables Belkin highly recommends you use Belkin All-In-One USB KVM Cable Kits for your Switch to help ensure superior performance. These cables offer the highest quality possible to ensure optimal data and video transmission. One Cable Kit is required per connected computer. -
Page 10: System Requirements
Overview System Requirements Operating-System (OS) Platforms The Switch is compatible with computers running on, but not limited to, the following OS platforms: • Windows 2000 ® • Windows XP (Home/Professional) • Windows 2003 Server • Windows Vista ® • Red Hat Linux Desktop ®... -
Page 11: Unit Display Diagrams
Switch has not been opened or compromised since time of production. If for any reason one of the tapes is missing or appears disrupted, please call Belkin Technical Support at (800) 282-2355. -
Page 12: Specifications
3 years Dimensions: (F1DN102U) 11 x 1.75 x 6 in. (279 x 45 x 150mm) (F1DN104U) 11 x 1.75 x 6 in. (279 x 45 x 150mm) (F1DN108U) 17.25 x 1.75 x 7.5 in. (438 x 45 x 190mm) Weight: (F1DN102U) 2.5 lbs. -
Page 13: Installation
The 8-Port Switch (F1DN108U) can be mounted to a standard 19-inch server rack using the included rack-mount brackets and screws. An optional Rack-Mount Kit (Belkin part number F1D005) is available for use with the 2- and 4-Port Switches. Consider the following when deciding where to place the Switch: •... -
Page 14: Mounting The Switch (Optional)
Installation Step 1 Mounting the Switch (optional) Bracket Installation (F1DN108U) The 8-Port Switch includes adjustable mounting brackets ideal for installation in 19-inch racks. The mounting brackets feature three adjustment positions that allow you to set the Switch’s face flush with the ends of the rails, or to extend the Switch past the front of the rails. - Page 15 Bracket Installation (F1DN102U and F1DN104U) The 2- and 4-Port Switches can be installed into a 19-inch rack using an optional Rack-Mount Kit, sold separately (Belkin part number F1D005). 1.1 Attach the Rack-Mount Bracket to the Switch using the Phillips screws provided.
-
Page 16: Connecting The Console To The Switch
Plugging and unplugging cables while computers are powered on may cause irreversible damage to the computers and/or the Switch. Belkin International, Inc., is not responsible for damage caused by your failure to do so. Before you connect your console to the Switch, make sure that your USB keyboard and mouse work properly with all your computers (the Human Interface Device (HID) USB drivers are installed on all computers). - Page 17 Step 3 Connecting Computers to the Switch (required) 3.1 Make sure all computers and the Switch are powered off. 3.2 Using the Belkin All-In-One USB KVM Cable Kit (F3X1962bXX), connect the male VGA connector to the monitor port on your computer. Then connect the female VGA connector to the CPU monitor port on the Switch labeled “VGA 01”.
-
Page 18: Powering Up The Systems
Installation Step 4 Powering Up the Systems (required) 4.1 Attach the power adapter to the DC power jack labeled “5V, 2.5A” on the back of the Switch. Only use the power adapter supplied with the Switch. (Refer to diagram below.) 4.2 Power on your computers and your monitor. -
Page 19: Selecting A Computer Using Port Selectors
Using your Switch Selecting a Computer Using Port Selectors Now that you have connected your console and computers to the Switch, it is ready for use. You can select which computer you wish to control by pressing the corresponding port selector on the front of the Switch. The LED will illuminate to indicate which computer (or port) is currently selected. -
Page 20: Frequently Asked Questions
What do I do if I find that the tamper-evident tape on the Switch has been removed or disrupted? Please call Belkin Technical Support at (800) 282-2355 immediately. The KVM Switch’s circuitry may have been compromised. How does the Switch allow the user to switch between computers? The Switch only supports one method of port selection. -
Page 21: Troubleshooting
Troubleshooting General Problem: My computer does not boot when connected to the Switch but works fine when I connect my keyboard, video, and mouse directly to my computer. Solution: • Make sure that the All-In-One USB KVM Cable Kit is connected tightly between the Switch and the computer. - Page 22 Troubleshooting Keyboard Problem: The computer does not detect my keyboard, or my keyboard does not work when I switch computers or reboot. Solution: • Check that the keyboard you are using is connected properly to the Switch. • Check that the USB cable between the Switch and the computer is completely connected.
- Page 23 Troubleshooting Mouse Problem: The computer does not detect my mouse, or my mouse does not work when I switch computers or reboot. Solution: • Check that the mouse you are using is connected properly to the Switch. • Check that the USB cable between the Switch and the computer is completely connected.
-
Page 24: Information
Belkin warrants the Belkin product for three years. What will we do to correct problems? Product Warranty. Belkin will repair or replace, at its option, any defective product free of charge (except for shipping charges for the product). What is not covered by this warranty? All above warranties are null and void if the Belkin product is not provided to Belkin for inspection upon Belkin’s request at the sole expense of the purchaser, or if Belkin... - Page 25 Belkin product and how to proceed with your claim. Belkin reserves the right to review the damaged Belkin product. All costs of shipping the Belkin product to Belkin for inspection shall be borne solely by the purchaser. If Belkin...
- Page 26 Information...
