Page 1: User Manual

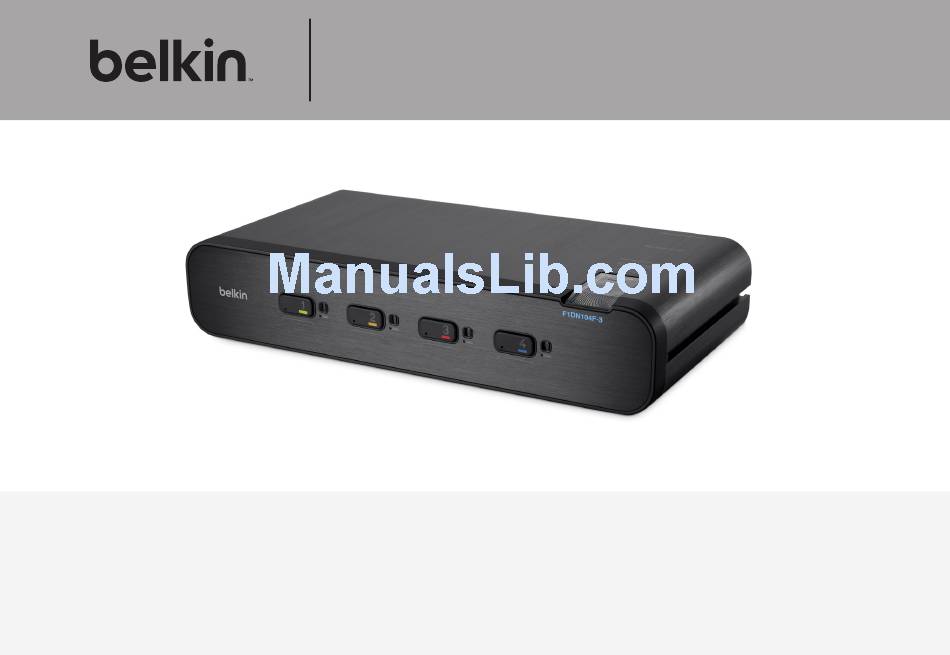

Advanced Secure DVI-I KVM Dual-Head Switch with Audio User Manual F1DN104E-3 – Advanced Secure Dual-Head DVI-I KVM Switch; 4-Port, PP3.0 F1DN104F-3 – Advanced Secure Dual-Head DVI-I KVM Switch; 4-Port Plus, PP3.0 Document Number HDC10385 Rev.C... -
Page 2: Table Of Contents
Connection and Installation ....... . 15 Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual... -
Page 3: Introduction
SECTIONS Table of Contents Package Contents Thank you for purchasing this Belkin Secure DVI-I Dual-Head KVM Switch (the Switch). This KVM Switch is designed for use in secure defense and intelligence installations. The Switch offers safe centralized • Belkin Secure DVI-I Dual-Head KVM Switch control, which prevents unintended data transfer between computers running at different security levels. -
Page 4: Safety Precautions
– The product shows obvious signs of breakage or loose internal parts. – In case of external power supply – If power supply overheats, is broken or damaged, or has a damaged cable. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... -
Page 5: User Guidance & Precautions
LED will flash green and video will not work. restored, erasing all user-set definitions. When connecting a non-qualified USB device, CAC LED will flash green and USB device will be inoperable. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... -
Page 6: Belkin ® Secure Dvi-I Kvm Dual-Head Switch With Audio User Manual
12. If you are aware of any potential security vulnerability while installing or operating product, please remove product from service immediately and contact us in one of the ways listed in this manual. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... -
Page 7: Overview
All these features contribute to strong isolation between computer interfaces, maintained even when product is powered off. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... -
Page 8: Tamper Evident Labels
Metal enclosure is designed to resist mechanical tampering with all microcontrollers protected against firmware-read, modification and active anti-Tampering system rewrite. Belkin Secure Switch is equipped with an always- on active anti-tampering system. If mechanical usb device detection intrusion is detected by this system, the Switch will be permanently Storage and other unsafe USB devices are rejected when connected to disabled and LED will blink continuously. -
Page 9: Other Features
SECTIONS Table of Contents other features The Belkin Secure DVI-I Dual-Head KVM Switch was designed with the Port Coloring user in mind for today’s IT environment. Below is a summary of some The included color chips can be inserted into each port-selector button. -
Page 10: Equipment Requirements
Table of Contents equipment requirements Cables Belkin highly recommends you use Belkin Dual DVI/USB KVM Cable Kits for your Switch to help ensure superior performance. These cables offer the highest quality possible to ensure optimal data and video transmission. One Cable Kit is required per connected computer belkin dual dVI-d/usb KVM Cable Kits with audio: F1D9014b06 –... -
Page 11: System Requirements
USB hubs and other USB-integrated devices, may not be fully supported due to security policy. If they are supported, only classical keyboard (HID) operation will be functional. It is recommended to use standard USB keyboards. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... - Page 12 • The console video ports are compatible with DVI-I displays as well as VGA and HDMI via compatible cables. Common access Card readers (F1DN104F-3 model only) • USB-compatible CAC or smart-card readers Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®...
-
Page 13: Unit Display Diagrams
SECTIONS Table of Contents unit display diagram, front View F1DN104F-3 model shown LED Indicator Tamper-Evident Seal Name Label Guide CAC Enable Switch Port Selector Color Chip (F1DN104F-3 model only) Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... - Page 14 Computer DVI ports Console USB Mouse Port Computer CAC USB Port Mounting Track (F1DN104F-3 model only) Console USB Keyboard Port Mounting Track PS/2 Console Keyboard Port DC Power Jack Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®...
-
Page 15: Specifications
VGA & HDMI monitors with Humidity 0-80% RH, non-condensing compatible cables dimensions (F1DN104E-3) 12.5 (W) x 6.4 (D) x 2.5 (H) in resolution support Up to 3840x2160 (F1DN104F-3) 12.5 (W) x 6.4 (D) x 2.5 (H) in Console Keyboard Input... -
Page 16: Installation
The enclosure of the Switch is designed for desktop or under-mount If the unit’s enclosure appears disrupted or if all channel-select LEDs configuration. An optional Mount Kit (Belkin part number F1D008) is flash continuously, please remove product from service immediately available. -
Page 17: Connection And Installation
This indicates the display EDID information has been captured and secured. If the display diagnostic LED remains blinking for longer than 10 seconds after power up, refer to the Troubleshooting section of this user manual. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... - Page 18 #1, #2 and then #3. The USB cable must be connected directly to a free USB port on the computer, with no USB hubs or other devices in between. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®...
-
Page 19: Color Code Chip Installation
Insert color chip Remove color chip with a standard paperclip Port name label The included network-name labels can be placed in the area underneath the port-selector buttons for port identification. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... -
Page 20: Operating The Kvm Switch
Please note that the default port at power-up is port 1. In case of a power failure or if the power is cycled, the Switch will default to port 1. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual... -
Page 21: Common Access Card (Cac) Configuration And Installation
When switching from a CAC- enabled port to a non-CAC-enabled port, the CAC connection will remain with the last previously selected port where the CAC was set to “Enable.” Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... -
Page 22: Frequently Asked Questions
Yes, the Switch requires a 12-volt DC, 1.5-Amp (minimum) power Please call Belkin Technical Support at (800) 282-2355 immediately. adapter in order to function properly. The KVM Switch’s circuitry may have been compromised. -
Page 23: Troubleshooting
• Try a different monitor. refresh-rate setting on your computer. • Lower the video resolution of your monitor. • Check that the video-cable length does not exceed 15 feet (4.6m). Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®... - Page 24 Due to the security of the KVM Switch and known exploitation of lock-state information for leakages, the LED status is not supported. Please refer to the operating system for verification of the lock-state information for CAPS, NUM, and Scroll Lock. Belkin Secure DVI-I KVM Dual-Head Switch with Audio User Manual ®...
-
Page 25: Information
Belkin International, Inc. (“Belkin”) warrants to the original purchaser of Vista, CA 90094, declare under our sole responsibility that the this Belkin product that the product shall be free of defects in design, products comply with Part 15 of the FCC Rules. Operation is subject assembly, material, or workmanship. - Page 26 Table of Contents what is not covered by this warranty? All above warranties are null and void if the Belkin product is not Your Belkin Customer Service Representative will then instruct provided to Belkin for inspection upon Belkin’s request at the sole...
- Page 27 AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING their place of purchase, contact Belkin on the toll-free number above OUT OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF or see the claim procedure provided with this product. The purchaser ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
- Page 28 SECTIONS Table of Contents reporting belkin Product security Vulnerability If you are aware of potential security vulnerability with any Belkin Government product, we encourage you to contact us immediately at the following email address: gov_security@belkin .com or our technical support line at: 1-800-282-2355 After your communication is received, Belkin Government personnel will contact you to follow up.
- Page 29 © 2015 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac OS is a trademark of Apple Inc., registered in the U.S. and other countries.
