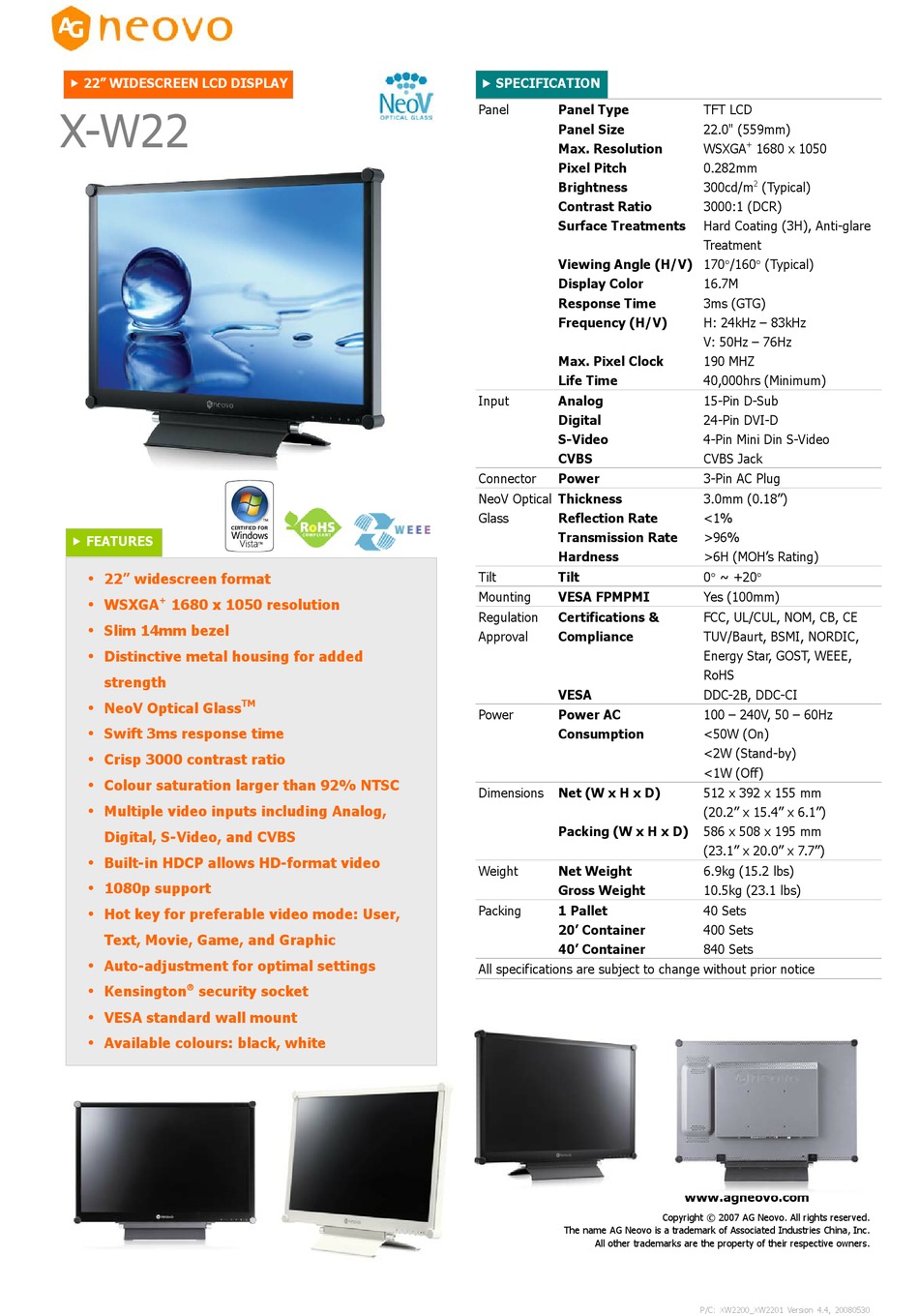

AG Neovo X-W22 Specifications

22" WIDESCREEN LCD DISPLAY
X-W22
FEATURES
22" widescreen format
+
WSXGA 1680 x 1050 resolution
Slim 14mm bezel
Distinctive metal housing for added
strength
NeoV Optical Glass
Swift 3ms response time
Crisp 3000 contrast ratio
Colour saturation larger than 92% NTSC
Multiple video inputs including Analog,
Digital, S-Video, and CVBS
Built-in HDCP allows HD-format video
1080p support
Hot key for preferable video mode: User,
Text, Movie, Game, and Graphic
Auto-adjustment for optimal settings

Kensington security socket
VESA standard wall mount
Available colours: black, white
TM
SPECIFICATION
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Surface Treatments
Viewing Angle (H/V) 170°/160° (Typical)
Display Color
Response Time
Frequency (H/V)
Max. Pixel Clock
Life Time
Input Analog
Digital
S-Video
CVBS
Connector Power
NeoV Optical Thickness
Glass Reflection Rate
Transmission Rate
Hardness
Tilt Tilt
Mounting VESA FPMPMI
Regulation Certifications &
Approval Compliance
VESA
Power Power AC
Consumption
Dimensions Net (W x H x D)
Packing (W x H x D)
Weight Net Weight
Gross Weight
Packing 1 Pallet
20' Container
40' Container
All specifications are subject to change without prior notice
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
22.0" (559mm)
+
WSXGA 1680 x 1050
0.282mm
300cd/m 2 (Typical)
3000:1 (DCR)
Hard Coating (3H), Anti-glare
Treatment
16.7M
3ms (GTG)
H: 24kHz – 83kHz
V: 50Hz – 76Hz
190 MHZ
40,000hrs (Minimum)
15-Pin D-Sub
24-Pin DVI-D
4-Pin Mini Din S-Video
CVBS Jack
3-Pin AC Plug
3.0mm (0.18")
<1%
>96%
>6H (MOH's Rating)
0° ~ +20°
Yes (100mm)
FCC, UL/CUL, NOM, CB, CE
TUV/Baurt, BSMI, NORDIC,
Energy Star, GOST, WEEE,
RoHS
DDC-2B, DDC-CI
100 – 240V, 50 – 60Hz
<50W (On)
<2W (Stand-by)
<1W (Off)
512 x 392 x 155 mm
(20.2" x 15.4" x 6.1")
586 x 508 x 195 mm
(23.1" x 20.0" x 7.7")
6.9kg (15.2 lbs)
10.5kg (23.1 lbs)
40 Sets
400 Sets
840 Sets
www.agneovo.com
Copyright © 2007 AG Neovo. All rights reserved.
P/C: XW2200_XW2201 Version 4.4, 20080530
