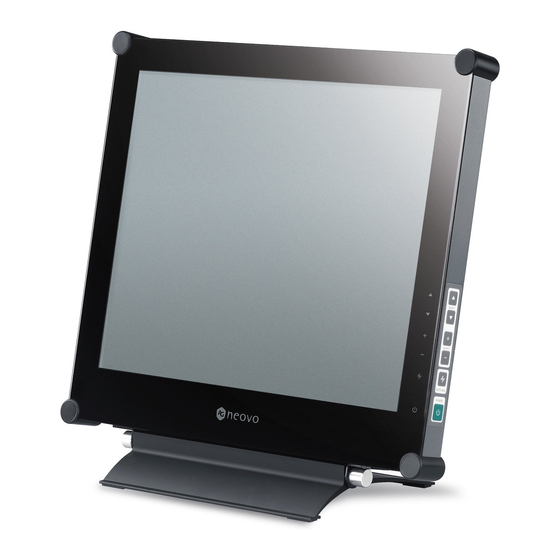

X-17P LCD Display
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-17P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AG Neovo X-17P

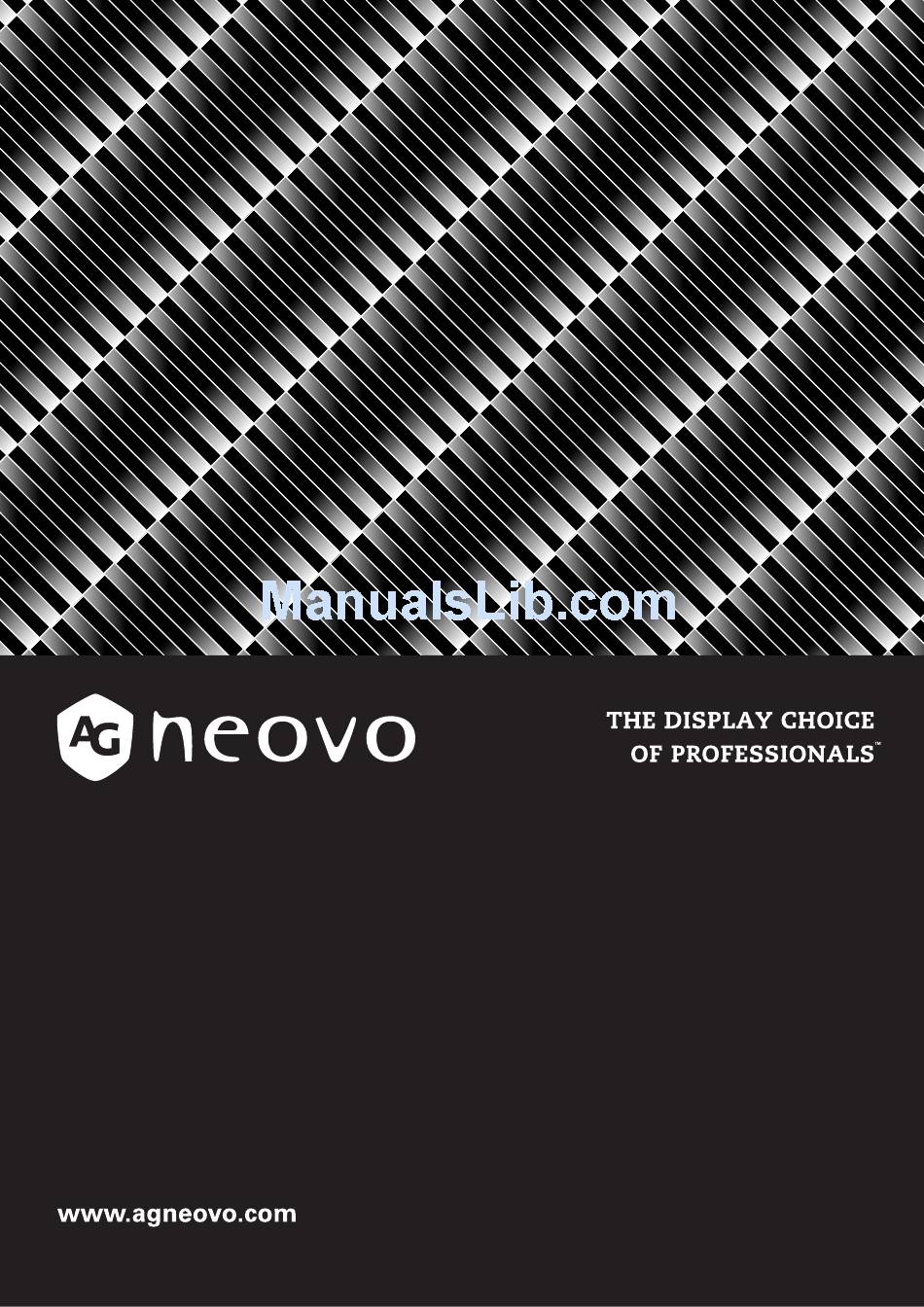

  • Page 1 X-17P LCD Display User Manual...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Information ......................4 FCC Declaimers ............................4 WEEE ............................... 5 Hg ................................5 Precautions ........................6 Notice ............................... 6 Cautions When Setting Up ........................6 Cautions When Using ..........................7 Cleaning and Maintenance ........................7 Notice for the LCD Display ........................8 Chapter 1: Product Description ..................9 1.1 Package Contents ..........................
  • Page 3 TABLE OF CONTENTS Chapter 5: Adjusting the Settings ...................27 5.1 Brightness Setting ..........................27 5.2 Colour Setting ............................. 28 5.3 Image Setting (VGA only) ........................29 5.4 Image Setting (Video signals) ......................30 5.5 PIP Setting ............................32 5.6 OSD Setting ............................34 5.7 Audio Setting ............................
  • Page 4: Safety Information

    Safety Information SAFETY INFORMATION This FCC Class-B compliant digital device complies with the Interference-Causing Equipment Regulations of Canada. FCC Declaimers This device complies with Section 15 of the FCC listing. The operation procedures must meet the following conditions: (1) the device must not cause any damaging interference; and (2) this device must accept any received interference, including any unpredictable interference that may possibly occur.
  • Page 5: Weee

    SAFETY INFORMATION WEEE Information for users applicable in European Union countries. The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources.
  • Page 6: Precautions

    Precautions PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •...
  • Page 7: Cautions When Using

    AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display experience.
  • Page 8: Notice For The Lcd Display

    PRECAUTIONS Notice for the LCD Display In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time.
  • Page 9: Chapter 1: Product Description

    Chapter 1: Product Description CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. LCD Display User manual Warranty card Power cord VGA cable Power adapter...
  • Page 10: Wall Mounting Installation Preparation

    ♦ Use only the 75 x 75 mm and LCD display. 100 x 100 mm wall mount kit recommended by AG Neovo. Detach the base stand. ♦ Secure the LCD display on a solid wall strong enough to bear...
  • Page 11: Lcd Display Overview

    PRODUCT DESCRIPTION 1.3 LCD Display Overview Keypad 1.3.1 Front View and Keypad Buttons INPUT SELECT MENU SELECT SWAP/ ROTATE DOWN AUTO ADJ. POWER/ Display screen LEFT The LCD display screen is protected by • Press to decrease the volume. NeoV Optical Glass.
  • Page 12: Rear View

    PRODUCT DESCRIPTION 1.3.2 Rear View S-VIDEO Video DC IN D-SUB AUDIO IN DC power input S-Video connector Use to connect the power cord. Use to connect AV cables for the S-Video signal. DVI connector COMPOSITE Video input connector Use to connect a PC using DVI cable Use to connect a composite cable for for digital input signal.
  • Page 13: Chapter 2: Making Connections

    Chapter 2: Making Connections CHAPTER 2: MAKING CONNECTIONS 2.1 Connecting the Power Connect the power cord to the power adapter. Connect the power adapter to the DC power input at the rear of the LCD display. Connect the power cord plug to a power outlet or a power supply. DC IN Caution: ♦...
  • Page 14: Connecting Input Source Signals

    MAKING CONNECTIONS 2.2 Connecting Input Source Signals 2.2.1 Connecting a Computer Using VGA Cables Connect one end of a D-sub cable to the VGA connector of the LCD display and the other end to the D-sub connector of the computer. D-SUB Using DVI Cables Connect one end of a DVI cable to the DVI connector of the LCD display and the other end to the DVI...
  • Page 15: Connecting An Audio Device

    MAKING CONNECTIONS Connecting an Audio Device Connect one end of an audio cable to the audio port at the rear of the LCD display and the other end to the audio out port of the computer. AUDIO IN 2.2.2 Connecting a Camera or Video Device Using CVBS Cables Connect one end of a CVBS cable to the COMPOSITE connector of the...
  • Page 16: Using S-Video Cables

    MAKING CONNECTIONS Using S-Video Cables Connect one end of an S-Video cable to the S-VIDEO connector of the LCD display and the other end to the S-VIDEO connector of your device. S-VIDEO For audio input, connect an RCA cable to the audio in connector of the LCD display and the audio out connector of your device.
  • Page 17: Chapter 3: Using The Lcd Display

    Chapter 3: Using the LCD Display CHAPTER 3: USING THE LCD DISPLAY 3.1 Turning on the Power Plug the power cord to a power outlet or power supply. Note: Touch the POWER button to turn the ♦ The LCD display still consumes LCD display on.
  • Page 18: Adjusting The Volume

    USING THE LCD DISPLAY 3.3 Adjusting the Volume Touch either the buttons to call out the volume bar. Touch the button to increase volume. Touch the button to decrease volume. To mute the audio, set the volume to 0. VOLUME buttons 3.4 Locking the OSD Menu Lock the OSD menu to protect the LCD display from unauthorised users or from accidentally pressing the keypad.
  • Page 19: Using Picture-In-Picture (Pip)

    USING THE LCD DISPLAY 3.5 Using Picture-in-Picture (PIP) The Picture-in-Picture (PIP) feature allows viewing of more than one input source signal on the LCD display. 3.5.1 PIP Options Info: ♦ PIP On: The sub source signal Touch the button repeatedly to enable and scroll among the PIP is displayed within the main options.
  • Page 20: Pip Swap

    USING THE LCD DISPLAY 3.5.2 PIP Swap The main and the sub source signals set in PIP Setting can be easily swapped using the keypad. Note: ♦ PIP Swap can only be executed if PIP is enabled, see page 32. Main source Sub source Touch the...
  • Page 21: Using Auto Adjustment Function

    USING THE LCD DISPLAY 3.7 Using Auto Adjustment Function Auto Adjustment function automatically tunes the LCD display to its Note: optimal setting, including horizontal position, vertical position, clock, ♦ Auto Adjustment function is and phase. available only during VGA input Touch the button to perform auto adjustment.
  • Page 22: Chapter 4: On Screen Display Menu

    Chapter 4: On Screen Display Menu CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Operation Display the main menu screen. Touch 1 2 8 0 x 1 0 2 4 7 5 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R...
  • Page 23 ON SCREEN DISPLAY MENU Operation Select the submenu item. Touch the buttons. 0 2 4 7 5 H z B R I G H T N E S S T N E S S C O N T R A S T S E T T I N G B L A C K L E V E L...
  • Page 24: Osd Menu Tree

    ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree 1 2 8 0 x 1 0 2 4 7 5 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R S E T T I N G...
  • Page 25 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks Image Setting During Video input signal: See page 30. • Sharpness • Saturation • Tint • 3D Comb Filter • Noise Reduction • Aspect Ratio • H. Zoom • V. Zoom • H.
  • Page 26 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 10. Language Select the OSD language: EN / FR / DE / ES / IT / PY / RO / PL / CS / NL / TC / SC 11. Information Displays settings information such as Input, Resolution, Horizontal and Vertical Frequency, Time mode, and Firmware version.
  • Page 27: Chapter 5: Adjusting The Settings

    Chapter 5: Adjusting the Settings CHAPTER 5: ADJUSTING THE LCD DISPLAY 5.1 Brightness Setting 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 7 5 H z B R I G H T N E S S B R I G H T N E S S 2.
  • Page 28: Colour Setting

    ADJUSTING THE LCD DISPLAY 5.2 Colour Setting 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 7 5 H z C O L O U R T E M P . 6 5 0 0 K B R I G H T N E S S 2.
  • Page 29: Image Setting (Vga Only)

    ADJUSTING THE LCD DISPLAY 5.3 Image Setting (VGA only) Note: During DVI input source signal, Image Setting is disabled and grayed out. 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 7 5 H z S H A R P N E S S B R I G H T N E S S 2.
  • Page 30: Image Setting (Video Signals)

    ADJUSTING THE LCD DISPLAY 5.4 Image Setting (Video signals) 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 7 5 H z S H A R P N E S S B R I G H T N E S S 2.
  • Page 31 ADJUSTING THE LCD DISPLAY Range / Item Function Operation Value Overscan Adjusts the aspect ratio of the screen Touch the buttons to Underscan image. select the value. Native Aspect Ratio can be set to: Aspect Ration • OVERSCAN - The aspect ratio increases by 5%. •...
  • Page 32: Pip Setting

    ADJUSTING THE LCD DISPLAY 5.5 PIP Setting 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 7 5 H z P I P O F F P I P P A P B R I G H T N E S S 2.
  • Page 33 ADJUSTING THE LCD DISPLAY Note: Any input signal may be set as the main or the sub source signal. However, some input signals are not supported to be paired together as the main and the sub source signals. Refer to the following table for compatibility options: Main / Sub CVBS S-VIDEO...
  • Page 34: Osd Setting

    ADJUSTING THE LCD DISPLAY 5.6 OSD Setting 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 7 5 H z T R A N S P A R E N C Y B R I G H T N E S S 2.
  • Page 35: Audio Setting

    ADJUSTING THE LCD DISPLAY 5.7 Audio Setting 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 7 5 H z V O L U M E B R I G H T N E S S 2.
  • Page 36: Other Setting

    ADJUSTING THE LCD DISPLAY 5.8 Other Setting 1 2 8 0 x 1 0 2 4 7 5 H z 1. Touch to call out the OSD window. P O W E R S A V I N G O F F B R I G H T N E S S 2.
  • Page 37 ADJUSTING THE LCD DISPLAY Range / Item Function Operation Value Activates DCR. This feature provides automatic adjustment of picture brightness and contrast at Touch the buttons to select (Dynamic high speed and dynamic contrast the value. Contrast Ratio) range, such as when watching movies.
  • Page 38: Auto Brightness

    ADJUSTING THE LCD DISPLAY 5.9 Auto Brightness 5.9.1 EcoSmart Sensor With the built-in EcoSmart sensor, users can enable the Auto Brightness feature to automatically adjust the LCD screen brightness according to the ambient light. This feature comforts the eyes and helps optimise energy efficiency.
  • Page 39: Input Select

    ADJUSTING THE LCD DISPLAY 5.10 Input Select 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 7 5 H z V G A P R E S S B R I G H T N E S S 2.
  • Page 40: Chapter 6: Appendix

    Chapter 6: Appendix CHAPTER 6: APPENDIX 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the the graphics card of the computer refresh rate of the graphics I N P U T S I G N A L O U T O F R A N G E is set too high.
  • Page 41: Troubleshooting

    APPENDIX 6.2 Troubleshooting Problem Possible Cause and Solution No picture. • Check if the LCD display is turned ON. • Check if the power cord is properly connected to the LCD display. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •...
  • Page 42: Transporting The Lcd Display

    APPENDIX 6.3 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging carton. Place the two foam cushions on each side of the LCD display for protection. Place the LCD display down in the box. Put all other contents on the designated area (if necessary).
  • Page 43: Chapter 7: Specifications

    Chapter 7: Specifications CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications X-17P Panel Panel Size 17” Max. Resolution SXGA 1280 x 1024 Frequency (H/V) H: 24 kHz - 82 kHz V: 50 Hz - 76 Hz @ 1280x1024 / 75Hz Power Power Type...
  • Page 44: Display Dimensions

    SPECIFICATIONS 7.2 Display Dimensions 278mm 69.5mm 37mm 100mm 409.2mm 361.7mm 100mm 75mm 75mm 172mm 240mm...
