Table of Contents Precautions................................2 Warning on installation...........................2 Warning on power connection......................2 Warning on tilt ............................2 Warning on Maintenance ........................3 Warning on transportation ........................3 Package Contents ............................4 Identify the Parts and Controls ...........................5 Setup ................................7 Customizing Your Monitor ..........................10 Adjusting Your LCD Panel ........................ -
Page 3: Precautions
Precautions Warning on installation Do not cover or block the ventilation holes in the case. Do not install the monitor near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock. Optional Video adaptor installation Turn off the power switch and unplug the monitor before installation to avoid electric shock or damage. -
Page 4: Warning On Maintenance
Warning on Maintenance Clean the cabinet, glass, and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzene. Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a pen or screwdriver. -
Page 5: Package Contents
Package Contents Before using this monitor, check the following items are included in your carton box: Monitor (*1) Power adapter (*1) Power cord (*1) D-sub 15-pin signal cable (*1) Digital DVI signal cable (*1) (Optional) S- Video cable (*1,) (Optional) CVBS cable (*1) Floppy/CD-ROM (containing Windows information file and user’s manual) -
Page 6: Identify The Parts And Controls

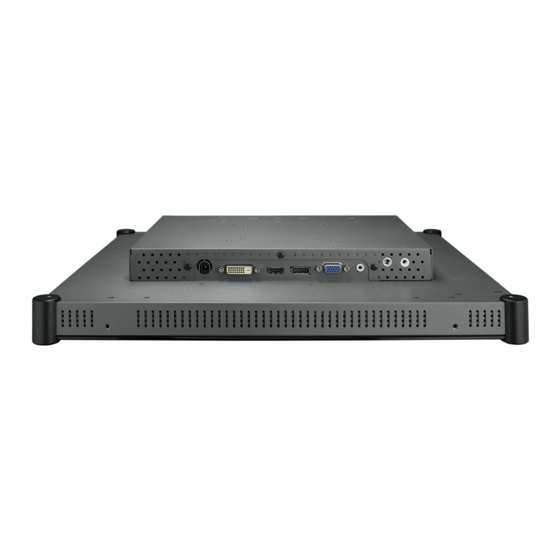

Identify the Parts and Controls Side view Power switch Turns the monitor on or off. AUTO button Adjust the picture position and performance automatically. You are recommended to press the button the first time you use the monitor or every time you change the resolution and/or refresh rate of the input signal. UP button Activates the On-Screen Display menu. - Page 7 REAL DC +12V Power inlet Provides +12V DC power to the monitor. VGA-In D-sub 15-pin connector for VGA signal. S-VIDEO-In (Optional) Connector for S-Video signal. (Optional) CVBS-In Connector for CVBS signal. Digital DVI-D connector for digital signal input...
-
Page 8: Setup
Setup Please follow the steps one by one to setup your monitor. Split the dust-proof plastic sheet Split the dust-proof plastic sheet from the screen surface of monitor. Connect the monitor to the computer (if you are using a video source, please skip this step.) There are two kinds of signal formats that are digital and analog. - Page 9 Connect the monitor to the video source (DVD, VCD, VCR, etc.) (If you are using a (Optional) computer, please skip this step.) This monitor can support both S-Video and CVBS jack. Depending on the signal output port of your video source, you may need to use different signal cable and to connect into different port of the monitor.
- Page 10 Use 1280x1024 resolution and press (AUTO) button for best performance. (If you are not using a computer, please skip this step.) Before starting to work, you are recommended to adjust the resolution of video signal from your computer to 1280x1024 at 60Hz for best picture performance.
-
Page 11: Customizing Your Monitor
Customizing Your Monitor Adjusting Your LCD Panel In the OSD menu, you will find all kinds of features to help you adjust your LCD panel to the optimal performance. Important! Though manual adjustment of the LCD panel is available, we strongly recommend you to use the auto adjustment function of the panel. -
Page 12: Osd Menus
OSD Menus VGA-Input Brightness Adjustment Contrast Adjustment Horizontal Position Adjustment Vertical Position Adjustment... - Page 13 Sharpness Adjustment OSD Transparency Adjustment Phase Adjustment Clock Adjustment...
- Page 14 Color Temperature Selection P.S. The color temperature of RGB can be adjusted in case of entering “ USER ”sub menu. Horizontal OSD Position Adjustment Vertical OSD Position Adjustment Graphic/Text Selection P.S. Suggest the user select“ Text ”sub menu in case of the resolution being 640×350 or 640×400.
- Page 15 Recall Selection Suggest the user to use“ Recall ”icon, if the user doesn’t satisfy with the P.S. adjustment. Language Selection Input Select Selection Exit Selection...
-
Page 16: Dvi-Input
DVI-Input Brightness Adjustment Contrast Adjustment OSD Transparency Adjustment Color Temperature Selection P.S. The color temperature of RGB can be adjusted in case of entering “ USER ”sub menu. - Page 17 Horizontal OSD Position Adjustment Vertical OSD Position Adjustment Recall Selection Suggest the user to use“ Recall ”icon, if the user doesn’t satisfy with the P.S. adjustment. Language Selection...
-
Page 18: Cvbs Input / S-Video Input
Input Select Selection Exit Selection CVBS Input / S-VIDEO Input Brightness Adjustment Contrast Adjustment... - Page 19 Color Adjustment Hue Adjustment Sharpness Adjustment OSD Transparency Adjustment...
- Page 20 Color Temperature Selection P.S. The color temperature of RGB can be adjusted in case of entering “ USER ”sub menu. Horizontal OSD Position Adjustment Vertical OSD Position Adjustment Recall Selection Suggest the user to use“ Recall ”icon, if the user doesn’t satisfy with the P.S.
- Page 21 Language Selection Input Select Selection Exit Selection...
-
Page 22: Warning Messages And Troubleshooting
Warning Messages and Troubleshooting Warning Messages If the message appears on the screen Check the items CAN NOT DISPLAY THIS INPUT SIGNAL The input signal is not acceptable by the monitor. • Please check the video resolution and frequency range is within that specified for the monitor. •... - Page 23 • Check that the S-Video signal cable is connected properly to S-VIDEO port at the rear of monitor. • Check that the S-Video signal cable is connected properly to the video source. • Ensure that no pins are bent or pushed in the connectors of S-Video signal cable.
-
Page 24: Troubleshooting
Troubleshooting Symptom Check Items No picture Check that the power switch of monitor is Power LED is off. turned on. Check that the power adapter is properly connected to the monitor. Check that the power cord is properly connected to the power adapter. •... -
Page 25: Technical Features And Specifications
Technical Features and Specifications Power Saving Function This monitor meets the power-saving guidelines set by VESA and Energy Star, as well as the more stringent NUTEK. If the monitor is connected to a computer that is VESA DPMS (Display Power Management Signaling) compliant, the monitor will automatically reduce power consumption in the three stages as shown below. -
Page 26: Preset And User Modes
Preset and User Modes This monitor has factory preset modes for the 20 most popular industrial standards. Another 20 user modes are also available to store user adjustments. Resolution Horizontal Vertical Mode Frequency Frequency 640x350 31.5KHz 70Hz IBM VGA 640x480 31.5KHz 60Hz IBM VGA... -
Page 27: Regulation
Regulation FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 28: Tco'95
TCO'95 Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. - Page 29 Current information regarding TCO'95 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ TCO’95 is a co-operative project between TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).
