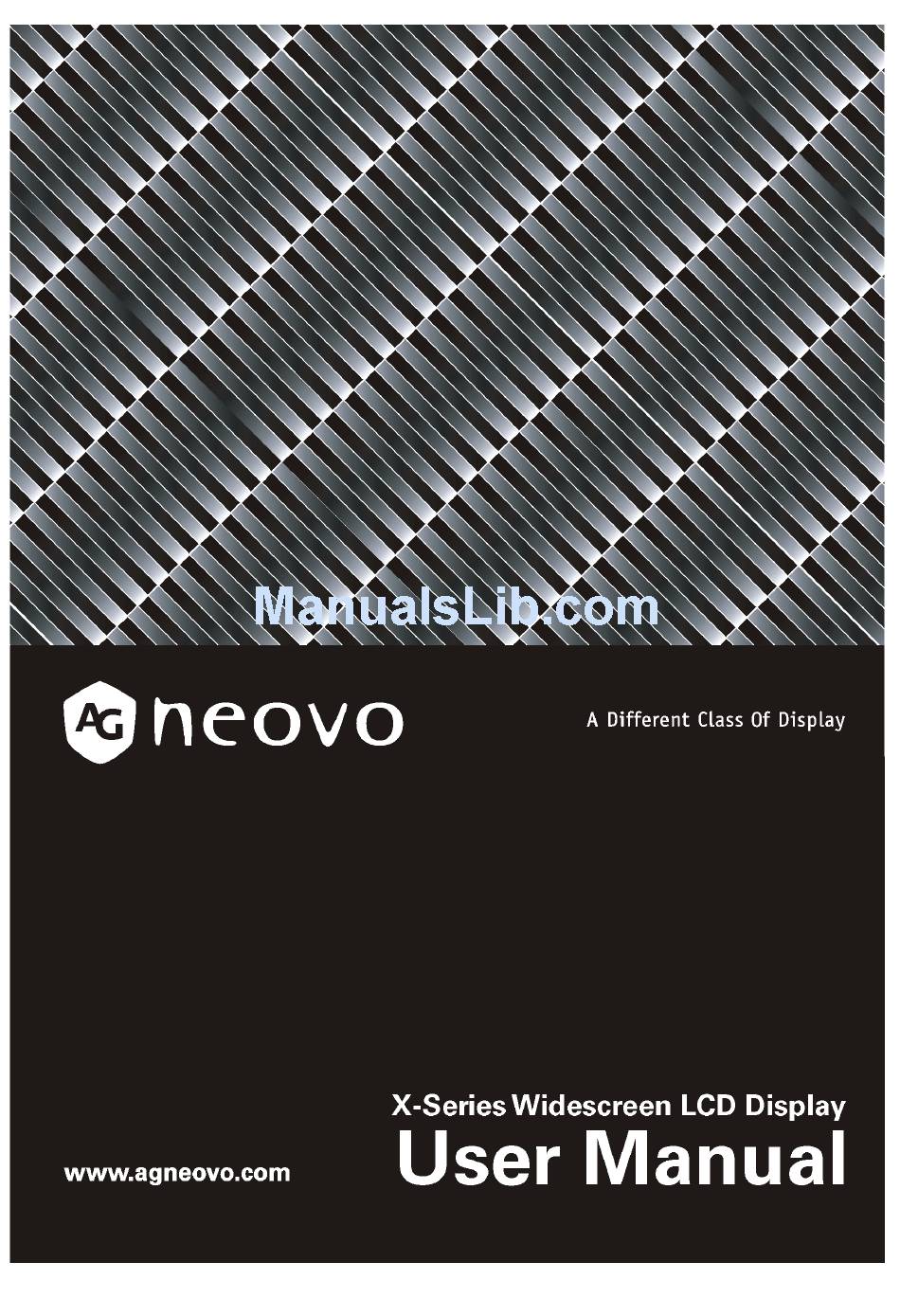

AG Neovo X-W19 User Manual

X series widescreen lcd display
Hide thumbs Also See for X-W19:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-W19 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AG Neovo X-W19

Summary of Contents for AG Neovo X-W19

  • Page 2: Table Of Contents

    Table of Contents Precautions........................2 Warning on installation ..................... 2 Warning on power connection.................. 2 Warning on tilt ......................3 Warning on Maintenance ..................3 Warning on transportation ..................3 Package Contents....................4 Identify the Parts and Controls ................. 5 Setup........................

  • Page 3: Precautions

    Precautions Warning on installation Do not cover or block the ventilation holes in the case. Do not install the monitor near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock. Optional Video adaptor installation Turn off the power switch and unplug the monitor before installation to avoid electric shock or damage.

  • Page 4: Warning On Tilt

    Use the monitor’s tilt capability to adjust its vertical orientation to an appropriate position. Grasp the top corners of the monitor with both hands and tilt to the desired angle. X-W22 / X-W19 Warning on Maintenance Clean the cabinet, glass, and controls with a soft cloth lightly moistened with a mild detergent solution.

  • Page 5: Package Contents

    Package Contents Before using this monitor, check the following items are included in your carton box: Monitor (*1) Power adapter (*1) Power cord (*1) D-sub 15-pin signal cable (*1) Digital DVI signal cable (*1) CD-ROM (*1) Quick Guide (*1) S- Video cable (*1) (Optional) CVBS cable (*1) (Optional)

  • Page 6: Identify The Parts And Controls

    Identify the Parts and Controls X-W22 X-W19 DC +12V Power inlet Provides +12V DC power to the monitor. Digital DVI-D connector for digital signal input VGA-In D-sub 15-pin connector for VGA signal. CVBS-In (Optional) Connector for CVBS signal. S-VIDEO-In (Optional)
  • Page 7 RIGHT button Activates the On-Screen Display menu. Move the selected item upward while the On-Screen Display sub-menu appears. LEFT button Move the selected item downward while the On-Screen Display sub-menu appears. Hot Key Input Select Hot key Pressing buttons at the same time for 5 seconds can switch between auto and manual input select.
  • Page 8 Press button for 3 seconds to adjust the picture position and performance automatically. You are recommended to press the button the first time you use the monitor or every time you change the resolution and/or refresh rate of the input signal.

  • Page 9: Setup

    Setup Please follow the following instructions to setup monitor. Step 1: Remove all packing materials and wrapping from the monitor and then tear down the plastic dust cover from the screen surface. Step 2: With the computer or video equipment turned off, connect the signal cable. Connecting to an IBM or IBM compatible computer Connecting to a video equipment with digital source Connecting to a video equipment with S-Video connector (Optional)

  • Page 10: Software Configuration

    AUTO button. The monitor will optimizes the display automatically. For X-W19 LCD monitor, it will have the best performance at resolution 1440 x 900. Ensure that your computer display is set at 1440 x 900 pixels and 60Hz. Press the AUTO button.

  • Page 11: Customizing Your Monitor

    Customizing Your Monitor Adjusting Your LCD Panel In the OSD menu, you will find all kinds of features to help you adjust your LCD panel to the optimal performance. User Mode: To allow preferable viewing images for different tasks, users are able to adjust each setting manually in User mode.
  • Page 12 In case of using video adapter and selecting video or S- video, the OSD menu is shown below. Push to move the highlight bar to the desired icon. In case of above Sub-function selection, push to confirm the desired selection. In case of no OSD menu, the icon can do auto adjustment function.

  • Page 13: Osd Menus

    Vertical Position Adjustment Sharpness Adjustment OSD Transparency Adjustment Important! Sharpness adjustment is not available when: 1. the resolution is set as 1440 x 900 (X-W19) or 1680 x 1050 (X-W22); or 2. the application is in Text, Movie, Game, or Graphic mode.
  • Page 14 Phase Adjustment Clock Adjustment Color Temperature Selection Horizontal OSD Position Adjustment Vertical OSD Position Adjustment Tools Adjustment Video Mode selection Language Selection...
  • Page 15 Auto and Input Select Selection Exit Selection DVI-Input Important! When DVI-Input is selected, the following adjustments are not available: horizontal position adjustment, vertical position adjustment, sharpness, phase adjustment and clock adjustment. Brightness Adjustment Contrast Adjustment OSD Transparency Adjustment Color Temperature Selection...
  • Page 16 Horizontal OSD Position Adjustment Vertical OSD Position Adjustment Tools Selection Video Mode selection Language Selection Auto and Input Select Selection Exit Selection...
  • Page 17 CVBS Input / S-VIDEO Input (Optional) Brightness Adjustment Contrast Adjustment Color Adjustment Hue Adjustment Sharpness Adjustment OSD Transparency Adjustment Color Temperature Selection Horizontal Position Adjustment...
  • Page 18 Vertical Position Adjustment Tools Selection Language Selection Auto and Input Select Selection Exit Selection...

  • Page 19: Warning Messages And Troubleshooting

    Warning Messages and Troubleshooting Warning Messages If the message appears on the Check the items screen CAN NOT DISPLAY THIS INPUT The input signal is not acceptable by the monitor. • SIGNAL Please check the video resolution and frequency range is within that specified for the monitor. •...

  • Page 20: Troubleshooting

    Check if the signal cable is correctly connected. • The texts are not solid Change the resolution of the video signal to 1680*1050 (for X-W22) or 1440 * 900 (for X-W19). • Press button for 3 seconds to run the automatic adjustment.

  • Page 21: Technical Specifications

    Technical Specifications Specifications X-W22 X-W19 Electrical characteristics Screen size 22.0” (55.868 cm) diagonal 19.05” (48.14 cm) diagonal Pixel format 1680 x 1050 vertical stripe 1440 x 900 vertical stripe Analogue Horizontal frequency 24kHz – 83kHz 24kHz – 80kHz Vertical frequency 50Hz –...

  • Page 22: Regulation

    Regulation FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 23: Tco'06

    TCO’06 X-W19 is honored to achieve the leading international quality standard -TCO’06 certification. Congratulations! The product you have just purchased carries the TCO’06 Media Displays label. This means that your display is designed and manufactured according to some of the strictest performance and environmental criteria in the world.

  • Page 24: It Equipment Recycling Information

    We AG Neovo at are very conscious of the environmental forces that impose on our business and strive to identify and provide the best working products to reduce the environmental impact of our products.

This manual is also suitable for:

X-w22
