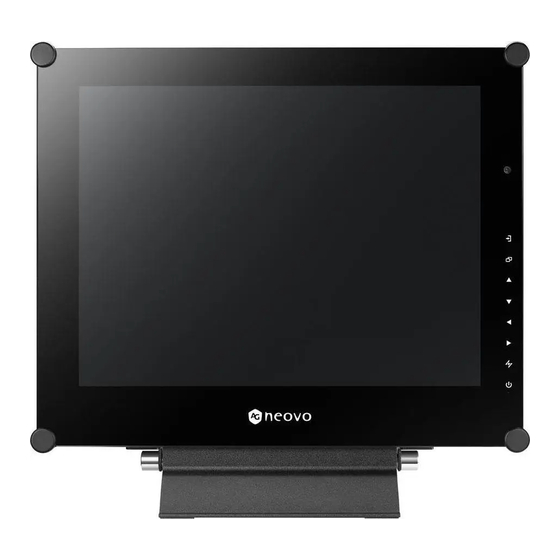

X-15E, X-17E & X-19E LED-Backlit Display
User Manual
displays.agneovo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-19E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AG Neovo X-19E

  • Page 1 X-15E, X-17E & X-19E LED-Backlit Display User Manual displays.agneovo.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Information Federal Communications Commission (FCC) Notice (U.S. Only) ............4 WEEE ............................... 4 Precautions Notice ............................... 5 Cautions When Setting Up ........................5 Cautions When Using ..........................6 Cleaning and Maintenance ........................6 Notice for the LCD Display ........................7 Chapter 1: Product Description 1.1 Package Contents ..........................
  • Page 3 6.1 Warning Messages ..........................41 6.2 Troubleshooting ..........................42 6.3 Transporting the LCD Display ......................44 Chapter 7: Specifications 7.1 Display Specifications ........................45 7.2 Display Dimensions ..........................46 7.2.1 X-15E Dimensions........................46 7.2.2 X-17E Dimensions........................46 7.2.3 X-19E Dimensions........................47...
  • Page 4: Safety Information

    SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) X-19E This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5: Precautions

    PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •...
  • Page 6: Cautions When Using

    AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display experience.
  • Page 7: Notice For The Lcd Display

    PRECAUTIONS Notice for the LCD Display In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time.
  • Page 8: Chapter 1: Product Description

    Must use only the supplied power adapter: ♦ Lite-on Technology Corporation X-15E, X-17E & X-19E Model no.: PA-1041-81 Quick Start Guide Rating: 12V/3.33A X-15E, X-17E & X-19E LED-Backlit Display X-15E/X-17E/X-19E_Quick Guide_V010 www.agneovo.com Power cord VGA cable Audio cable Warranty card Note: ♦...
  • Page 9: Wall Mounting Installation Preparation

    75mm display on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most 1.2.2 Removing the Base Stand pleasurable and fulfilling display experience.
  • Page 10: Lcd Display Overview

    PRODUCT DESCRIPTION 1.3 LCD Display Overview 1.3.1 Front View and Keypad Buttons Display screen LEFT The LCD display screen is protected by • Press to decrease the volume. NeoV Optical Glass. • During OSD menu selection, press to adjust the settings.
  • Page 11: Rear View

    PRODUCT DESCRIPTION 1.3.2 Rear View DC IN HDMI DisplayPort AUDIO IN DC power input DisplayPort connector Use to connect a PC or video device using a Use to connect the power adapter. displayport cable for digital input signal. DVI connector VGA connector Use to connect a PC using DVI cable for digital input signal.
  • Page 12: Chapter 2: Making Connections

    CHAPTER 2: MAKING CONNECTIONS 2.1 Connecting the Power Connect the power cord to the power adapter. Connect the power adapter to the DC power input at the rear of the LCD display. Connect the power cord plug to a power outlet or a power supply. DC IN Caution: ♦...
  • Page 13: Connecting Input Source Signals

    MAKING CONNECTIONS 2.2 Connecting Input Source Signals 2.2.1 Connecting a Computer Using VGA Cables Connect one end of a D-sub cable to the VGA connector of the LCD display and the other end to the D-sub connector of the computer. Using DVI Cables Connect one end of a DVI cable to the DVI connector of the LCD display and the other end to the DVI connector of the computer.
  • Page 14: Using Displayport Cables

    MAKING CONNECTIONS Using DisplayPort Cables Connect one end of a DisplayPort cable to the DisplayPort connector of the LCD display and the other end to the DisplayPort connector of the computer. DisplayPort Connecting an Audio Device Connect one end of an audio cable to the audio port at the rear of the LCD display and the other end to the audio out port of the computer.
  • Page 15: Connecting A Video Device

    MAKING CONNECTIONS 2.2.2 Connecting a Video Device Using HDMI Cables Connect one end of an HDMI cable to the HDMI connector of the LCD display and the other end to the HDMI connector of your device. HDMI...
  • Page 16: Chapter 3: Using The Lcd Display

    CHAPTER 3: USING THE LCD DISPLAY 3.1 Turning on the Power Plug the power cord to a power outlet or power supply. Note: Touch the POWER button to turn the ♦ The LCD display still consumes LCD display on. power as long as the power cord is connected to the power The LED indicator turns GREEN.
  • Page 17: Adjusting The Volume

    USING THE LCD DISPLAY 3.3 Adjusting the Volume Adjusting the Volume Touch either the buttons to call out the volume bar. Touch the button to increase volume. Touch the button to decrease volume. To mute the audio, set the volume to 0. VOLUME buttons 3.4 Locking the OSD Menu Lock the OSD menu to protect the LCD display from unauthorised users or from accidentally pressing the...
  • Page 18: Using Picture-In-Picture (Pip)

    USING THE LCD DISPLAY 3.5 Using Picture-in-Picture (PIP) The Picture-in-Picture (PIP) feature allows viewing of more than one input source signal on the LCD display. 3.5.1 PIP Options Touch the button repeatedly to enable and scroll among the PIP options. Options are as follows: •...
  • Page 19: Pip Swap

    USING THE LCD DISPLAY 3.5.2 PIP Swap The main and the sub source signals set in PIP Setting can be easily swapped using the keypad. Note: Sub source ♦ PIP Swap can only be executed Main source if PIP is enabled, see page 34. Touch the button to swap the main source and the sub source signals.
  • Page 20: Chapter 4: On Screen Display Menu

    CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Operation Display the main menu screen. Touch 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R...
  • Page 21 ON SCREEN DISPLAY MENU Operation Select the submenu item. Touch the button. 0 x 1 0 8 0 6 0 H z B R I G H T N E S S R I G H T N E S S C O N T R A S T O L O U R T E M P .
  • Page 22: Osd Menu Tree

    ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R T E M P .
  • Page 23 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 3. IMAGE SETTING • SHARPNESS See page 29. • SATURATION • TINT • GAMMA • COLOUR RANGE • NOISE REDUCTION • PICTURE MODE • H. POSITION • V. POSITION • PHASE • CLOCK 4.
  • Page 24 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 9. SYSTEM • POWER SAVING See page 38. • SOURCE DETECT • MODE • DDC/CI • DCR • BLUE SCREEN • SIGNAL INFO • HDMI CEC • LOGO • RECALL 10. ECO SMART •...
  • Page 25: Chapter 5: Adjusting The Lcd Display

    CHAPTER 5: ADJUSTING THE LCD DISPLAY 5.1 BRIGHTNESS 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S B R I G H T N E S S 2.
  • Page 26 ADJUSTING THE LCD DISPLAY Original Setting High Setting Low Setting BRIGHTNESS CONTRAST BLACK LEVEL...
  • Page 27: Colour Temp

    ADJUSTING THE LCD DISPLAY 5.2 COLOUR TEMP. 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z N E U T R A L W A R M B R I G H T N E S S 2.
  • Page 28: Image Setting

    ADJUSTING THE LCD DISPLAY 5.3 IMAGE SETTING 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z S H A R P N E S S B R I G H T N E S S 2.
  • Page 29 ADJUSTING THE LCD DISPLAY Item Function Operation Range Adjusts black and white levels for video. FULL Touch the button to LIMIT select the setting. Note: This menu option is only available if the input source is HDMI. Signal source from PC - PC signal at a full range (Grayscale 0-255) state: COLOUR RANGE Monitor OSD colour range: Full Monitor OSD colour range: Limit...
  • Page 30 ADJUSTING THE LCD DISPLAY Item Function Operation Range H. POSITION Moves the screen image to the left (Horizontal Position) or right. V. POSITION Moves the screen image up or down. (Vertical Position) Adjusts the phase timing to Touch the button to synchronise with the video signal.
  • Page 31: Aspect Ratio

    ADJUSTING THE LCD DISPLAY 5.4 ASPECT RATIO 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z A S P E C T R A T I O F U L L B R I G H T N E S S 2.
  • Page 32: Pip Setting

    ADJUSTING THE LCD DISPLAY 5.5 PIP SETTING 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z P I P O F F B R I G H T N E S S 2.
  • Page 33 ADJUSTING THE LCD DISPLAY Note: Any input signal may be set as the main or the sub source signal. However, some input signals are not supported to be paired together as the main and the sub source signals. Refer to the following table for compatibility options. Table 5.1 PIP Compatibility Table Main Source Input Source...
  • Page 34: Anti-Burn-In

    ADJUSTING THE LCD DISPLAY 5.6 ANTI-BURN-IN 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z E N A B L E O F F B R I G H T N E S S 2.
  • Page 35: Osd Setting

    ADJUSTING THE LCD DISPLAY 5.7 OSD SETTING 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z T R A N S P A R E N C Y B R I G H T N E S S 2.
  • Page 36: Audio Setting

    ADJUSTING THE LCD DISPLAY 5.8 AUDIO SETTING 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z V O L U M E B R I G H T N E S S 2.
  • Page 37: System

    ADJUSTING THE LCD DISPLAY 5.9 SYSTEM 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z P O W E R S A V I N G O F F B R I G H T N E S S 2.
  • Page 38 Note: This menu option is only available if the input source is HDMI. Enables or disables the logo feature. If the setting is set to ON, the AG Neovo LOGO logo is briefly displayed after the display is powered on.
  • Page 39: Eco Smart

    ADJUSTING THE LCD DISPLAY 5.10 ECO SMART With the built-in EcoSmart sensor, users can enable the Eco Smart feature to automatically adjust the LCD screen brightness according to the ambient light. This feature comforts the eyes and helps optimise energy efficiency.
  • Page 40: Input Select

    ADJUSTING THE LCD DISPLAY 5.11 INPUT SELECT 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z V G A D V I B R I G H T N E S S 2.
  • Page 41: Chapter 6: Appendix

    CHAPTER 6: APPENDIX 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the the graphics card of the computer refresh rate of the graphics I N P U T S I G N A L O U T O F R A N G E is set too high.
  • Page 42: Troubleshooting

    APPENDIX 6.2 Troubleshooting Problem Possible Cause and Solution No picture. • Check if the LCD display is turned ON. • Check if the power cord is properly connected to the LCD display. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •...
  • Page 43 APPENDIX Problem Possible Cause and Solution Mist formed inside the • This happens due to humid weather conditions. This is a normal glass surface. occurrence. The mist will disappear after a few days or as soon as the weather stabilizes. Faint shadows from a •...
  • Page 44: Transporting The Lcd Display

    APPENDIX 6.3 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging carton. Put all the accessories in the box (if necessary). Place the two foam cushions on each side of the LCD display for protection. Place the LCD display down in the box.
  • Page 45: Chapter 7: Specifications

    CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications X-15E X-17E X-19E Panel Panel Type LED-Backlit TFT LCD (VA LED-Backlit TFT LCD (TN LED-Backlit TFT LCD (TN Technology) Technology) Technology) Panel Size 15.0” 17.0” 19.0” Max. Resolution XGA 1024 x 768 SXGA 1280 x 1024...
  • Page 46: Display Dimensions

    SPECIFICATIONS 7.2 Display Dimensions 7.2.1 X-15E Dimensions 380(outline dimension) 53.5 306(opening dimension) (M4xL10) x8 44.8 282.4 44.8 179.4 7.2.2 X-17E Dimensions 64.5 409.4(outline dimension) 340(opening dimension) (M4xL10) x8...
  • Page 47: X-19E Dimensions

    SPECIFICATIONS 7.2.3 X-19E Dimensions 64.5 (outline dimension) 445.4 0-20° (opening dimension) 27.8 378.5 8x M4xL10 27.8 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2019 AG Neovo. All rights reserved. X19E00/X17E00/X15E00_UM_V012...
