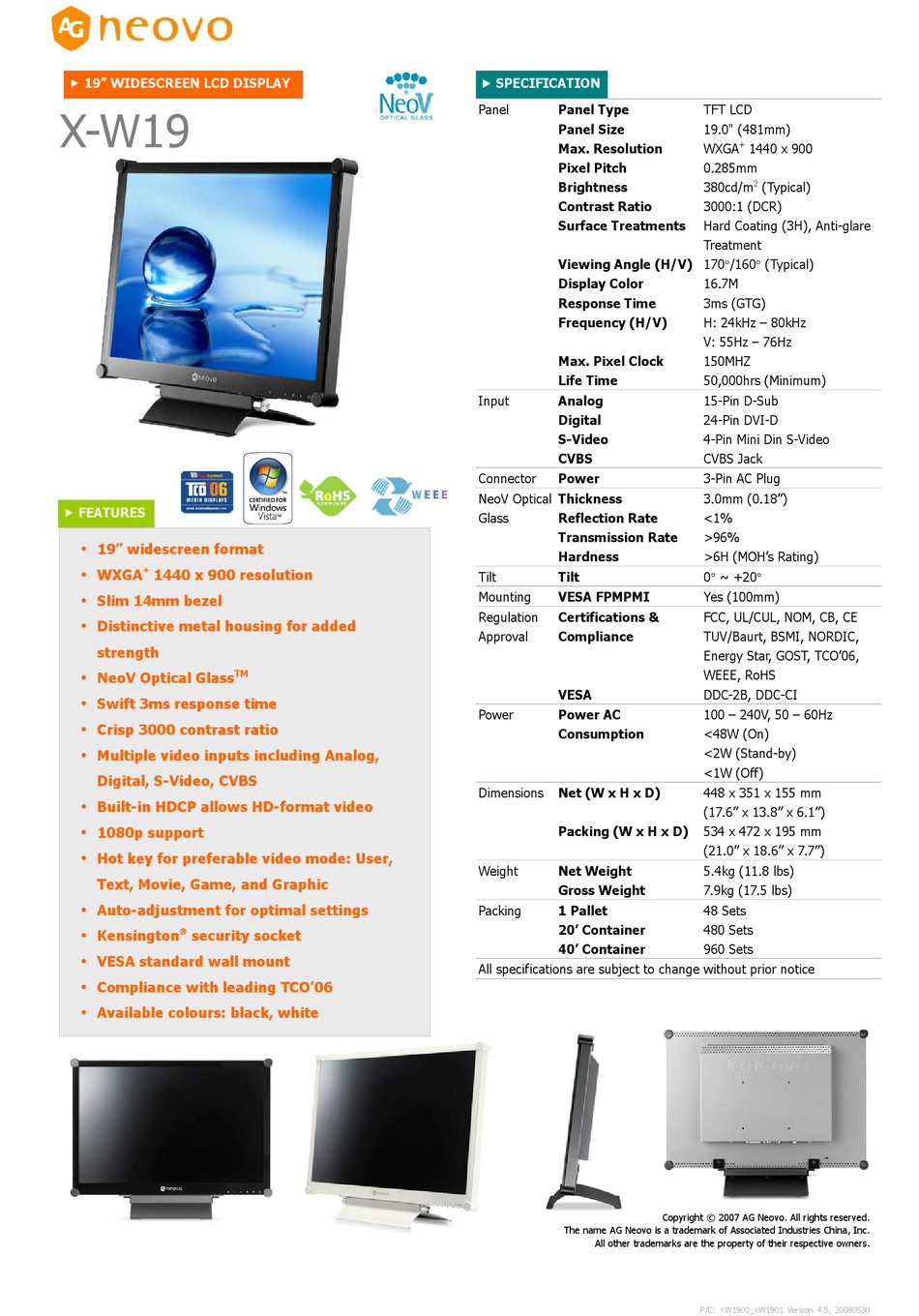

AG Neovo X-W19 Specifications

19" WIDESCREEN LCD DISPLAY
X-W19
FEATURES
19" widescreen format
+
WXGA 1440 x 900 resolution
Slim 14mm bezel
Distinctive metal housing for added
strength
TM
NeoV Optical Glass
Swift 3ms response time
Crisp 3000 contrast ratio
Multiple video inputs including Analog,
Digital, S-Video, CVBS
Built-in HDCP allows HD-format video
1080p support
Hot key for preferable video mode: User,
Text, Movie, Game, and Graphic
Auto-adjustment for optimal settings

Kensington security socket
VESA standard wall mount
Compliance with leading TCO'06
Available colours: black, white
SPECIFICATION
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Surface Treatments
Viewing Angle (H/V) 170°/160° (Typical)
Display Color
Response Time
Frequency (H/V)
Max. Pixel Clock
Life Time
Input Analog
Digital
S-Video
CVBS
Connector Power
NeoV Optical Thickness
Glass Reflection Rate
Transmission Rate
Hardness
Tilt Tilt
Mounting VESA FPMPMI
Regulation Certifications &
Approval Compliance
VESA
Power Power AC
Consumption
Dimensions Net (W x H x D)
Packing (W x H x D)
Weight Net Weight
Gross Weight
Packing 1 Pallet
20' Container
40' Container
All specifications are subject to change without prior notice
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
19.0" (481mm)
+
WXGA 1440 x 900
0.285mm
380cd/m 2 (Typical)
3000:1 (DCR)
Hard Coating (3H), Anti-glare
Treatment
16.7M
3ms (GTG)
H: 24kHz – 80kHz
V: 55Hz – 76Hz
150MHZ
50,000hrs (Minimum)
15-Pin D-Sub
24-Pin DVI-D
4-Pin Mini Din S-Video
CVBS Jack
3-Pin AC Plug
3.0mm (0.18")
<1%
>96%
>6H (MOH's Rating)
0° ~ +20°
Yes (100mm)
FCC, UL/CUL, NOM, CB, CE
TUV/Baurt, BSMI, NORDIC,
Energy Star, GOST, TCO'06,
WEEE, RoHS
DDC-2B, DDC-CI
100 – 240V, 50 – 60Hz
<48W (On)
<2W (Stand-by)
<1W (Off)
448 x 351 x 155 mm
(17.6" x 13.8" x 6.1")
534 x 472 x 195 mm
(21.0" x 18.6" x 7.7")
5.4kg (11.8 lbs)
7.9kg (17.5 lbs)
48 Sets
480 Sets
960 Sets
www.agneovo.com
Copyright © 2007 AG Neovo. All rights reserved.
P/C: XW1900_XW1901 Version 4.5, 20080530
