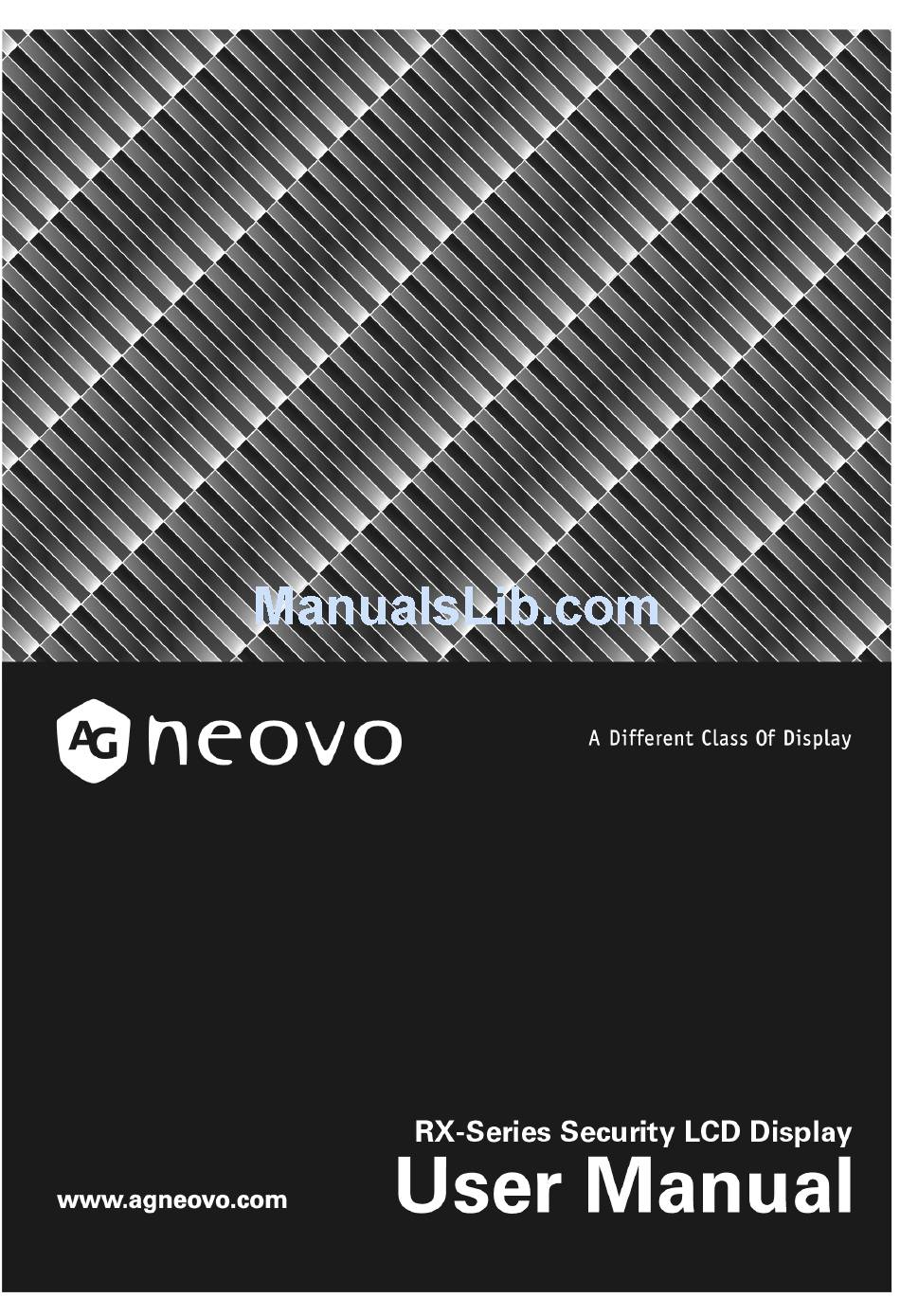

AG Neovo X-W19 User Manual
Rx series security lcd display
Hide thumbs
Also See for X-W19:
- User manual (24 pages) ,
- Specifications (2 pages) ,
- Brochure & specs (2 pages)
Table of Contents
Troubleshooting
Related Manuals for AG Neovo X-W19
Summary of Contents for AG Neovo X-W19
-
Page 2: Table Of Contents
Table of Contents Precautions ...2 Warning on Installation...2 Warning on Power Connection...2 Warning on Tilt ...3 Warning on Maintenance ...3 Warning on Transportation ...3 Package Contents ...4 Identify the Parts and Controls ...5 How to Use the On-Screen Display Menu...7 Setup...8 Software Configuration...9 Customizing Your Monitor ...10... -
Page 3: Precautions
Warning on Installation Do not cover or block the ventilation holes in the case. Do not install the monitor near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock. Optional Video adaptor installation Turn off the power switch and unplug the monitor before installation to avoid electric shock or damage. -
Page 4: Warning On Tilt
Warning on Tilt Use the monitor’s tilt capability to adjust its vertical orientation to an appropriate position. Grasp the top corners of the monitor with both hands and tilt to the desired angle. Warning on Maintenance Clean the cabinet, glass, and controls with a soft cloth lightly moistened with a mild detergent solution. -
Page 5: Package Contents
Package Contents Before using this monitor, check the following items are included in your carton box: Monitor (*1) Power adapter (*1) Power cord (*1) D-sub 15-pin signal cable (*1) Digital DVI signal cable (*1) BNC cable (*1) CD-ROM (*1) Quick Guide (*1) -
Page 6: Identify The Parts And Controls
RX-W22 RX-W19 DC 12V INPUT Provides +12V DC power to the monitor. DIGITAL DVI-D connector for digital signal input VGA INPUT D-sub 15-pin connector for VGA signal. VIDEO-IN / VIDEO-OUT BNC connector for Video signal. - Page 7 Power Switch Turn the monitor on or off LED Indicator Indicates the monitor’s operational mode; green for regular mode Right Button Activates the On-Screen Display menu. While the On-Screen Display menu appears, press item clockwise or onward Left Button While the On-Screen Display menu appears, press item counterclockwise or backward Use as the Input Select Hot Key* when the On-Screen Display menu is inactivated...
-
Page 8: How To Use The On-Screen Display Menu
Decrease Button When the On-Screen Display menu is activated, press the selected item When the On-Screen Display menu is activated, press adjustable value of the selected item Auto Button Optimal Settings (available only when D-Sub input is connected): Press performance automatically when D-Sub input is connected. You are recommended to press the button the first time you use the monitor or every time you change the resolution and/or refresh rate of the input signal. -
Page 9: Setup
Setup Please follow the following instructions to setup monitor. Step 1: Remove all packing materials and wrapping from the monitor and then tear down the plastic dust cover from the screen surface. Step 2: With the computer or video equipment turned off, connect the signal cable. Connecting to an IBM or IBM compatible computer Connecting to a video equipment with digital source Connecting to a video source with the BNC cable... -
Page 10: Software Configuration
You can find the Microsoft Windows data file (also called the driver program) on the included AG Neovo CD. To ensure smooth operation after initial installation, you can refer to the installation guide, which can also be found on the CD. -
Page 11: Customizing Your Monitor
Adjusting Your LCD Panel In the OSD menu, you will find all kinds of features to help you adjust your LCD panel to the optimal performance. Selecting OSD Features Push represented in the following menu. In case of using video adapter and selecting CVBS, the OSD menu is shown below. -
Page 12: Osd Menus
OSD Menus VGA-Input (D-Sub) Important! Though manual adjustment of the LCD panel is available, we strongly recommend you to use the auto adjustment function of the panel. It will automatically tune your LCD panel to the optimal performance. Simply push the AUTO button for 3 seconds to enable the auto adjustment function. - Page 13 Color Temperature Selection Vertical OSD Position Adjustment Language Selection The color temperature of RGB can be adjusted in case of entering “ User ”sub menu. Suggest the user select“ Text ”sub menu in case of the resolution being 720x350 or 720×400.
- Page 14 Exit Selection DVI-Input Important! When DVI-Input is selected, the following adjustments are not available: horizontal position adjustment, vertical position adjustment, sharpness, phase adjustment and clock adjustment. Brightness Adjustment OSD Transparency Adjustment Contrast Adjustment Color Temperature Selection...
- Page 15 Tools Selection Auto and Input Select Selection Suggest the user to use“ Recall ”icon, if the user doesn’t satisfy with the adjustment. Language Selection Exit Selection...
-
Page 16: Cvbs Input
CVBS Input Brightness Adjustment Color Adjustment Sharpness Adjustment Color Temperature Selection Contrast Adjustment Hue Adjustment OSD Transparency Adjustment Horizontal Position Adjustment... - Page 17 Vertical Position Adjustment Tools Selection Language Selection Auto and Input Select Selection Exit Selection...
-
Page 18: Warning Messages And Troubleshooting
Warning Messages and Troubleshooting Warning Messages If the message appears on the screen CAN NOT DISPLAY THIS INPUT SIGNAL NO SIGNAL INPUT WAIT FOR AUTOMATIC ADJUSTMENT MAIN CONTROL MENU LOCKED/ UNLOCKED Check the items The input signal is not acceptable by the monitor. •... -
Page 19: Troubleshooting
Troubleshooting Symptom No picture Power LED is off. • No display • Power LED is Amber The texts are not solid • Screen image is not centered properly. • Some lines are missing • There are red, green, blue or black tiny dots on the screen. -
Page 20: Technical Specifications
Specifications Electrical characteristics Screen size Pixel format Analogue Horizontal frequency 24kHz – 83kHz Vertical frequency Digital Horizontal frequency 24kHz – 83kHz Vertical frequency Maximum pixel clock(Analogue) Maximum pixel clock(Digital) Connections Power Consumption Physical characteristics Weight Tilt angle Technical Specifications RX-W22 22.0”... -
Page 21: Regulation
FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 22: It Equipment Recycling Information
We AG Neovo at are very conscious of the environmental forces that impose on our business and strive to identify and provide the best working products to reduce the environmental impact of our products.
