- Page 1 AF-2MDT-36B / AF-2MDT-36W User Manual Version 2.0.2...
-
Page 2: Table Of Contents
Contents Welcome ....................................3 Important Safeguards and Warnings ............................3 Product Introduction ................................. 4 Features ..................................... 4 Installation ....................................5 Connection ....................................5 Technical Specifications................................6 FCC Statement ................................... 7 IC Warning Statement ................................8 Appendix A: Toxic or Hazardous Materials or Elements ......................8... -
Page 3: Welcome
Many of the setup and installation sections have corresponding videos on YouTube. To access the setup videos, please go to http://amcrest.com/videos. For access to other support related materials and information, please visit us at http://amcrest.com/support. To contact Amcrest support, please do one of the following: •... -

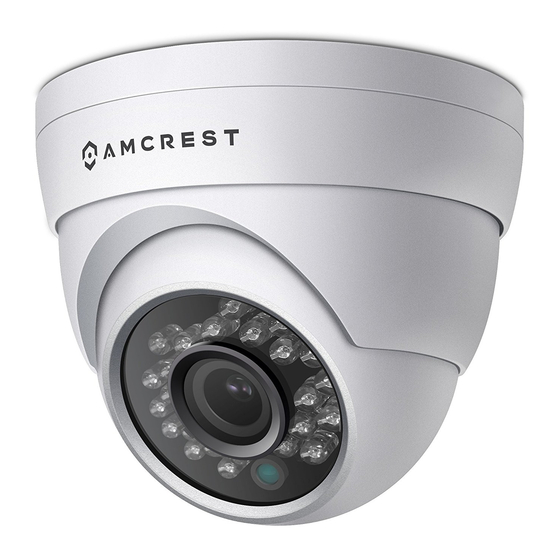

Page 4: Product Introduction
Be sure to use only the accessories recommended by the manufacturer. Before installation, please open the package and check to make sure that all the components are present. Contact the retailer that you purchased from or Amcrest directly if anything is broken or missing in the package. Product Introduction This series of camera is adopted with CMOS image sensors that provide high performance, high megapixel resolution that supports HD video. -
Page 5: Installation
Installation Locate the position in which you would like to place your camera and apply the included mounting sticker to the mounting surface. Using a drill that is the same diameter, or slightly smaller than the included drywall mounting wall anchors, drill out the smaller circles on the sticker and insert the drywall mounting wall anchors. -
Page 6: Technical Specifications
Step 2: Connect the male end of the DC power connector of the BNC (coaxial) cable to the female end of the power connector of the camera. Step 3: Connect the BNC (coaxial) cable to a video out channel on the back of your DVR. Step 4: Connect the male end of the DC power connector of the power adapter to the female end of the power connector of the BNC (coaxial) cable. -
Page 7: Fcc Statement
S/N Ratio 41dB(AGC OFF) Focal Length 3.6mm Max Aperture F1.2 Color: 0.1Lux@(F1.2, AGC On), B&W: 0.01Lux@(F1.2, Min. Illumination AGC On) Function Day & Night Ext. /Auto / Color / B & W White Balance Auto / Manual 2DNR Smart IR Support DWDR On / Off... -
Page 8: Ic Warning Statement
The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes, or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. - Page 9 Cr VI PBDE Sheet ○ ○ ○ ○ ○ ○ Metal(Case) Plastic Parts ○ ○ ○ ○ ○ ○ （Panel） Circuit Board ○ ○ ○ ○ ○ ○ Fastener ○ ○ ○ ○ ○ ○ Wire and ○ ○ ○ ○...
- Page 10 All the designs and software here are subject to change without prior written notice. • All trademarks and registered trademarks mentioned are the properties of their respective owners. To contact Amcrest support, please do one of the following: Visit http://amcrest.com/contacts and use the email form.
