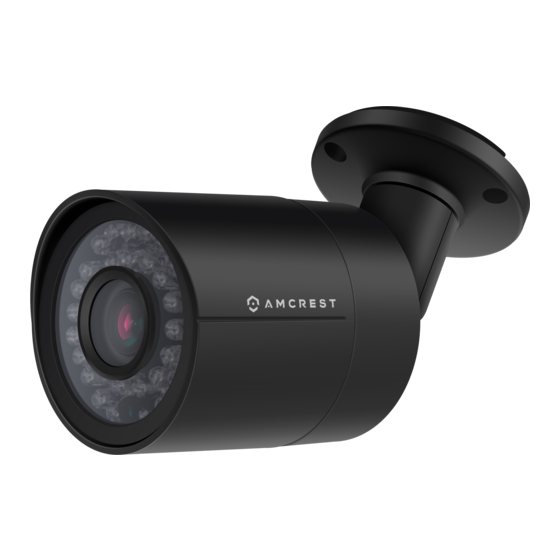

- Page 1 AF-2MBC-36B / AF-2MBC-36W User Manual Version 2.0.2...
-
Page 2: Table Of Contents
Contents Welcome .................................. 3 Important Safeguards and Warnings ........................3 Product Introduction ............................... 4 Features ................................... 4 Installation ................................4 Connection ................................5 Technical Specifications ............................6 FCC Statement ................................. 7 IC Warning Statement .............................. 7 Appendix A: Toxic or Hazardous Materials or Elements ..................8... -
Page 3: Welcome
Many of the setup and installation sections have corresponding videos on YouTube. To access the setup videos, please go to http://amcrest.com/videos. For access to other support related materials and information, please visit us at http://amcrest.com/support. To contact Amcrest support, please do one of the following: •... -
Page 4: Product Introduction
Be sure to use only the accessories recommended by the manufacturer. Before installation, please open the package and check to make sure that all the components are present. Contact the retailer that you purchased from or Amcrest directly if anything is broken or missing in the package. Product Introduction This series of camera is adopted with CMOS image sensors that provide high performance, high megapixel resolution that supports HD video. -
Page 5: Connection
Note: The wall anchors should be in the same bag as the screws and a designed to secure the screws onto the mounting surface. 3) Attach the power and desired video cabling. 4) Thread the included screws through the base of the camera and into the wall anchors on the mounting surface. Then, using a Phillips head screwdriver, secure the screws and base of the camera to the mounting surface. -
Page 6: Technical Specifications
Technical Specifications AF-2MBC-36B / AF-2MBC-36W Model Camera Image Sensor 1/2.9” 2MP Sony EXmor CMOS Effective Pixels 1080P (1920 x 1080) Signal System NTSC/PAL Synchronization Internal Synchronization Video Output CVI (1080P@25fps), TVI (1080P@30fps), AHD (1080P@30fps), CVBS (1280 x 576, 1280 x 480) -
Page 7: Fcc Statement
Working Temperature / Humidity -30°C ~ 50°C -22°F ~ +122°F) FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 8: Appendix A: Toxic Or Hazardous Materials Or Elements
of your body. Pour se conformer aux exigences de conformité CNR 102 RF exposition, une distance de séparation d'au moins 20 cm doit être maintenue entre l'antenne de cet appareil ettoutes les personnes. Appendix A: Toxic or Hazardous Materials or Elements Component Toxic or Hazardous Materials or Elements Name... - Page 9 All the designs and software here are subject to change without prior written notice. • All trademarks and registered trademarks mentioned are the properties of their respective owners. To contact Amcrest support, please do one of the following: Visit http://amcrest.com/contacts and use the email form.
