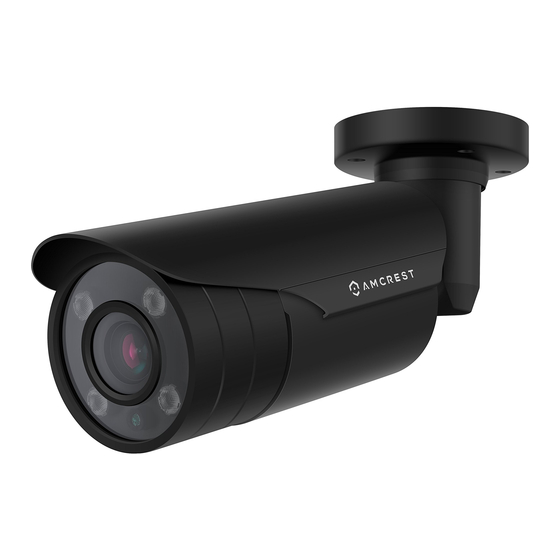

- Page 1 AF-2MBC-VARIB / AF-2MBC-VARIW User Manual Version 2.0.2...
-
Page 2: Table Of Contents
Contents Welcome ..................................3 Important Safeguards and Warnings ..........................3 Product Introduction ..............................4 Features ..................................4 Installation ..................................5 Connection ..................................5 Understanding the OSD menu............................6 Technical Specifications..............................8 FCC Statement ................................9 IC Warning Statement ..............................9 Appendix A: Toxic or Hazardous Materials or Elements .................... -
Page 3: Welcome
Many of the setup and installation sections have corresponding videos on YouTube. To access the setup videos, please go to http://amcrest.com/videos. For access to other support related materials and information, please visit us at http://amcrest.com/support. To contact Amcrest support, please do one of the following: •... -
Page 4: Product Introduction
Be sure to use only the accessories recommended by the manufacturer. Before installation, please open the package and check to make sure that all the components are present. Contact the retailer that you purchased from or Amcrest directly if anything is broken or missing in the package. Product Introduction This series of camera is adopted with CMOS image sensors that provide high performance, high megapixel resolution that supports HD video and 4x Optical zoom performance. -
Page 5: Installation
Installation 1) Locate the position in which you would like to place your camera and apply the included mounting sticker to the surface. 2) Using a drill bit that is the same diameter or slightly smaller diameter than the included drywall wall anchors, drill out the smaller circles on the sticker and insert the anchors into the holes. -
Page 6: Understanding The Osd Menu
(3). To switch to AHD or analog, press and hold the menu (1) button for 5 seconds then, while holding, move the switch to the right (4). Most Amcrest products function in CVI so it is recommended to keep the camera in CVI mode for best results. - Page 7 Below is a brief description of each feature located in the OSD menu: Lens: Sets the levels and mode of the lens such as, deblur and normal. Exposure: Sets how light or dark the image will appear. White Bal: Regulates preset color temperatures for the camera. Backlight: Sets backlight settings for the camera.
-
Page 8: Technical Specifications
Technical Specifications Model AF-2MBC-VARIB / AF-2MBC-VARIW Camera Image Sensor 1/2.8” 2.16MP Sony STARVIS CMOS Effective Pixels 1080P (1920 x 1080) Signal System NTSC/PAL Synchronization Internal Synchronization Video Output CVI (1080P@25fps), TVI (1080P@30fps), AHD (1080P@30fps), CVBS (1280 x 576, 1280 x 480) Min. -
Page 9: Fcc Statement
Working Temperature / Humidity -30°C ~ +50°C (-22°F ~ +122°F), Humidity 90% or less (non-condensing) Storage Temperature -20°C ~ +60°C (-4°F ~ +140°F) FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 10: Appendix A: Toxic Or Hazardous Materials Or Elements
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. - Page 11 All the designs and software here are subject to change without prior written notice. • All trademarks and registered trademarks mentioned are the properties of their respective owners. To contact Amcrest support, please do one of the following: Visit http://amcrest.com/contacts and use the email form.
