Specification Specification
LIG40SM
Model
1/3"CMOS
Pick up Element
Effective Picture Elements
976(H) X 496(V）
(H×V)
800TV Line
Horizontal Resolution
0.01Lux /F1.2
Minimum Illumination
More than 48dB
S/N Ratio
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100, 000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
0.45
Gama Characteristic
40 Meters (with ￠5X42PCS Infrared LED)
IR Distance
Under 10Lux by CDS
IR Status
CDS AUTO Control
IR Power On
1Vpp, 75Ω
Video Output
Auto
Auto Gain Control
DC12V (+/-10%)/500mA
Power/Current
2.8-12mm Manual Zoom Lens
Lens
291(W) x 90(H) x 93(D)
Dimension (mm)
1600
Weight (g)
-30~+60℃ RH95% MAX
Storage Temperature
-10~+50℃ RH95% MAX
Operating Temperature
Packing List
No Name
1. Weatherproof IR Colour Camera LIG40SM
2. User Guide LIG40SM
Franchiser：
Model Number
1
1
LIG40SM Colour Camera

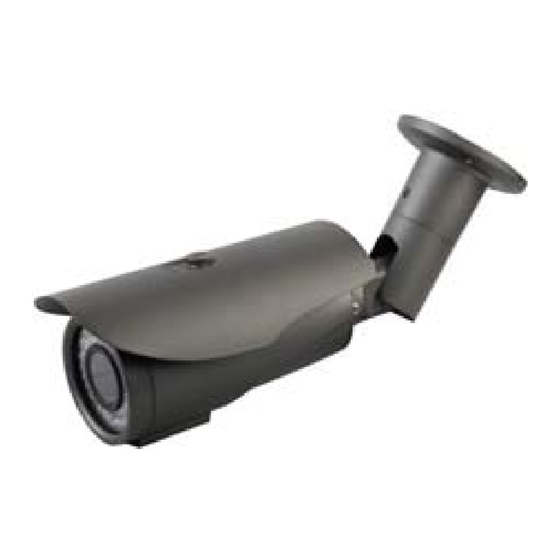

Weatherproof IR Colour Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
