Defender Security LICG24SM Manual

Specification
LICG24SM
Model
1/3"CMOS
Pick up Element
Effective Picture Elements
976(H) X 496(V）
(H×V)
800TV Line
Horizontal Resolution
0.01Lux /F1.2
Minimum Illumination
More than 48dB
S/N Ratio
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100, 000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
Gama Characteristic
20 Meters (with ￠5X24PCS Infrared LED)
IR Distance
Under 10Lux by CDS
IR Status
CDS AUTO Control
IR Power On
1Vpp, 75Ω
Video Output
Auto Gain Control
DC12V (+/-10%)/350mA
Power/Current
Board Lens 3.6mm/F2.0
Lens
168(W) x73.5(H) x65(D)
Dimension (mm)
Weight (g)
-30~+60℃ RH95% MAX
Storage Temperature
-10~+50℃ RH95% MAX
Operating Temperature
Packing List
No Name
1. Weatherproof IR Colour Camera LICG24SM
2. User Guide LICG24SM
0.45
Auto
500
Franchiser：
Model Number
1
1
LICG24SM Colour Camera

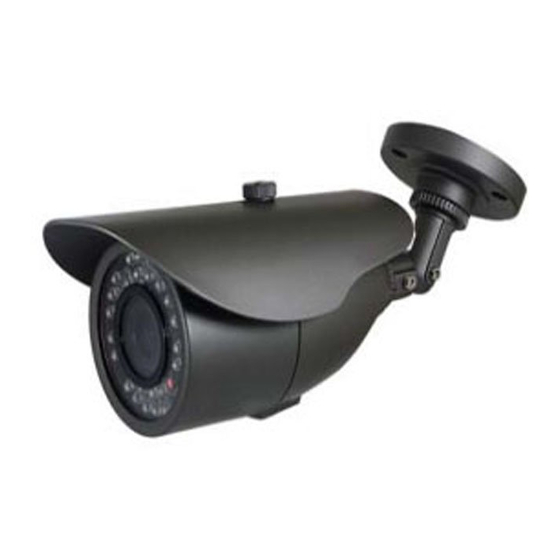

Weatherproof IR Colour Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
