Page 1

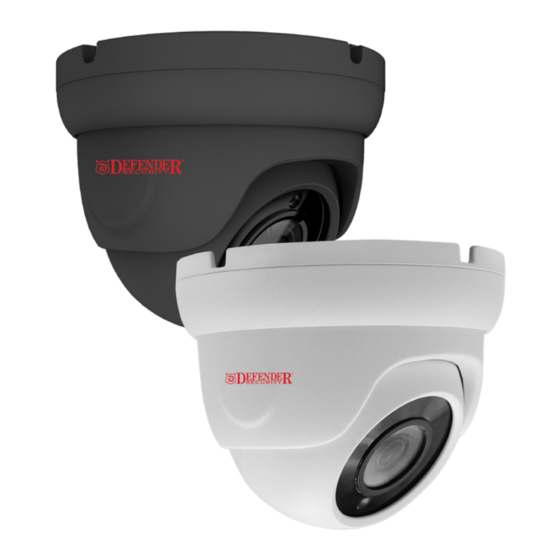

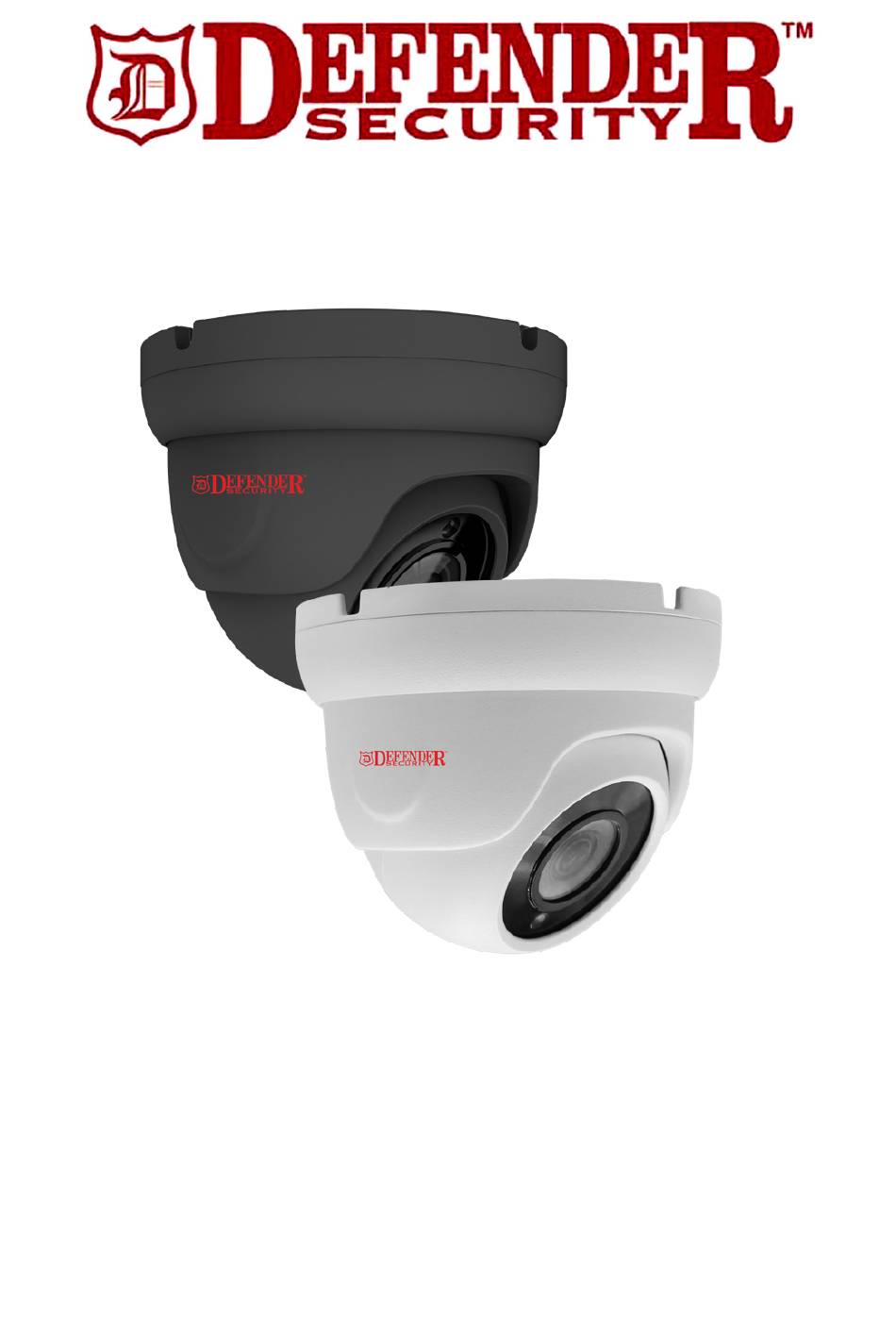

DFR40 and DFR41 DOME SECURITY CAMERAS INSTALLATION GUIDE...
Page 2
SAFETY INSTRUCTIONS Before using the camera, please read this manual carefully and keep it for future use. • Installation should be completed by a qualified installer or experienced person with good knowledge of network installation. • Do not expose the lens to intense light source for long periods. •...
Page 3
Gamma Characteristic • Camera Gamma characteristic is 0.45. Scanning Mode • NTSC or PAL mode. FEATURES • The camera connection cable has a menu control button under a small round plastic cover on the splitter. • When the camera is operating, pressing the button will display an on screen menu for setting further options:- 1.
Page 4
SPECIFICATION Image Sensor 1/2.5” 5MP CMOS Sensor Resolution 5M: 2592x1944 Output PAL/NTSC Minimum light level 0.01lux/F1.2 S/N ratio >45dB Synchronisation Internal IR Range 20 meters IR power AGC auto control Video output CVBS / CVI / TVI / AHD Power 12V DC 550mA (Min) Lens 3.6mm Fixed Lens...
