Defender Security LBB40SM Quick Manual

Specification
LBB40SM
Model
Pick up Element 1/3" CMOS
Effective Picture Elements
1305(H) X1049(V)
(H×V)
800TVL
Resolution
0.01 Lux /F1.2
Minimum Illumination
More than 48dB
S/N Ratio
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
0.45
Gama Characteristic
40 Meters (with ￠5X42 PCS Infrared LED)
IR Distance
1Vpp, 75Ω
Video Output
Auto
Auto Gain Control
DC12V（+/-10%)/500mA
Power/Current
2.8-12mm Manual Zoom Lens
Lens
236.5(W)x89(H)x85.5(D)
Dimension (mm)
1400
Weight (g)
-30~+60℃ RH95% MAX
Storage Temperature
-10~+50℃ RH95% MAX
Operating Temperature
Packing List
No
Name
1.
Weatherproof IR Colour Camera
2.
User Guide
Franchiser：
Model Number
LBB40SM 1
LBB40SM 1

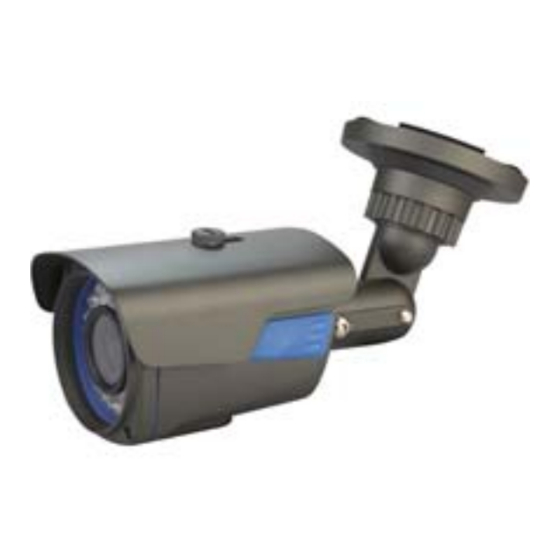

LBB40SM Colour Camera
Weatherproof IR Colour Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
