Defender Security LIZM40SM User Manual

Specification Specification
Model LIZM40SM
Pick up Element 1/3" CMOS
Effective Picture Elements
976(H) X 496(V）
(H×V)
800 TV Line
Horizontal Resolution
0.01 Lux/F1.2
Minimum Illumination
0Lux (with IR LED ON)
More than 48dB
S/N Ratio
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
0.45
Gama Characteristic
40 Meters (with ￠5X42PCS Infrared LED)
IR Distance
Under 10Lux by CDS
IR Status
CDS AUTO Control
IR Power On
1Vpp, 75Ω
Video Output
Auto
Auto Gain Control
DC12V(+/-10%)/500mA
Power/Current
2.8‐12mm Manual Zoom Lens
Lens
290(W)x92(H)x80(D)
Dimension (mm)
1300
Weight (g)
-30~+60℃ RH95% MAX
Storage Temperature
-10~+50℃ RH95% MAX
Operating Temperature
Packing List
No Name
1.

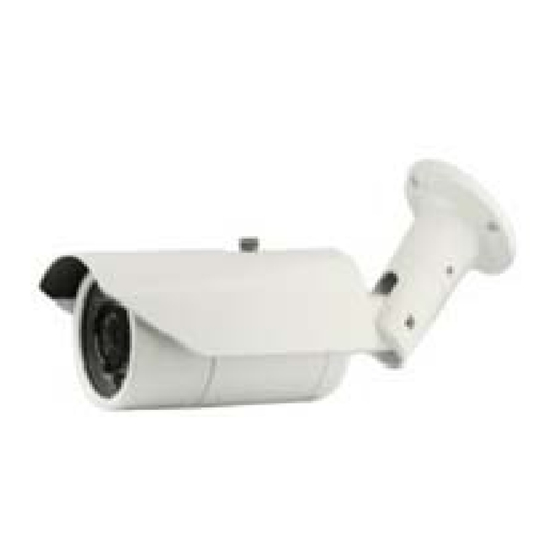

Weatherproof IR Colour Camera LIZM40SM
2.
LIZM40SM
User Guide
Franchiser：
Model Number
1
1
LIZM40SM Colour Camera
Weatherproof IR Colour Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
