Defender Security LIP40SHD Quick Start Manual

Specification
LIP40SHD
Model
Pick up Element 1/3" SONY Super HAD CCDII
Effective Picture Elements
NTSC:768(H)×494(V) PAL:752(H)x582(V)
(H×V)
650 TV Line
Horizontal Resolution
0.001 Lux/ F1.2
Minimum Illumination
0Lux (with IR LED ON)
More than 52dB
S/N Ratio
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
0.45
Gama Characteristic
40 Meters (with ￠5X42PCS Infrared LED)
IR Distance
Under 10Lux by CDS
IR Status
CDS AUTO Control
IR Power On
1Vpp, 75Ω
Video Output
Auto
Auto Gain Control
DC12V (+/-10%)/500mA
Power/Current
2.8-12mm Manual Zoom Lens
Lens
260(W)x112(H)x85(D)
Dimension (mm)
1600
Weight (g)
-30~+60℃ RH95% MAX
Storage Temperature
-10~+45℃ RH95% MAX
Operating Temperature
Packing List
No
Name
1.
Weatherproof IR Colour Camera
2.
User Guide
Franchiser：
Model Number
LIP40SHD 1
LIP40SHD 1

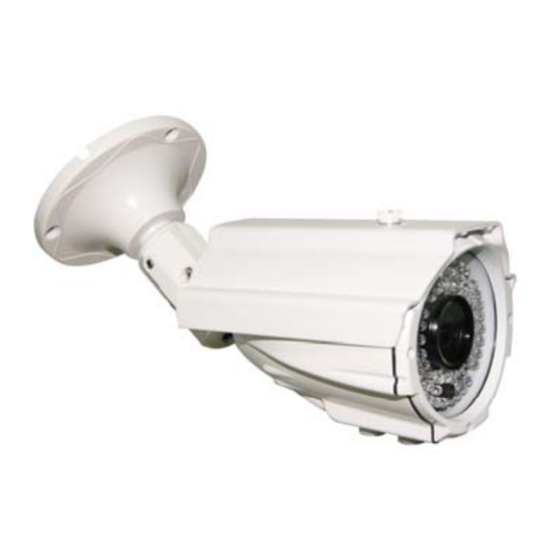

LIP40SHD Colour Camera
Weatherproof IR Colour Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
