Defender Security LICE24NSHD Manual

Specification
LICE24SNHD
Model
Pick up Element 1/3" SONY Super HAD CCDII
Effective Picture Elements
NTSC:768(H)×494(V) PAL:752(H)x582(V)
(H×V)
650 TV Line
Horizontal Resolution
0.001 Lux/F1.2
Minimum Illumination
0Lux (with IR LED ON)
More than 52dB
S/N Ratio
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
0.45
Gama Characteristic
20 Meters (with ￠5X24 PCS Infrared LED)
IR Distance
1Vpp, 75Ω
Video Output
Auto
Auto Gain Control
DC12V(+/-10%)/350mA
Power/Current
Board Lens 3.6mm /F2.0
Lens
100(W) x77(H) x77(D)
Dimension (mm)
450
Weight (g)
-30~+60℃ RH95% MAX
Storage Temperature
-10~+45℃ RH95% MAX
Operating Temperature
Packing List
No
Name
1.
Weatherproof IR Colour Camera LICE24NSHD
2.
User Guide LICE24NSHD
Franchiser：
Model Number
1
1
LICE24NSHD Colour Camera

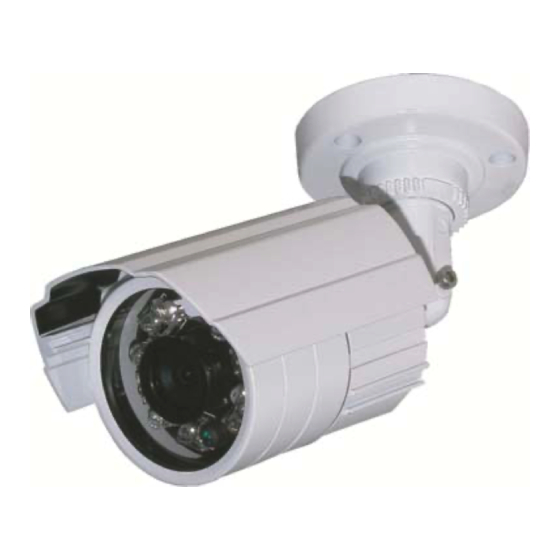

Weatherproof IR Colour Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
