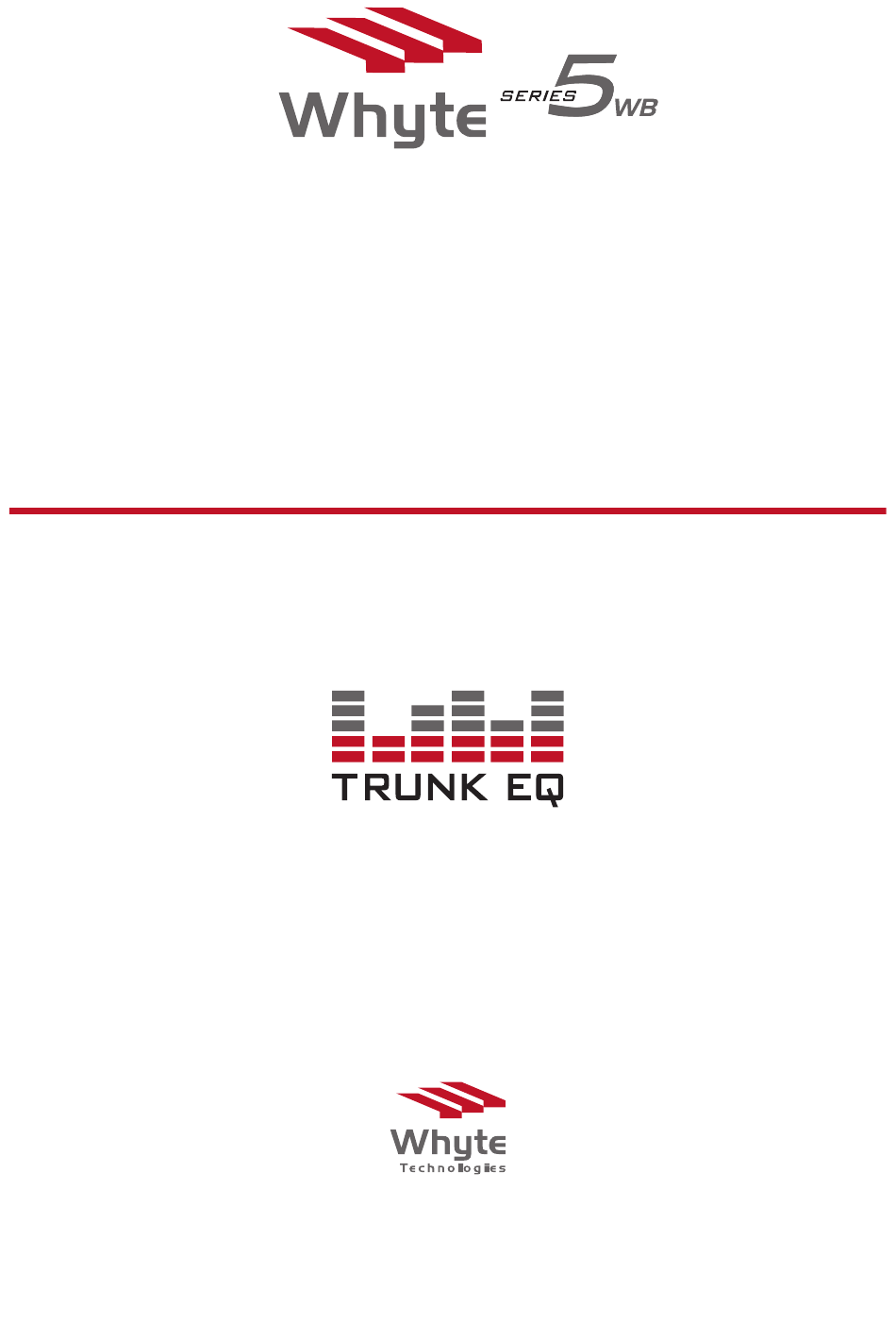

- Page 1 5 W IR E WB TA P & S P L IT T ER INSTRUCTION MANUAL WT51-10WB | WT51-20WB | WT52-10WB WT52-20WB | WT53-10WB | WS52-05WB www.whytetechnologies.com In the interest of continuous improvement, all specifications of products within this brochure are subject to change without notice.
-
Page 2: Table Of Contents
CONTENTS Safety Precautions Guarantee General Description Technical Description Installation Instructions Example Configuration Specifications... -
Page 3: Safety
Do not over tighten the F connectors (finger tight only). GUARANTEE All Whyte products are guaranteed for a period of 4 years from the date of purchase against defects. Within this guarantee period, Whyte Technologies will repair or replace the faulty product. In the unlikely event, please return any faulty products to your dealer. -
Page 4: General Description

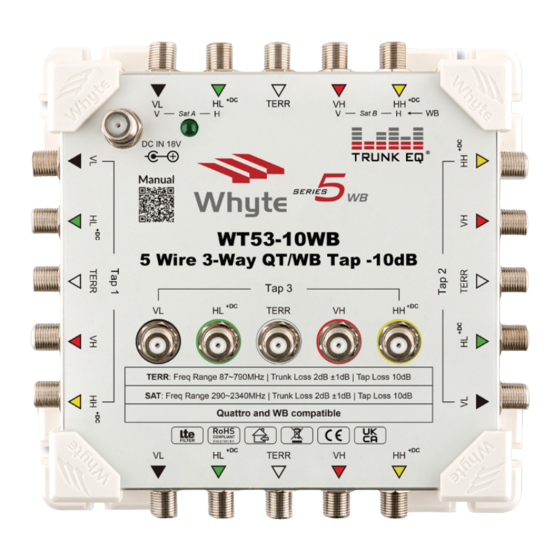

GENERAL DESCRIPTION Whyte Series 5 WB Taps & Splitters are a range of 5 wire passive devices that distribute IF and Terrestrial Signals. The range includes 1 way, 2 way and 3 way Taps with either 10dB or 20dB tap-offs and a 2 way Splitter with 2 x 4dB tap-offs. - Page 5 EXAMPLE 5 WIRE EXAMPLE 5 WIRE 4-WAY SPLITTER 5-WAY SPLITTER WT52-10WB WT52-10WB WS52-05WB WT52-10WB 2x Outputs 10dB Loss QUICK FIT COUPLERS 2x Outputs 13dB Loss 2x Outputs 1x Outputs 7dB Loss 6dB Loss...
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS MOUNTING THE LAUNCH AMPLIFIER Select a suitable location to install the Launch Amplifier. Do not install the Launch Amplifier in damp, humid, hot or dusty areas. Using the screw slots on the Corner Brackets, secure the Multiswitch using the appropriate fixing screws and wall plugs to suit the relevant wall surface or cabinet. - Page 7 EARTH BONDING Earth bond the Launch Amplifier to the Earth Bonding Lug and/or to the Earth Terminal Bar using minimum 4mm² Earth Bonding Cable. It is best practise to earth bond across the Earth Bars of all components within a single IRS System using a single unbroken Earth Bonding Wire.
- Page 8 If in doubt, assume the current consumption of each LNB to be 200mA max (0.2A). Connect a suitable Whyte PSU to the Auxiliary 18V DC Input. If more than one PSU is required, the additional PSU(s) may be connected to any other Multi switch, Launch Amplifier, Tap or Splitter within the system.
-
Page 9: Example Configuration
EXAMPLE CONFIGURATION Quattro Hybird IRS System WPSU-2.5A WATS-530WB WM516 WSCR508 WSCR504 WM508 WT52-20WB WSCR508 WM516 DC Block WT52-20WB WPSU-2.5A WM512 WSCR506 WSCR504 WM508 WT52-10WB Quick Fit Couplers WM516 WSCR508 WSCR508 WM516 WT52-05WB... - Page 10 EXAMPLE CONFIGURATION Quattro Hybird IRS System SAT A SAT B WPSU-2.5A WATS-530WB WSCR508 WSCR504 WSCR504 WSCR508 WT52-20WB WSCR506 WSCR504 WSCR504 WSCR506 DC Block WT52-20WB WPSU-2.5A WSCR506 WSCR504 WSCR506 WSCR506 WT52-10WB Quick Fit Couplers WSCR506 WSCR508 WSCR508 WSCR506 WT52-05WB...
-
Page 11: Specifications
Auxiliary 18V Input injects power to all SAT lines A range of passive, 5 wire WB and Quattro compatible Taps and Splitters. The Whyte Series 5 WB range of Taps are available in 1-way and 2-way with 10dB or 20dB Tap attenuation as well as a 2-way Splitter. - Page 12 Series 5 WB Taps & Splitter WT52-10WB | WT52-20WB | WS52-05WB 4 Years Warranty High Isolation Tap outputs on side for easy push fit LED power indicator Colour coded inputs and outputs Inbuilt LTE filter Features Trunk EQ Auxiliary 18V Input injects power to all SAT lines MODEL WT52-10WB WT52-20WB...
- Page 13 To address this issue Whyte Technologies created a new range of 5 wire WB/Quattro Taps with Trunk EQ. Developed by Whyte Technologies, Trunk EQ is an inbuilt Trunk Equaliser that provides equal through loss at all frequencies between 290MHz - 2340MHz which results in no slope being introduced.
- Page 14 Unit 1, Watermill Business Centre. Edison Road, Enfield. EN3 7XF Tel: 0330 999 1980 | info@whytetechnologies.com | www.whytetechnologies.com Technical Support North Region South Region Daniel Hawkins MSCTE Paul Barnes MSCTE 07718 654108 07703 468149 dan@whytetechnologies.com paul@whytetechnologies.com Copyright © Whyte Technologies - June 2020...
