- Page 1 W B I RS LAU NC H A M PL IF IE R INSTRUCTION MANUAL WATS-517WB | WATS-530WB www.whytetechnologies.com In the interest of continuous improvement, all specifications of products within this brochure are subject to change without notice.
-
Page 2: Table Of Contents
CONTENTS Safety Precautions Guarantee General Description Product Description Technical Description Installation Instructions Example Configuration Specifications... -
Page 3: Safety
Do not over tighten the F connectors (finger tight only). GUARANTEE All Whyte products are guaranteed for a period of 4 years from the date of purchase against defects. Within this guarantee period, Whyte Technologies will repair or replace the faulty product. In the unlikely event, please return any faulty products to your dealer. -
Page 4: General Description
GENERAL DESCRIPTION The Whyte Series 5 WB Launch Amplifier is a 5 wire Satellite and Terrestrial IRS Launch Amplifier with the option of Quattro or Dual Wideband LNB input. Features include: 4G/5G Filter RED compliant 4 Years Warranty Gain control on all inputs... -
Page 5: Product Description

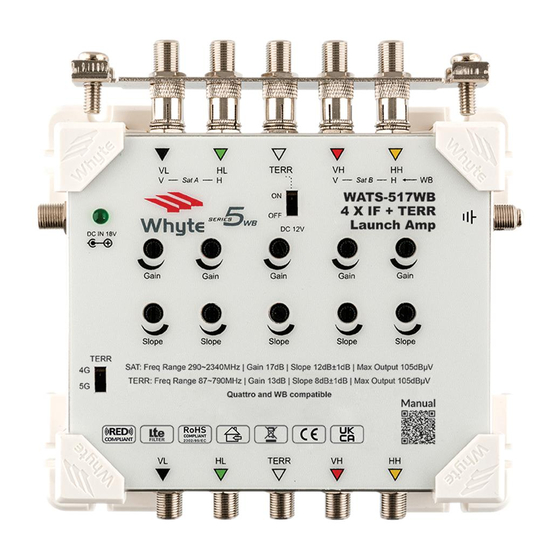

PRODUCT DESCRIPTION Inputs SAT Output TERR Input Terrestrial (TV/Radio) 4G/5G Terrestrial Filter Corner Mounting Brackets Slope Controls Earth Terminal Lug LED Power Indicator Gain Controls Auxiliary DC Input Output SAT TERR 12V DC Switch... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS MOUNTING THE LAUNCH AMPLIFIER Select a suitable location to install the Launch Amplifier. Do not install the Launch Amplifier in damp, humid, hot or dusty areas. Using the screw slots on the Corner Brackets, secure the Multiswitch using the appropriate fixing screws and wall plugs to suit the relevant wall surface or cabinet. - Page 7 EARTH BONDING Earth bond the Launch Amplifier to the Earth Bonding Lug and/or to the Earth Terminal Bar using minimum 4mm² Earth Bonding Cable. It is best practise to earth bond across the Earth Bars of all components within a single IRS System using a single unbroken Earth Bonding Wire.
- Page 8 If in doubt, assume the current consumption of each LNB to be 200mA max (0.2A). Connect a suitable Whyte PSU to the Auxiliary 18V DC Input. If more than one PSU is required, the additional PSU(s) may be connected to any other Multi switch, Launch Amplifier, Tap or Splitter within the system.
-
Page 9: Example Configuration
EXAMPLE CONFIGURATION Quattro Hybird IRS System WPSU-2.5A WATS-530WB WM516 WSCR508 WSCR504 WM508 WT52-20WB WSCR508 WM516 DC Block WT52-20WB WPSU-2.5A WM512 WSCR506 WSCR504 WM508 WT52-10WB Quick Fit Couplers WM516 WSCR508 WSCR508 WM516 WT52-05WB... - Page 10 EXAMPLE CONFIGURATION Quattro Hybird IRS System SAT A SAT B WPSU-2.5A WATS-530WB WSCR508 WSCR504 WSCR504 WSCR508 WT52-20WB WSCR506 WSCR504 WSCR504 WSCR506 DC Block WT52-20WB Quick Fit Couplers WSCR506 WSCR504 WSCR506 WSCR506 DC Block WT52-10WB WPSU-2.5A WSCR506 WSCR506 WSCR508 WSCR508...
- Page 11 290mA Max Dimensions with earth bar (mm) 158 x 150 x 43 158 x 150 x 43 Weight 470g 470g Whyte Technologies - Unit 1 Watermill Business Centre, Edison Road, Enfield, EN3 7XF | Tel: 0330 999 1980 | www.whytetechnologies.com...
- Page 12 Unit 1, Watermill Business Centre. Edison Road, Enfield. EN3 7XF Tel: 0330 999 1980 | info@whytetechnologies.com | www.whytetechnologies.com Copyright © Whyte Technologies - May 2021. v2...
