- Page 1 dSCR Multiswitch INSTRUCTION MANUAL WSCR504RP www.whytetechnologies.com In the interest of continuous improvement, all specifications of products within this brochure are subject to change without notice.
-
Page 2: Table Of Contents
CONTENTS Safety Precautions Guarantee General Description Product Description Technical Description Installation Instructions Commissioning the Multiswitch Example Configuration Specifications... -
Page 3: Safety
Do not over tighten the F connectors (finger tight only). GUARANTEE All Whyte products are guaranteed for a period of 4 years from the date of purchase against defects. Within this guarantee period, Whyte Technologies will repair or replace the faulty product. In the unlikely event, please return any faulty products to your dealer. -
Page 4: General Description
GENERAL DESCRIPTION The Whyte WSCR504RP is a remote powered dSCR multiswitch designed specifically for installations where no landlords power is available. The WSCR504RP retains all the features and performance of the conventional Series D range of dSCR multiswitches. These performance features easily facilitate the cascading of several units due the low loss trunks, TERR gain control and Pro-Tap. -
Page 5: Product Description

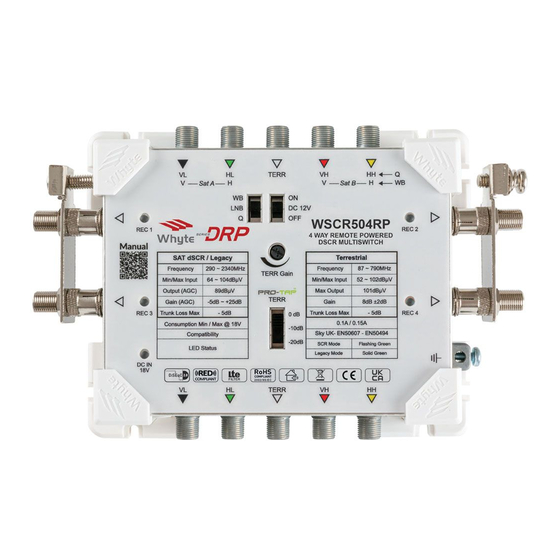

PRODUCT DESCRIPTION TERR Sat A Sat B DC 12V WSCR504RP REC 1 REC 2 4 WAY REMOTE POWERED DSCR MULTISWITCH SAT dSCR / Legacy Terrestrial Frequency 290 ~ 2340MHz Frequency 87 ~ 790MHz TERR Gain Min/Max Input 64 ~ 104dB V Min/Max Input 52 ~ 102dB V Output (AGC) -
Page 6: Technical Description
This ensures that no individual apartment will experience apartment PSU overload. When used with the WPSU-SAP1/SAP2 Smart Apart PSU’s from Whyte, customer support is reduced and customer satisfaction is increased as the IRS system will function correctly irrespective of building occupancy or type of set-top-box (if any) used by the resident. - Page 7 Multiswitch. The system can be further extended with series 5 Legacy Multiswitches. Please note: Legacy Whyte Series 5 Multiswitches are not configure for remote power and will require a PSU.
-
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS MOUNTING THE MULTISWITCH Select a suitable location to install the Multiswitch. Do not install the Multiswitch in damp, humid, hot or dusty areas. Using the screw slots on the Corner Brackets, secure the Multiswitch using the appropriate fixing screws and wall plugs to suit the relevant wall surface or cabinet. - Page 9 EARTH BONDING Earth bond the Multiswitch to the Earth Bonding Lug and/or the Earth Terminal Bars using minimum 4mm² Earth Bonding Cable. It is best practise to earth bond across all Multiswitches using a single unbroken Earth Bonding Wire. To achieve this, strip away 3cm of the insulation of a length of 4mm² Earth Bonding Wire.
- Page 10 CONNECTING THE SUBSCRIBER CABLES Terminate the Subscriber Cables with good quality F Connectors and connect to the Subscriber Outputs. The F Connectors should be fitted to the coaxial cable correctly, ensuring that the centre core protrudes 3mm above the F Connector body.
-
Page 11: Commissioning The Multiswitch
USER BAND FREQUENCIES Sky UK EN50607 EN50494 FREQ 1680 1210 1280 1050 1420 1380 1115 1680 1480 1275 2040 1340 1030 1485 1080 1550 1130 1615 1530 1745 1580 1810 1630 1875 1730 1940 1780 1830 1880 1930 COMMISSIONING THE MULTISWITCH See Figure 4: 1. -
Page 12: Example Configuration
EXAMPLE CONFIGURATION HYBRID IRS Figure 4 WSCR504RP TERR Sat A Sat B DC 12V WSCR504RP REC 1 REC 2 4 Way dSCR Multiswitch RISER SAT dSCR / Legacy Terrestrial Frequency 290 ~ 2340MHz Frequency 87 ~ 790MHz TERR Gain Min/Max Input 64 ~ 104dB V Min/Max Input 52 ~ 102dB V... - Page 13 EXAMPLE CONFIGURATION 2 SAT IRS SYSTEM TERR Sat A Sat B DC 12V WSCR504RP REC 1 REC 2 4 Way dSCR Multiswitch RISER SAT dSCR / Legacy Terrestrial Frequency 290 ~ 2340MHz Frequency 87 ~ 790MHz TERR Gain WSCR504RP Min/Max Input 64 ~ 104dB V Min/Max Input 52 ~ 102dB V...
-
Page 14: Specifications
SPECIFICATIONS WSCR504RP 4 Years Warranty Pro-Tap Small Form Factor Features Trunk EQ Comes complete with Earth Bars Remote Powered dSCR Multiswitch 2 SAT Reception using 2x WB LNB’s Switchable 12V supply on TERR input Compatible with Quattro and WB LNB’s High Output Power 89dBµV (AGC) for Legacy / dSCR High Gain TERR with Gain Control &... - Page 15 Unit 1, Watermill Business Centre. Edison Road, Enfield. EN3 7XF Tel: 0330 999 1980 | info@whytetechnologies.com | www.whytetechnologies.com Copyright © Whyte Technologies February 2022...
