- Page 1 Mul ti s w it c h INSTRUCTION MANUAL WM508L | WM512L | WM516L | WM524L | WM532L www.whytetechnologies.com In the interest of continuous improvement, all specifications of products within this brochure are subject to change without notice.
-
Page 2: Table Of Contents
Example Configuration GUARANTEE Specifications All Whyte products are guaranteed for a period of 4 years from the date of purchase against defects. Within this guarantee period, Whyte Technologies will repair or replace the faulty product. In the unlikely event, please return any faulty products to your dealer. -
Page 3: General Description

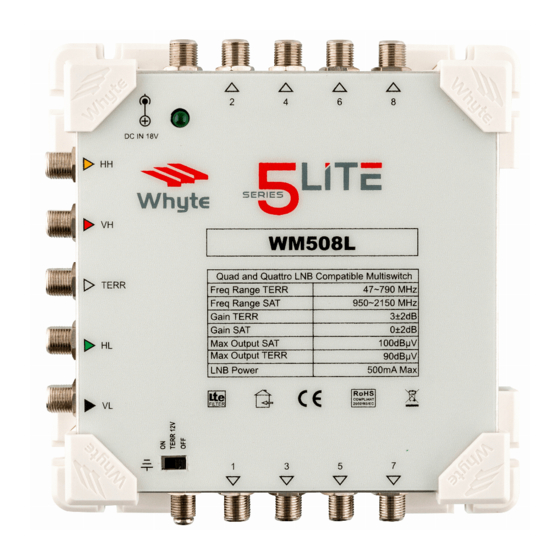

GENERAL DESCRIPTION PRODUCT DESCRIPTION The Whyte Series 5 Lite Multiswitch range is universally flexible and is designed to be used in small, medium to large Integrated Reception Systems (IRS). Whyte Multiswitches can be used as Standalone Multiswitches when powered directly via the18V Auxiliary Input by using a Whyte 0.8A Power Supply Unit (model... -
Page 4: Technical Description
Use a suitably sized Satellite Dish to provide adequate signal levels from the satellite being received. Ensure that the Satellite Drop Cables are connected Whyte Series 5 Lite Multiswitches are compatible with Quad and Quattro correctly in the corresponding order with respect to the LNB and the LNB’s. -
Page 5: Example Configuration
REC8 REC10 REC12 REC14 REC16 DC IN 18V AUXILIARY DC OUT 18V SAT1 SAT2 FM DAB Whyte FM DAB Multiswitch WM516 Freq Range TERR 47~790 MHz Freq Range SAT 950~2150 MHz Gain TERR DC 12V Gain SAT 10dB Max Output TERR 85dBµV... -
Page 6: Specifications
SPECIFICATIONS WM508L | WM512L WM516L | WM524L | WM532L MODEL WM508L | WM512L WM516L WM524L WM532L Frequency Range 950-2150MHz 950-2150MHz 950-2150MHz 950-2150MHz TERR 87-790MHz 87-790MHz 87-790MHz 87-790MHz Input (F-Type Female) 4 SAT + 1 TERR 4 SAT + 1 TERR 4 SAT + 1 TERR 4 SAT + 1 TERR Tap Outputs (F-Type Female) - Page 7 Unit 13, Watermill Business Centre. Edison Road, Enfield. EN3 7XF Tel: 0330 999 1980 | info@whytetechnologies.com | www.whytetechnologies.com Copyright © Whyte Technologies June 2020...
