1 / 12
MODEL #
CM-DK828
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-DK828
Summary of Contents for Furniture of America CM-DK828

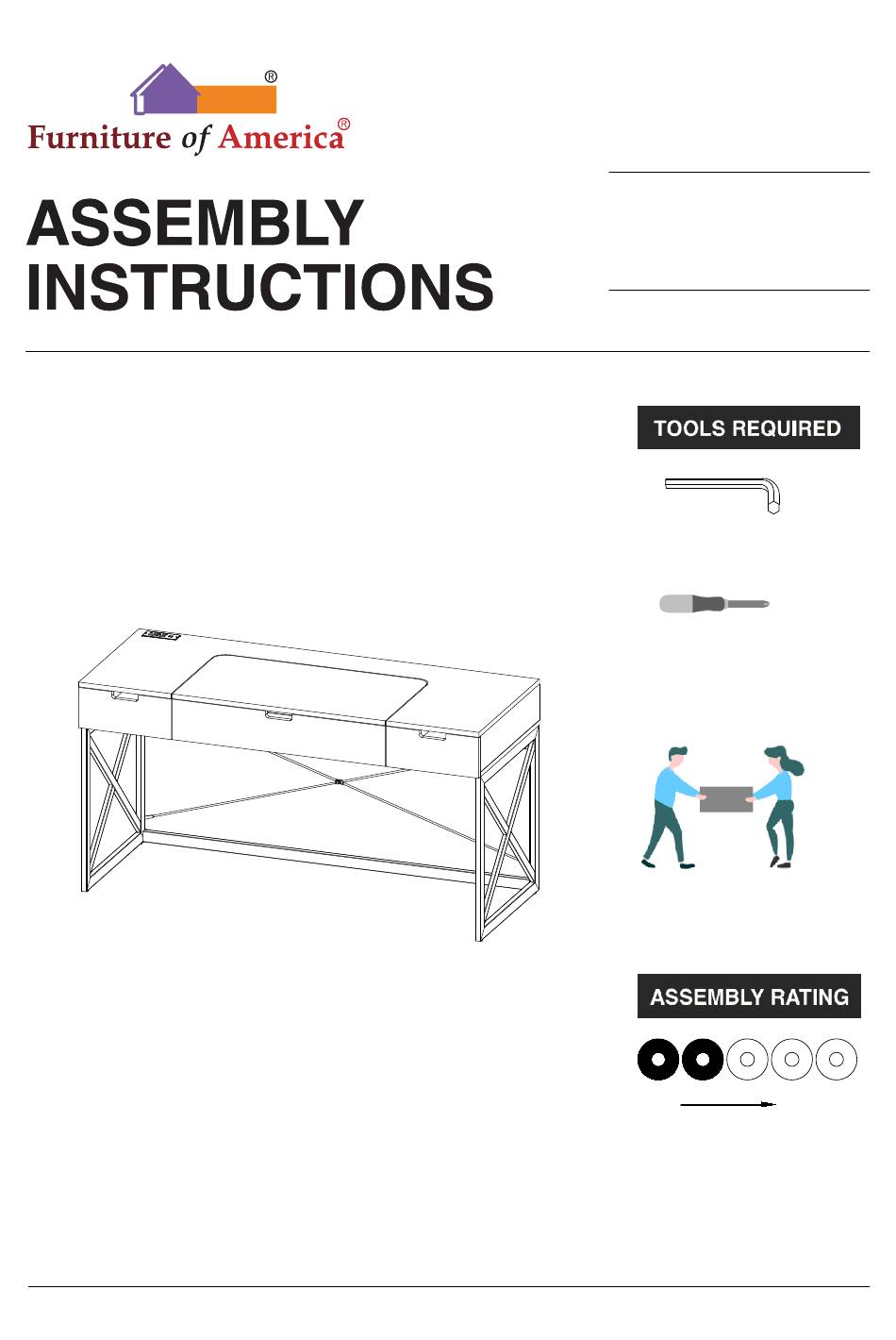

- Page 1 MODEL # CM-DK828 Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 12...
- Page 5 DESK CM-DK828 #1 1pc #2 1pc #3 1pc #4 1pc Table Top Right Side Frame Left Side Frame Cross Bar #5 1pc #6 1pc #7 2pcs Upper Support Bar Lower Support Bar Tension Bars 19pcs 4pcs Bolts Ø1/4" x 1/2"...
-
Page 6: Exploded View
Exploded View 6 / 12... - Page 7 ASSEMBLY INSTRUCTIONS Align tension bars (#7) together and secure by using bolts (#A) onto nuts (#C). Do not fully tighten. Part #7 x2pcs Hardware #A x1pc Hardware #C x1pc Align crossbar (#4) to the side frames (#2,3), then secure by using bolts (#A).
- Page 8 ASSEMBLY INSTRUCTIONS Align support bars (#5,6) to the Part #5 x1pc frames (#2,3), then secure by using Part #6 x1pc bolts (#A). Hardware #A x6pcs Align frame to the top (#1), then secure by using bolts (#A,B). Part #1 x1pc Hardware #A x4pcs Hardware...
- Page 9 ASSEMBLY INSTRUCTIONS Align bars (#7) to the frame, then secure by using bolts (#A). Tighten bolt on the bars (#7). #7 x2pcs Part #A x4pcs Hardware Hardware #G x1pc Hardware #H x2pcs Align USB port (#G) to the top (#1), then secure by using screws (#H).
- Page 10 ASSEMBLY INSTRUCTIONS Align and hook the hinges together to lock the table. Unhook to unlock the table. 10 / 12...
- Page 11 ASSEMBLY INSTRUCTIONS WALL Hardware #F x2sets NOTE: Levelers can be used for adjustment if needed. 11 / 12...
- Page 12 12 / 12...
