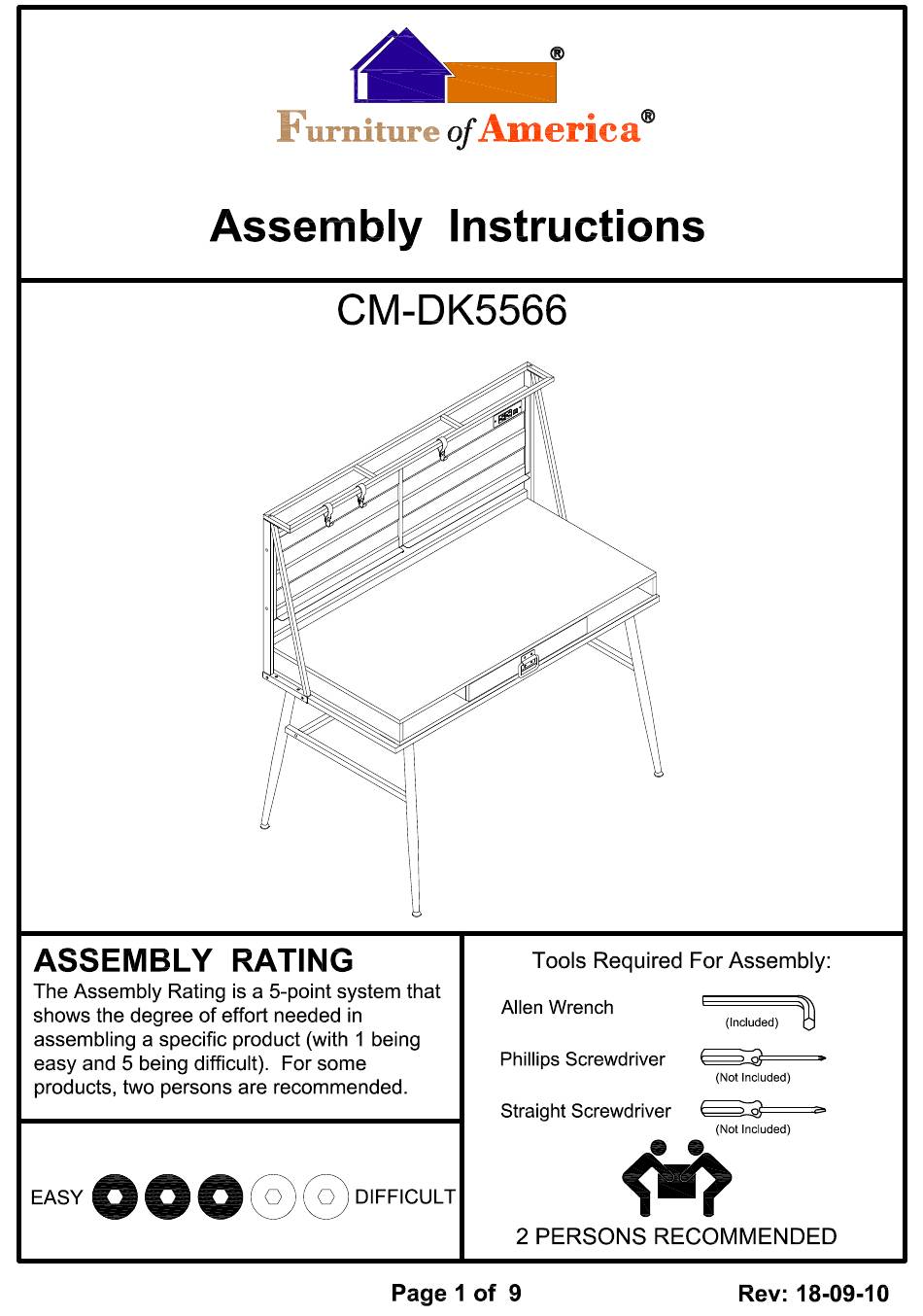

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 5 Align leg frames (#1,2) to the base frame (#3), then secure by using bolts (#B). Attach adjustable foot (#D) to the leg frames (#1,2).
- Page 6 Align support tube (#8) to the leg frames (#1,2), then secure by using bolts (#C). Secure support tube (#8) to cabinet (#9) by using bolts (#B). Secure base frame (#3) to cabinet (#9) by using bolts (#A).
- Page 7 Align frames (#6,7) to the unit, then secure by using bolts (#A). Align back panel (#5) to the frames (#6,7), then secure by using bolts (#B).
- Page 8 Align top frame (#4) to the frames (#6,7), then secure by using bolts (#A,B). Attach USB (#H) to the back panel (#5), then secure by using bolts (#F) with nuts (#G).
- Page 9 Wrap belts (#J) onto top frame and hook (#I), then secure by using bolts (#K) with nuts (#L).
