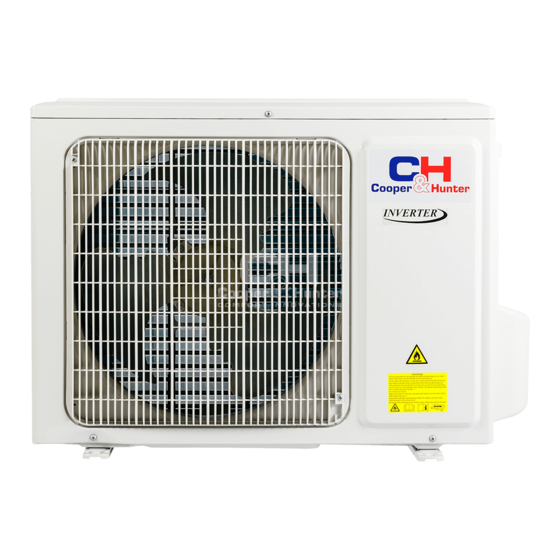

- Page 1 Owner's Manual Split Type Wall-mounted Air Conditioner CHML-U14RK2 CHML-U18RK2 CHML-U21RK3 CHML-U24RK3 CHML-U28RK4 CHML-U36RK4 CHML-U42RK5 Thank you for choosing our product. For proper operation, please read and keep this manual carefully.
-
Page 2: Table Of Contents
In line with the company’s policy of continual product improvement, the aesthetic and dimensional characteristics, technical data and accessories of this appliance may be changed without notice. CONTENTS GENERAL INFORMATION Conformity And Range The Refrigerant Warning The Instructions Before Use Name of Parts Technical Data Outdoor Unit Working Temperature Range... -
Page 3: Conformity And Range
EXPLANATION OF SYMBOLS GENERAL INFORMATION Indicates a hazardous situation that, if not avoided, will DANGER result in death or serious injury. Indicates a hazardous situation that, if not avoided, could WARNING result in death or serious injury. Indicates a hazardous situation that, if not avoided, may CAUTION result in minor or moderate injury. -
Page 4: The Refrigerant
THE REFRIGERANT GENERAL INFORMATION Please read this operating manual carefully before operating the unit. to the material objects for reference. The Refrigerant ● To realize the function of the air conditioner unit, a special refrigerant circulates leads to explosion . It can ●... -
Page 5: Warning
GENERAL INFORMATION Warning Operation and Maintenance This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory ormental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 6 GENERAL INFORMATION Warning If the air conditioner operates under abnormal conditions, it may cause malfunction，electric shock or fire hazard. When turning on or turning off the unit by emergency operation switch, please press this switch with an insulating object other than metal. Do not step on top panel of outdoor unit, or put heavy objects.
- Page 7 GENERAL INFORMATION Warning The air conditioner is the first class electric appliance. It must be properly grounding with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock. The yellow-green wire in air conditioner is grounding wire, which can't be used for other purposes.
-
Page 8: The Instructions Before Use
THE INSTRUCTIONS BEFORE USE GENERAL INFORMATION WARNING When having a burning smell or The power supply must adopt the Never cut off or damage power ★ ★ ★ smoke,please turn off the power special circuit that with air switch cables and control wires. If the supply and contact with the ser- protection and assure it has enou- power cable and signal control... -
Page 9: Name Of Parts
NAME OF PARTS GENERAL INFORMATION CHML-U18RK2、CHML-U21RK3： Warning Be sure to cut off the power supply before cleaning the air conditioner; otherwise electric shock might happen. Wetting of air conditioner may cause the risk of electric shock. Make sure not to wash your air conditioner in any case. - Page 10 NAME OF PARTS GENERAL INFORMATION CHML-U14RK2： Warning Be sure to cut off the power supply before cleaning the air conditioner; otherwise electric shock might happen. Wetting of air conditioner may cause the risk of electric shock. Make sure not to wash your air conditioner in any case.
-
Page 11: Technical Data
TECHNICAL DATA GENERAL INFORMATION CHML-U14RK2 CHML-U18RK2 MODE CHML-U21RK3 Electrical data Electricity supply 220-240V~,50Hz 220-240V~,50Hz 220-240V~,50Hz Fuse or air switch Minimum power cord section Size and clearance TECHNICAL DATA GENERAL INFORMATION MODE CHML-U24RK3、CHML-U28RK4 Electrical data Electricity supply 220-240V~,50Hz Fuse or air switch... -
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS INSTALLER CHML-U14RK2： 1. Remove the handle at the right side plate of the An all-pole disconnection switch having a contact outdoor unit (one screw). separation of at least 3mm in all pole should be connected in fixed wiring. - Page 13 INSTALLER ELECTRICAL CONNECTIONS CHML-U24RK3： CHML-U18RK2、CHML-U21RK3、 Remove the handle at the right side plate of the outdoor CHML-U18RK2 unit (one screw). Handle 2. Remove the cable clamp, connect the power connection cable with the terminal at the row of connection and fix the connection.
- Page 14 ELECTRICAL CONNECTIONS INSTALLER CHML-U28RK4、 CHML-U36RK4： 1. Remove the handle at the right side plate of the An all-pole disconnection switch having a contact outdoor unit (one screw). separation of at least 3mm in all pole should be connected in fixed wiring. 3.
- Page 15 ELECTRICAL CONNECTIONS INSTALLER CHML-U42RK5： 1. Remove the handle at the right side plate of the An all-pole disconnection switch having a contact outdoor unit (one screw). separation of at least 3mm in all pole should be connected in fixed wiring. 3.
-
Page 16: Installing The Outdoor Unit
INSTALLING THE OUTDOOR UNIT INSTALLER Location Install the drain fitting and the drain hose (for model with heat pump only) Use bolts to secure the unit to a flat, solid floor. Condensation is produced and flows from the out- When mounting the unit on a wall or the roof, make door unit when the appliance is operating in the sure the support is firmly secured so that it cannot heating mode. -
Page 17: Maintenance
200cm or above or above 200cm (Air outlet side) (Air outlet side) 50cm or above Space to the wall CHML-U14RK2 50cm or more Space to the cover 30cm or above (Air inlet side) 30cm or above Space to the cover... -
Page 18: Check After Installation
CHECK AFTER INSTALLATION INSTALLER Check Items Problems Owing to Improper Installation Is the installation reliable? The unit may drop, vibrate or make noises May cause unsatisfactory cooling (heating) Has the gas leakage been checked? effect Is the thermal insulation of the unit May cause condensation and water dropping sufficient? Is the drainage smooth? -
Page 19: Safety Operation Of Flammable Refrigerant
SAFETY OPERATION OF FLAMMABLE REFRIGERANT INSTALLER Qualification requirement for installation and maintenance man All the work men who are engaging in the refrigeration system should bear the valid certification awarded by the authoritative organization and the qualification for dealing with the refrigeration system recognized by this industry. If it needs other technician to maintain and repair the appliance, they should be supervised by the person who bears the qualification for using the flammable refrigerant. - Page 20 66129929357...
