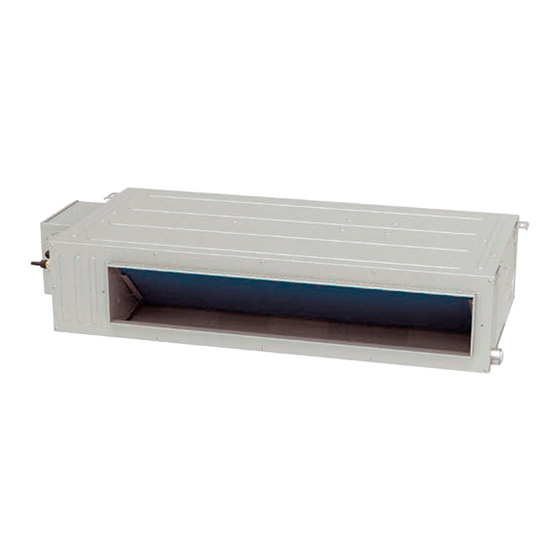

- Page 1 Installation and Operation Manual Free Match Series R32 Multi VFR System-Indoor Unit (For European Union) Applicable models ： CHML-ID09RK CHML-ID12RK CHML-ID18RK CHML-ID21RK CHML-ID24RK Please read this manual carefully before the installation and operation of this product.
-
Page 2: Table Of Contents
Contents Ⅰ Safety Precautions ....................1 Ⅱ Installation Location and Matters Needing Attention ..........3 1 How to select the installation location for the indoor unit ........3 2 Electric Wiring ....................4 3 Earthing Requirements ..................4 4 Accessories for Installation ................4 Ⅲ... - Page 3 User Notice ◆ The total capacity of the indoor units which runs at the same time can not exceed 150% of that of the outdoor units; otherwise, the cooling (heating) effect of each indoor unit would be poor. ◆ Switch the main power on 8 hours before start the unit, helpful for a successful startup.
- Page 4 ◆If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ◆The appliance shall be installed in accordance with national wiring regulations. Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU.
- Page 5 Appliance filled with flammable gas R32. Before use the appliance, read the owner’s manual first. Before install the appliance, read the installation manual first. Before repair the appliance, read the service manual first. The Refrigerant To realize the function of the air conditioner unit, a special refrigerant circulates in the system.
-
Page 6: Ⅰ Safety Precautions
Unitary Duct Split Unitary Duct Split Ⅰ Safety Precautions Please read this manual carefully before use and operate correctly as instructed in this manual. Please especially take notice of the following two symbols： Warning! It indicates improper operation which will lead to human casualty or sever injury. - Page 7 Unitary Duct Split Unitary Duct Split requirement specified on the nameplate and also check its security. ◆Before use, please check if the piping and wiring are correct to avoid water leakage, refrigerant leakage, electric shock, fire etc. ◆The main power supply must be earthed to avoid the hazard of electric shock and never connect this earth wire to the gas pipe, running water pipe, lightening rod or phone cable’s earth lead.
-
Page 8: Ⅱ Installation Location And Matters Needing Attention
Unitary Duct Split Unitary Duct Split Ⅱ Installation Location and Matters Needing Attention The installation of the unit must comply with the national and local safety regulations. The installation quality directly affects the normal use, so the user should not carry out the installation personally. Instead, the installation and debugging should be done by the professional personnel. -
Page 9: Electric Wiring
Unitary Duct Split Unitary Duct Split 2 Electric Wiring a. The installation must be done in accordance with the national wiring regulations. b. Only the power cord with the rated voltage and exclusive circuit for the air conditioning can be used. c. -
Page 10: Ⅲ Installation Instructions
Ⅲ Installation Instructions 1 Outline Dimension Drawings of the Indoor Unit Note: the unit in the followings figures is mm, unless otherwise specified. Fig.1 is applicable to CHML-ID09RK ,CHML-ID12RK ,CHML-ID18RK , CHML-ID21RKI,CHML-ID24RK : Fig.1 Table 1: Outline Dimensions ： Item... -
Page 11: Dimension Requirements On The Installation Space Of The Indoor Unit
Unitary Duct Split Unitary Duct Split 2 Dimension Requirements on the Installation Space of the Indoor Unit Fig. 2 3 Installation of the Indoor Unit a. Requirements on the Installation Location 1) Ensure the hanger is strong enough to withstand the weight of the unit. 2) The drainage of the drain pipe is easy. - Page 12 Unitary Duct Split Unitary Duct Split between holes and see Fig.3 for the installation of the expansion bolt. Fig.3 Fig.4 Install the hanger on the indoor unit, as shown n Fig.4. Install the indoor unit on the ceiling, as shown in Fig.5. Fig.5 CUATION！...
-
Page 13: Horizontality Check Of The Indoor Unit
Unitary Duct Split Unitary Duct Split prevent it vibrating. Consult the user and builder for more details. ③.If the strength of the ceiling is not strong enough, a beam made of angle iron can be used and then fix the unit on it. ④.If the indoor unit is not installed in the air conditioning area, please use sponge around the unit to prevent condensing. - Page 14 Unitary Duct Split Unitary Duct Split Fig.8 Name Name Hanger Transition Duct Return Air Duct Air Supply Duct Canvas Duct Diffuser Return Air Louver Diffuser Joint Air Supply Outlet Table 3 c.Installation Steps of the Round Air Supply Duct 1) Preinstall the outlet of the round duct on the transition duct and then fix it by the self-tapping screw.
-
Page 15: Drawings Of The Air Supply Outlet And Return Air Inlet
Fig.9 Air Supply Outlet Fig.10 Return Air Inlet Table 4 Dimensions of the Air Supply Outlet and Return Air Inlet (unit: mm) Air Supply Outlet Return Air Inlet Item Model CHML-ID09RK CHML-ID12RK CHML-ID18RK CHML-ID21RK 1062 CHML-ID24RK 7 Installation of the Return Air Duct a. -
Page 16: Installation Of The Condensate Pipe
Unitary Duct Split Unitary Duct Split and the other to the return air louver. For the sake of the convenience to freely adjust the height, a cutting of canvas duct will be helpful, which can be reinforce and folded by ８＃iron wire. -
Page 17: Design Of The Drain Pipe
Unitary Duct Split Unitary Duct Split b. There is a condensate outlet on both left and right sides of the unit. Once one is confirmed to be used, the other should be clogged by a rubber plug, bundled by the binding wire and insulated by the insulation material to avoid water leakage. -
Page 18: Precautions For The Lift Pipe
Unitary Duct Split Unitary Duct Split (Right) with a min. degree of slope 1/100 (Wrong) Fig.14 e. Insert the drain hose into the drain hole and tighten it with clamps. f. Wrap the clamps with large amount of sponge for thermal insulation. g. -
Page 19: Test For The Drainage System
Unitary Duct Split Unitary Duct Split Fig.16 Notes: ①.The inclination height of the drain hose should be within 75mm so that the outlet of the drain hose does not suffer the external force. ②.If multiple drain pipes converge, please follow the installation steps below. Fig.17 12 Test for the Drainage System a. -
Page 20: Piping
Unitary Duct Split Unitary Duct Split 13 Piping a. Let the flare end of the copper pipe point at the screw and then tighten the screw by hand. b. After that, tighten the screw by the torque wrench unit it clatters (as shown in Fig.18). -
Page 21: Insulation For The Refrigerant Pipe
Unitary Duct Split Unitary Duct Split 14 Insulation for the refrigerant pipe a. The refrigerant pipe should be insulated by the insulating material and plastic tape in order to prevent condensing and leaking. b. The joints of the indoor unit should be wrapped with the insulating material and no gas is allowed on the joint of the indoor unit, as shown in Fig.19. - Page 22 Unitary Duct Split Unitary Duct Split 1) Strip the insulating layer at the end of the wire about 25mm off with a wire striper. 2) Loosen the screw off on the wiring board of the air conditioning unit. 3) Shape with the pliers the end of the wire to a circle matching with the size of the screw.
-
Page 23: Wiring Of The Power Cord (Single-Phase)
Unitary Duct Split Unitary Duct Split ⑤.During the wiring, the wiring terminal or the single-core wire must be used; the direct wiring between the multi-core wire and wiring board would cause fire. ⑥ .All wiring should be done strictly in accordance with the wiring diagram; otherwise the improper wiring would cause the air conditioning unit running abnormally or damaged. -
Page 24: Wiring Of The Signal Line Of The Wired Controller
Table 7 Running Indoor Unit Current Input Power(W) Recommended Power Cord Power Cord (Sectional Indoor Area× Pieces) Type Model Cooling Heating Motor 220-240V~ CHML-ID09RK 0.406 1.0×4 0.406 1.0×4 50Hz 220-240V~ CHML-ID12RK 0.348 1.0×4 50Hz 50Hz Cooling 220-240V~ CHML-ID18RK 0.428 1080 1.0×4... -
Page 25: Ⅴ Error Analysis
Unitary Duct Split Unitary Duct Split Ⅴ Error Analysis If your conditioning unit runs abnormally, please check the following items before contact the maintenance serviceman. Table 9 Errors Possible Causes There is no power supply. Failed startup The breaker opens owing to electrical leakage. Voltage is too low. -
Page 26: Ⅵ Maintenance
Unitary Duct Split Unitary Duct Split Ⅵ Maintenance CAUTION! Take notice of the following items before clean your air conditioning unit. ①. Cut off the main power supply before contact any wiring device. ②. Only when the unit is turn off and the main power supply is cut off, can the unit be cleaned;... -
Page 27: Ⅵ Safety Operation Of Flammable Refrigerant Ⅰ
Unitary Duct Split Unitary Duct Split Ⅵ Safety operation of flammable refrigerant Ⅰ Qualification requirement for installation and maintenance man All the work men who are engaging in the refrigeration system should bear the valid certification awarded by the authoritative organization and the qualification for dealing with the refrigeration system recognized by this industry. - Page 28 Unitary Duct Split Unitary Duct Split a. Shut down the unit and cut power supply b. Eliminate the refrigerant c. Vacuuming d. Clean it with N2 gas e. Cutting or welding f. Carry back to the service spot for welding The refrigerant should be recycled into the specialized storage tank.
- Page 29 * Co o o o o o per & & Hu u nter is co o nstantly y w w w o o o rk k ing g to o im m m pro o o v v v e th h eir pro o o d d d u u u cts, so o th h e inf f f o o o rm m m atio o n in th h is m m m anu u al is su u u b b b j j j ect to o ch h ang g e w w ith h h o o o u u u t prio o r no o tice.
- Page 30 XK19 YT1F XK19 YT1F www.cooperandhunter.com.
- Page 31 ◆ ◆ ◆...
- Page 32 XK19 ......................1 ......................1 ................1 1.2 LCD ................1 ............................2 ..................2 ........................3 .....................4 ..........................4 ......................4 .......................4 .......................5 ......................5 Swing ....................7 Sleep ....................8 Turbo ....................9 E-heater ......................10 3.10 Blow ....................11 3.11 ........................12 .
-
Page 33: Ixk19
XK19 XK19 Ⅰ AUTO TURBO HOUR SHIELD MEMORY MASTER SAVE E-HEATER BLOW QUIET Mode Enter/Cancel Enter/cancel Function Timer On/Off 1.2 LCD 4 5 6 AUTOT URBO HOUR SHIELD MEMORY MASTER SAVE QUIET E-HEATER BLOW 7 8 9 10 13 14 15 16 17 18 19 .2 LCD... - Page 34 X 19 Shield functions (buttons, temperature, On/Off or Mode is shielded by the remote monitor. Turbo It blinks under on state of the unit without operation of any button. Enter/Cancel Mode Function Timer On/Off...
- Page 35 XK19 Enter/Cancel : 16 ① ▲ ～ 30℃ . ▼ ② : 0,5-24 Mode Function Turbo / Save / E-heater / Blow Timer On/Off ▲+Mode “Fan” “▼” Fan+▼ ▲+▼ Mode+▼ “Mode” “▼”. «Function» «Timer» «00» «Mode», « » « ». ①...
- Page 36 On / Off, . 4, . 5, «Mode», :Auto( )-Cooling( )-Dry( Fan( )-Heating( Auto Cooling Heating ▲ ▼ 1℃ 0.5s, 16℃～ 30℃ .
- Page 37 XK19 Fig.6 “Fan” Middle High AUTO Enter/Cancel Mode Function Timer On/Off Fig.7 “Timer” «xx.x HOUR», ▲ ▼ , «HOUR» Enter / Cancel”, «xx.x HOUR»,...
- Page 38 ▲ ▼ «Timer», «Timer», “Enter/Cancel” : 0.5-24 . ▲ ▼ 0,5 .
-
Page 39: Swing
XK19 Swing Swing: Swing “Function” Enter / Cancel Swing: Swing Swing, “Function”, Enter / Cancel, Swing “Enter/Cancel” “Function” swing swing “Enter/Cancel” “Function” Swing swing Swing Sleep, Turbo Blow Swing. ① . “Enter/Cancel” ② . -
Page 40: Sleep
Sleep Sleep: “Function”, Sleep. “Enter/Cancel” Sleep Function Sleep: Sleep. “Enter/Cancel” 1 ° C Sleep 1 1 ° C 1℃ 1℃ Sleep 1 Sleep .10. “Enter/Cancel” “Function” Sleep Sleep Sleep “Function” “Enter/Cancel” Sleep Sleep . 10 Sleep... -
Page 41: Turbo
XK19 Turbo Turbo: “Function”, Turbo, “Enter / Cancel”, Turbo “Function”, Turbo, “Enter / Cancel”, Turbo .11. “Enter/Cancel” “Function” Turbo Turbo Turbo “Enter/Cancel” “Function” Turbo Turbo Turbo... -
Page 42: E-Heater
E-heater E-heater ( , E-heater E-heater, “Function” Enter/Cancel E-heater, E-heater “Function” Enter/Cancel .12: “Function” “Enter/Cancel” E-heater E-heater “Function” “Enter/Cancel” E-heater E-heater Fig.12 E-heater... -
Page 43: Blow
XK19 3.10 Blow Blow: “Function”, Blow ( “Enter/Cancel”, “Function” Blow, “Enter/Cancel”, .13. “Enter/Cancel” “Function” Blow( “Function” “Enter/Cancel” Blow( Fig.13 ① . Blow “On/Off” LCD- «BLOW». Blow « Blow»( ② . - Page 44 XK19 3.11 (1). ▲ ▼ (2). Memory ( « » Memory. « » (3). «Function» «Timer», «00», « », ① . ② . ③ . . (03 ④ . . (04 ③ . «Enter/Cancel», «On/Off» (4). «Function» «Timer», “01”, « »...
- Page 45 XK19 ● ● ● ● ● 20×20×2 ST2.9X6 M4X25...
- Page 46 XK19 : CN1 - 485, (CN2, CN3) (1). (2). (3). M4 × 25, 20 × 20 × 2 (4). (5). ST 2.9X6.
- Page 47 XK19 Smart zone Smart zone . XK19 ). «N» Smart zone XK19). XK19 XK19 (n 16). Smart zone CN3, Fig.17 DIP- XK19 DIP- 2- DIP- . DIP- « » « » « »). ① .
- Page 48 XK19 ② . LCD- .18. Enter/cancel Mode Enter/cancel Function Timer On/Off...
- Page 49 Outdoor unit condenser mid-tube temperature sensor open/short circuited Whole unit current sensing circuit error...
-
Page 50: Yt1F
YT1F YT1F Ⅱ ① . ② . ③ . ④ . 1) ON/OFF ( ) 2) MODE Auto ( ), Cool ), Dry ( ), Fan ( ), Heat ( Auto ( 28℃ (82 ℉ ); 25℃ (77 ℉ ). Auto ( Cool ( Dry (... - Page 51 YT1F 3) SLEEP Sleep. Sleep Sleep Sleep Auto 4) FAN : Auto( Low( ), Medium( High( Low( Auto. Auto High speed M edium speed Low speed 5) CLOCK ＋ － - 12:00 6) LIGHT 7) TURBO Cool Heat 8) X-FAN X-FAN COOL ( DRY (...
- Page 52 YT1F 12) SWING UP/DOWN ( If the swing function is deactivated when the air guide louver is swing up and down, it will stop at the current position. 13) AIR ( AIR. 14) TIMER ON - «ON» 15) TIMER OFF «OFF».
- Page 53 YT1F : Auto ( ), Low FAN, ), Medium ( High( a. X-FAN X-FAN ON / OFF ① . X-FAN. X-FAN ② . ON / OFF b. AFTERHEAT X-FAN Heat Auto Heat, c. AUTO RUN AUTO RUN, d. TURBO...
- Page 54 Designed by Cooper&Hunter International Corporation, Oregon, USA www.cooperandhunter.com E-mail: info@cooperandhunter.com * Co o o o o o per& & Hu u nter постоянно работает над улучшением своей продукции, поэтому информация приведенная в данном руководстве, может быть изменена без предварительного уведомления потребителей.
