- Page 1 OWNER’S MANUAL PORTABLE AIR CONDITIONER Model: CH-M09K6S F or proper operation, please read and keep this manual carefully. Designed by Cooper&Hunter International Corporation, Oregon, USA www.cooperandhunter.com...
-
Page 2: Table Of Contents
Content Operation Notices The Refrigerant ......................1 Operation Environment ....................2 Safety Warning ......................3 Part's Name ......................4 Operation Guide Operation Introduction for Control Panel ..............5 Buttons on Remote Controller .................7 Introduction for Icons on Display Screen ..............7 Introduction for Buttons on Remote Controller ............8 Function Introduction for Combination Buttons ............10 Operation Guide . - Page 3 Explanation of Symbols Indicates a hazardous situation that, if not avoided, will DANGER result in death or serious injury. Indicates a hazardous situation that, if not avoided, could WARNING result in death or serious injury. Indicates a hazardous situation that, if not avoided, may CAUTION result in minor or moderate injury.
-
Page 4: The Refrigerant
Appliance filled with flammable gas R32. Before install and use the appliance, read the owner’s manual first. Before repair the appliance, read the service manual first. The Refrigerant To realize the function of the air conditioner unit, a special refrigerant circulates in the system. -
Page 5: Operation Environment
Operation Environment ● The air conditioner must be operated within the temperature range: 16°C ~ 35°C. ● The appliance is for indoor use only. ● The appliance must be positioned so that the plug is accessible. ● This air conditioner can only be used for family, not for commercial industry. -
Page 6: Safety Warning
Safety Warning ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 7: Part's Name

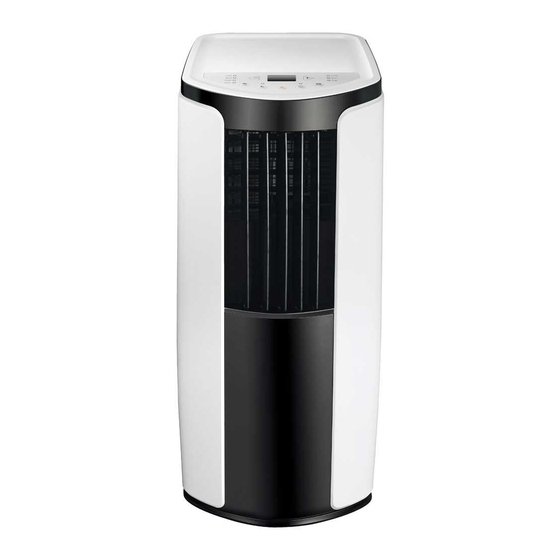

Part's Name Controller panel Guide louver Swing louver Castor Wire-fixing hook Plug of power cord Gastor Air inlet Joint A Heat discharge pipe Joint B+C Remote controller NOTICE: Heat discharge pipe and other installation accessories can't be discarded. -
Page 8: Operation Introduction For Control Panel
Operation Introduction for Control Panel Name of control panel Dual-8 nixie tube Cool mode indicator + / - button Dry mode indicator Fan mode indicator Fan speed indicator Mode button Sleep button Timer button ON/OFF button Fan button Operation of control panel Note: ●... - Page 9 Operation Introduction for Control Panel Mode button Press this button and the mode will circulate according to below sequence: COOL→DRY→FAN COOL: Under this mode, cooling mode indicator is bright. Dual-8 nixie tube displays set temperature. Temperature setting range is 16°C~30°C. DRY: Under this mode, drying mode indicator is bright.
-
Page 10: Buttons On Remote Controller
Buttons on Remote Controller ON/OFF button MODE button +/- button FAN button X-FAN button SLEEP button TIMER button Introduction for Icons on Display Screen Timer on Timer off Sending signal X-fan operation Cool operation Sleep operation Dry operation Lock Fan operation Set speed Set temperature Set time... -
Page 11: Introduction For Buttons On Remote Controller
Introduction for Buttons on Remote Controller Note: This is a general use remote controller, it could be used for the air conditioners ● with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status. - Page 12 Introduction for Buttons on Remote Controller FAN button Pressing this button can select fan speed circularly as: AUTO, SPEED 1 ( SPEED 2 ( ), SPEED 3 ( AUTO Note: ● Under Auto speed, air conditioner will select proper fan speed automatically according to ambient temperature.
-
Page 13: Function Introduction For Combination Buttons
Introduction for Buttons on Remote Controller Note: ● Timer setting range: 0.5~24h ● The interval between two motions can't exceed 5s, otherwise the remote con- troller will exit setting status. Function Introduction for Combination Buttons Child lock function Pressing “+” and “-” buttons simultaneously can turn on or turn off child lock function. When child lock function is started up, LOCK indicator on remote controller is ON. -
Page 14: Operation Guide
Operation Guide After putting through the power, press "ON/OFF" button on remote controller to turn on the air conditioner. Press "MODE" button to select your required mode: COOL, DRY, FAN. Press "+" or "-" button to set your required temperature. (Temperature can’t be adjusted under auto mode). -
Page 15: Clean And Maintenance
Clean and Maintenance WARNING ● Before cleaning the air conditioner, please turn off the unit and disconnect power. Otherwise, it may cause electric shock. ● Do not wash air conditioner with water. Otherwise, it may cause electric shock. ● Do not use volatile liquid (such as thinner or gas) to clean the air conditioner. Otherwise, it may damage the appearance of air conditioner. - Page 16 Clean and Maintenance Clean heat discharge pipe Remove the heat discharge pipe from air conditioner, clean and dry it , and then reinstall it. (For the method of installation and removal , please refer to the instruction for "Installation and disassembly of heat discharge pipe"). Checking before use-season 1.
-
Page 17: Malfunction Analysis
Malfunction Analysis Please check below items before asking for maintenance. If the malfunction still can’t be eliminated, please contact local dealer or qualified professionals. Phenomenon Troubleshooting Solution ● Power failure? ● Wait after power recovery. ● Is plug loose? ● Reinsert the plug. ●... - Page 18 Malfunction Analysis Phenomenon Troubleshooting Solution ● Whether air outlet or air inlet is ● Eliminate the obstacles. blocked? ● Under heating mode, whether ● The unit will stop blowing indoor temperature ireaches fan after reaching set set temperature? temperature. ● In order to prevent cold air, No fan blowed ●...
- Page 19 Malfunction Analysis Malfunction code 1. Pour out the water inside chassis. Chassis is full of water. 2. If "H8" still exits, please contact professional person to maintain the unit. Malfunction of ambient Please contact professional person to deal temperature sensor. with it.
- Page 20 www.cooperandhunter.com MANUFACTURER: GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI 66160000470 Add: West Jinji Rd, Qianshan, Zhuhai, Guangdong, China, 519070...
