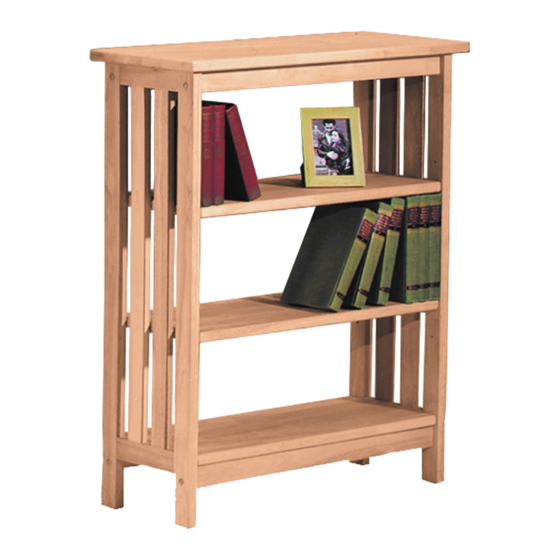

- Page 1 ASSEMBLY INSTRUCTIONS Description : MISSION BOOKCASE 30X36 Item No. : SH-3630M Printed in Vietnam ITEM NO.: SH-3630M REVISED FEB 12, 2015 - 1 -...
-
Page 2: Before Assembly
BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect. If a part is missing or defective, please contact the store where purchased. -
Page 3: Hardware List
HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch bolt Flat Washer (ɸ6.5x13mm) (M6x30mm) Lock Washer Allen Key (ɸ6.5x11mm) (M4x80mm) Long Screw... - Page 4 STEP 2 Insert Rails (E) into Side frames (D) as shown below. Attach other Side frame (D) to unit with Bolts (1) and washers (2) and (3). Tighten with Allen key (4). STEP 3 Attach Rails (E ) to the top (A) and Bottom shelf (B), with screws (5), as shown below. Tighten with a screwdriver.
- Page 5 STEP 4 Attach brackets (7) to the unit. Place the Adjustable shelves (C ) on the brackets, attach with screws (6), as shown below. Tighten with a screwdriver. Attach the Steel band (8) to the unit with screws (6). Then attach the Steel band to the wall with the long screw (5) as shown below (to secure the product and prevent tipping).
