Operation

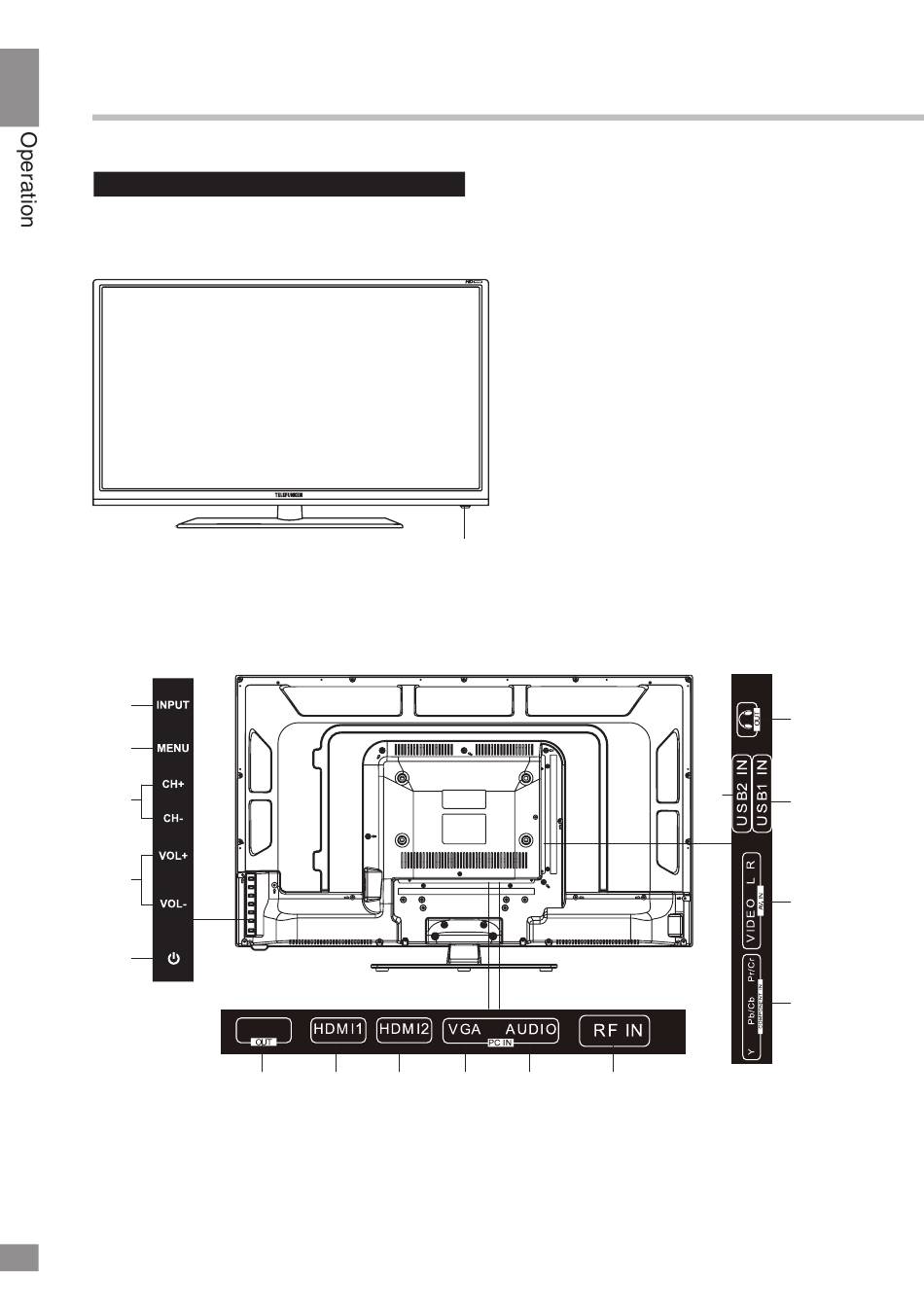

Control elements

Front panel

Back panel

2
3
4
5
6
6
6
CVBS
7 8 9
1. IR sensor/Power indicator
2. INPUT button
3. MENU button
4. CH+/CH- buttons
5. VOL+/VOL- buttons
6. POWER/STANDBY button
7. Composite video output
8. HDMI1 input
9. HDMI2 input
10. PC video input (VGA)
11. PC audio input
12. TVRF antenna input
13. Component (YPbPr) video input
14. Composite AV inpput
15. USB1 port
16. USB2 port
17. Earphone output
1
10 11 12
17
16
15
14
13
