Connection

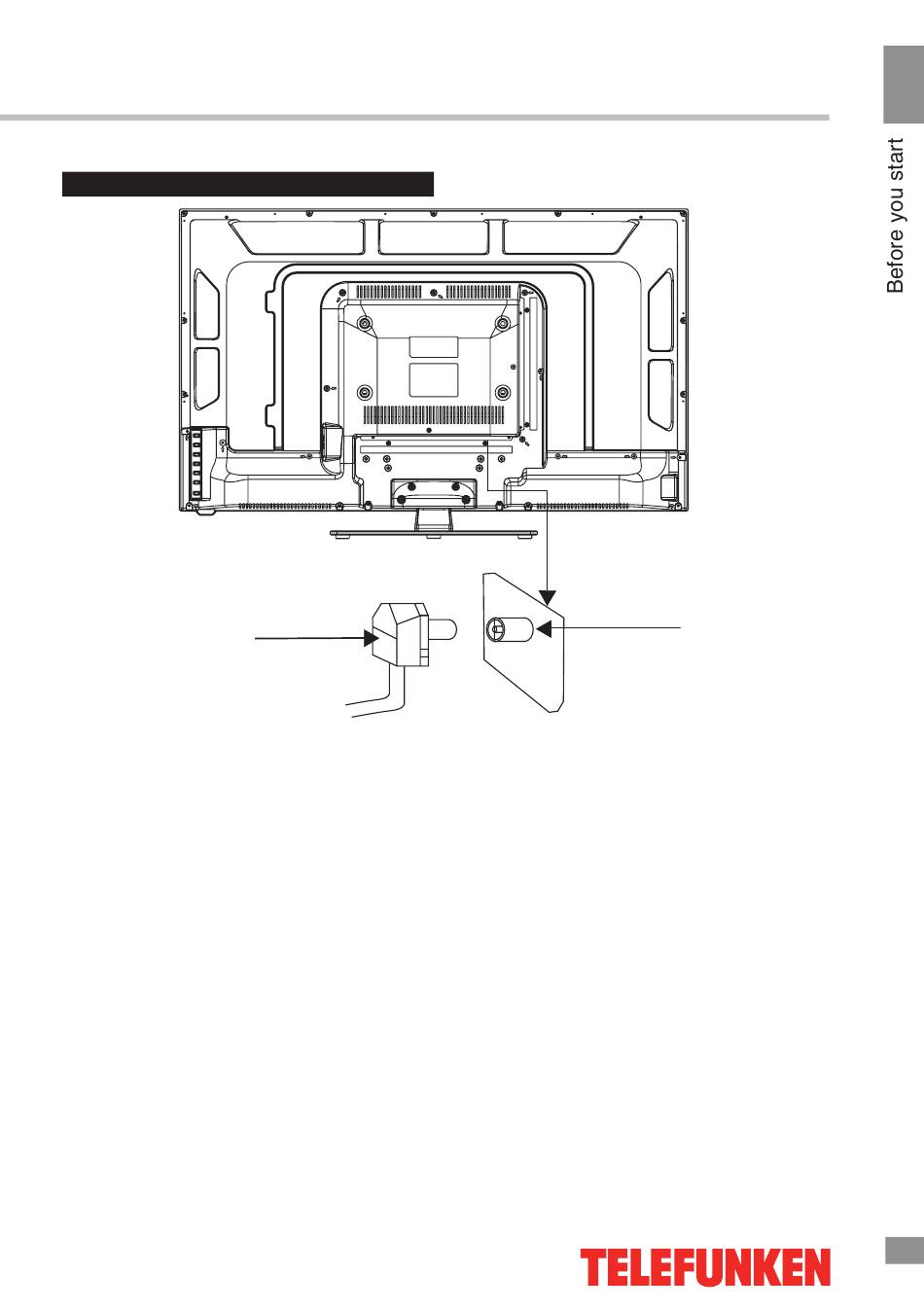

Antenna cable connector

Outdoor Antenna Connection

Use 75Ω coaxial cable plug or 300-75Ω
impedance converter to plug in antenna input
terminal on the rear of the cabinet.

Other connections

• Connect the audio sources (Including
DVD, VCDR, CAMCORDER and PC) to the
proper Audio input jacks 'L' and 'R'.
• Connect the video source to the
Composite video jack by RCA cable.
• Composite output is intended for
connecting external devices with AV input
interface (e.g. monitors, other TVs, etc.).
• Component input Y/Pb/Pr is intended
to receive component video signal from the
external device.
• Connect the AC power cord to the power
outlet.
• When using the LED as a computer
Before you start
TVRF antenna jack
screen, connect the PC to the VGA jack from
the monitor by the relevant cable (not included).
• This unit has PC audio in jack. Connect
this jack to PC main unit with related audio
cable in PC mode and adjust the volume to
what you want.
• If the video source has a HDMI output
jack, you can connect the signal to the monitor
by the HDMI cable (not included).
• Connect your headphones or earphones
(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.
