Operation

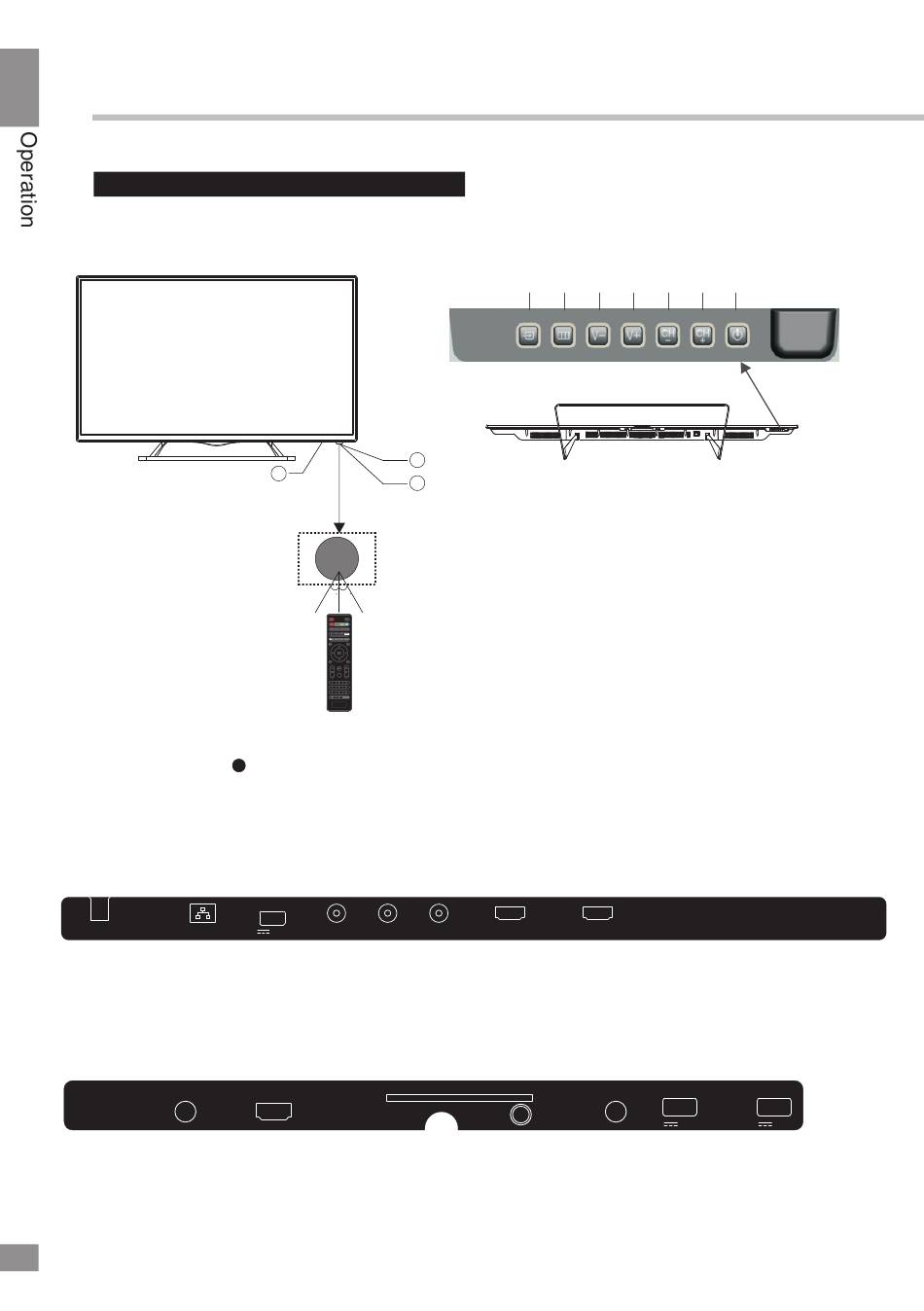

Control elements

Front panel

1. Remote control sensor
2. Indicator LED: RED
3. Key board
REAR AV Connections
AC-INPUT
100-240V~50/60Hz LAN
All the terminals are(from left to right):
AC Power Socket, LAN PORT, USB PORT, VIDEO INPUT, AUDIO INPUT, HDMI1,
HDMI2.
REAR AV Connections(SIDE)
R F
All the terminals are (from left to right):
TVRF ANTENNA INPUT, HDMI3, CI, HEADPHONE, COAXIAL
OUTPUT, USB PORT, USB 3.0 PORT.
6
6
1
3
2
30 30
STANDBY
USB
VIDEO L
5V 500mA
COMMON INTERFACE(CI)
HDMI3
SOURCE MENU V-
1．SOURCE：
Display the input source menu.
2．MENU：
Display main MENU.
3．V-/V+
Adjust sound level.
In MENU mode, press"V+"or"V-"to
adjust the item that you selected.
4．CH+/CH-
In TV mode，press"CH+"or"CH-"to change
the channel up and down.
In MENU mode, press "CH+"or"CH-"to select
items.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
R HDMI1 HDMI2
COAXIAL
HEADPHONE
V+ CH- CH+ Standby
USB USB3.0
5V 500mA 5V 9 00mA
