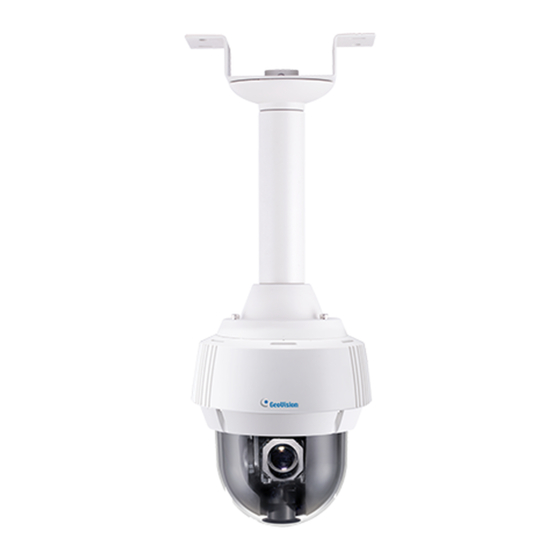

- Page 1 Quick Start Guide GV-Panoramic PTZ Camera Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. PPTZV10-QG-A Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
-
Page 3: Table Of Contents
Contents Note for Connecting to GV-VMS ............ii Note for Recording................iii Note for Installing Camera..............iv Optional Accessories................v 1. Introduction..................1 1.1 Packing List ......................2 1.2 Overview........................3 2. Installation..................4 3. Connecting the Camera ..............10 4. Accessing the GV-Fisheye Camera ..........12 4.1 Web Browser ......................12 4.2 Looking Up the Dynamic IP Address..............13 4.3 Configuring the IP Address..................15 5. -
Page 4: Note For Connecting To Gv-Vms
Note for Connecting to GV-VMS The GV-Panoramic PTZ IP Camera is designed to work with GV-VMS, a video management system. Note the following when the camera is connected to GV-VMS: 1. By default, the images are recorded to the memory card inserted in the GV- Panoramic PTZ IP Camera. -
Page 5: Note For Recording
Note for Recording 1. By default, the images are recorded to the memory cards inserted in the GV-PPTZ Camera. Make sure the Write recording data into local storage option (see 4.1.1 Video Settings, Chapter 4, GV-Panoramic PTZ Camera User’s Manual) is enabled. If this option is disabled, the camera will stop recording to the memory card while the live view is accessed through Web browsers or other applications. -
Page 6: Note For Installing Camera
Note for Installing Camera When installing GV-Panoramic PTZ IP Camera, be sure that: The camera is set up above the junction box to prevent water from entering the camera along the cables. Any PoE, power, audio and I/O cables are waterproofed using waterproof silicon rubber or the like. -
Page 7: Optional Accessories
The GV-PA901 is a Power over Ethernet (PoE) adapter GV-PA901 designed to provide power to the IP device through a single Power over Ethernet (PoE) Ethernet cable to GV-PPTZ7300. Adapter GV-Mount Accessories The GV-Mount Accessories provides a comprehensive lineup of accessories for installation on ceiling, wall and pole. For details, see GV-Mount Accessories Installation Guide on the software DVD. -
Page 8: Introduction
Introduction 1. Introduction Welcome to the GV-Panoramic PTZ Camera Quick Start Guide. In the following sections, you will learn the basic installations and configurations of GV-Panoramic PTZ Camera. For a detailed user manual, see the GV-Panoramic PTZ Camera User’s Manual on the Software DVD. -
Page 9: Packing List
1.1 Packing List Panoramic PTZ Camera Data Cable Mounting Bracket Mounting Cap Tube 2 mm Hex Key 3 mm Hex Key 5 mm Hex Key RJ-45 Connector Rubber ring Desiccant Pack x 2 ... -
Page 10: Overview
Introduction 1.2 Overview Name Function Flashes when the camera is powering on and loading default Status LED settings. Default Button Resets all configurations to default factory settings. Speed Dome SD Inserts a micro SD card (SD/SDHC, version 2.0, Class 10) to Card Slot store recording data from the speed dome. -
Page 11: Installation
2. Installation GV-Panoramic PTZ Camera can be mounted on the ceiling using the supplied Straight Tube Mount. Make sure the ceiling has enough strength to support the camera and the mount. Required items: • Screws for ceiling x 4 (Self-prepared) Optionally extend with: •... - Page 12 Installation 1. Insert the desiccants to the camera. A. Remove the camera cover using the 3 mm hex key. Insert your SD cards into the SD card slots for the fisheye camera and the speed dome. Insert one desiccant pack to the indicated place. IMPORTANT: Be sure the desiccant is concealed in the camera within 2 minutes of opening the desiccant pack.
- Page 13 2. Assemble the supplied mounting bracket, tube and mounting cap by rotating the parts together. 3. Make sure the tubes are properly screwed. Tighten the screws using the 2 mm hex key. 4. Connect the cables to the camera. A. At the back of the camera, remove the cap and use the 3 mm hex key to remove the mounting plate.
- Page 14 Installation Slide the cap and components through the Ethernet cable as shown below, and attach the supplied RJ-45 connector to the cable. Insert the Ethernet cable to the LAN port, move the cap and the components toward the LAN port, and secure the cap tightly. Slip the rubber ring on the data cable and then pass the pin connectors of the data cable through the mounting plate.
- Page 15 Fasten the data cable with the mounting plate and the rubber ring. Insert the pin connectors of the data cable to the indicated area. G. Secure the mounting plate with the 3 mm hex key. 5. Thread the cables through the tube. 6.
- Page 16 Installation Push the rivets into the holes on the mounting cap and rotate clockwise to lock the position. Rotate the camera onto the mounting cap and secure using the 5 mm hex key. 7. Secure the assembled camera to the ceiling with 4 self-prepared screws. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
-
Page 17: Connecting The Camera
3. Connecting the Camera The GV-PPTZ7300 comes with a data cable that allows you to connect to the power adapter, microphone, speaker, and any I/O devices. Follow the steps below to connect the camera. Connect Power using one of the following methods: ... - Page 18 Hub / Router. Connect one end of an Ethernet cable to the PoE 10 / 100 port on the GV-PA901, and the other end to the GV-PPTZ7300. Connect the GV-PA901 Power Adapter to the power outlet.
-
Page 19: Accessing The Gv-Fisheye Camera
4. Accessing GV-Panoramic PTZ Camera 4.1 Web Browser Once installed, your camera is accessible over the network. Make sure your PC has good network connection, and meet the following requirement. Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012 R2 64-bit V15.10.1.0 with patch files or later versions GV-VMS... -
Page 20: Looking Up The Dynamic Ip Address
LAN. Click the Name or Mac Address column to sort. You will see two devices listed: GV-PPTZ7300-FE and GV-PPTZ7300-SD. 3. Click on the IP address of GV-PPTZ7300-FE and select Web Page. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com... - Page 21 4. The login page appears. 5. Type the default ID and password admin and click Apply to login. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
-
Page 22: Configuring The Ip Address
2. In both Login and Password fields, type the default value admin. Click Apply. 3. In the left menu, select GV-PPTZ7300 – FE under Camera Setting. You will be directed to the Web interface of the fisheye camera. Available from A1 Security Cameras... - Page 23 4. Type the default value admin again and click Apply 5. Select Static IP address. Type IP Address, Subnet Mask, Router/Gateway, Primary DNS and Secondary DNS in the Configure connection parameters section. 6. Click Apply. The integrated interface and fisheye interface are now accessible by entering the assigned IP address on the Web browser.
-
Page 24: The Integrated Web Interface
Once you log in the Web interface, you will see the live views of both the fisheye and the speed dome. To access the individual Web interface of the fisheye camera and the speed dome, select GV-PPTZ7300-FE or GV-PPTZ7300-SD under Camera Setting. You will be guided to its login page. ▼... - Page 25 4, GV-Panoramic PTZ Camera User’s Manual, to see instructions on the fisheye Web interface. GV-PPTZ7300-SD: Refer to 3.2 The Fisheye and Speed Dome Interface, Chapter 3 to 5, GV-Panoramic PTZ Camera User’s Manual, to see instructions on the speed dome Web interface.
-
Page 26: Fisheye View
The Web Interface 5.1 Fisheye View To enable the fisheye options, right-click the fisheye live view and select Geo Fisheye. Once enabled, you can click on the fisheye live view, and the camera will turn toward the selected location. Right-click the image again and select Fisheye Option to see the following options. ... - Page 27 Camera Position: This option is only available under 360 View. You can temporarily set the camera position to Ground instead of the default Ceiling if you want to test the camera view prior to installing the camera on the ceiling. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
-
Page 28: Speed Dome View
The Web Interface 5.2 Speed Dome View No. Name Function 1 Play Plays the live video of the fisheye camera and the speed dome. 2 Stop Stops playing video from the fisheye camera and the speed dome. 3 Microphone Talks to the surveillance area from the local computer. 4 Speaker Listens to the audio around the camera. -
Page 29: Upgrading System Firmware
GeoVision periodically releases the updated firmware on the website. To load the new firmware into the GV-Panoramic PTZ Camera, follow the instructions below. Important: For GV-PPTZ7300, you need to go through the firmware update process twice: once for the fisheye camera and once for speed dome. -
Page 30: Restoring To Factory Default
The Web Interface 7. Restoring to Factory Default You can restore the camera to factory default settings using the Web interface or directly on the camera. 7.1 Using the Web Interface 1. In the left menu, select Management and select Tools. 2. Under the System Settings section, click the Load Default button.
