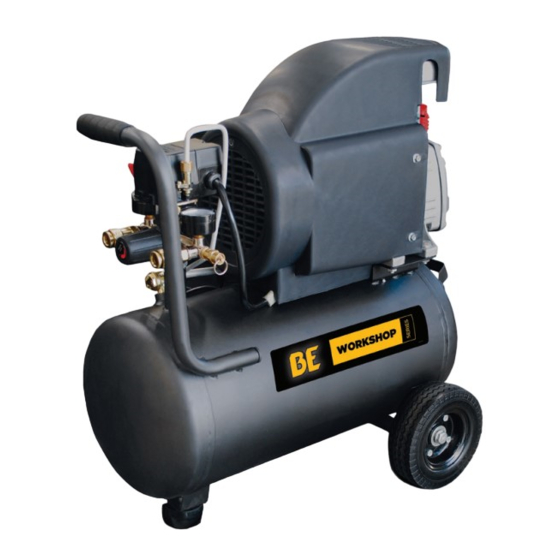

BE AC206 User Manual

Portable air compressors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PORTABLE AIR
COMPRESSOR
AC206
USER MANUAL
BEPOWEREQUIPMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC206 and is the answer not in the manual?

Questions and answers

Related Manuals for BE AC206

Summary of Contents for BE AC206

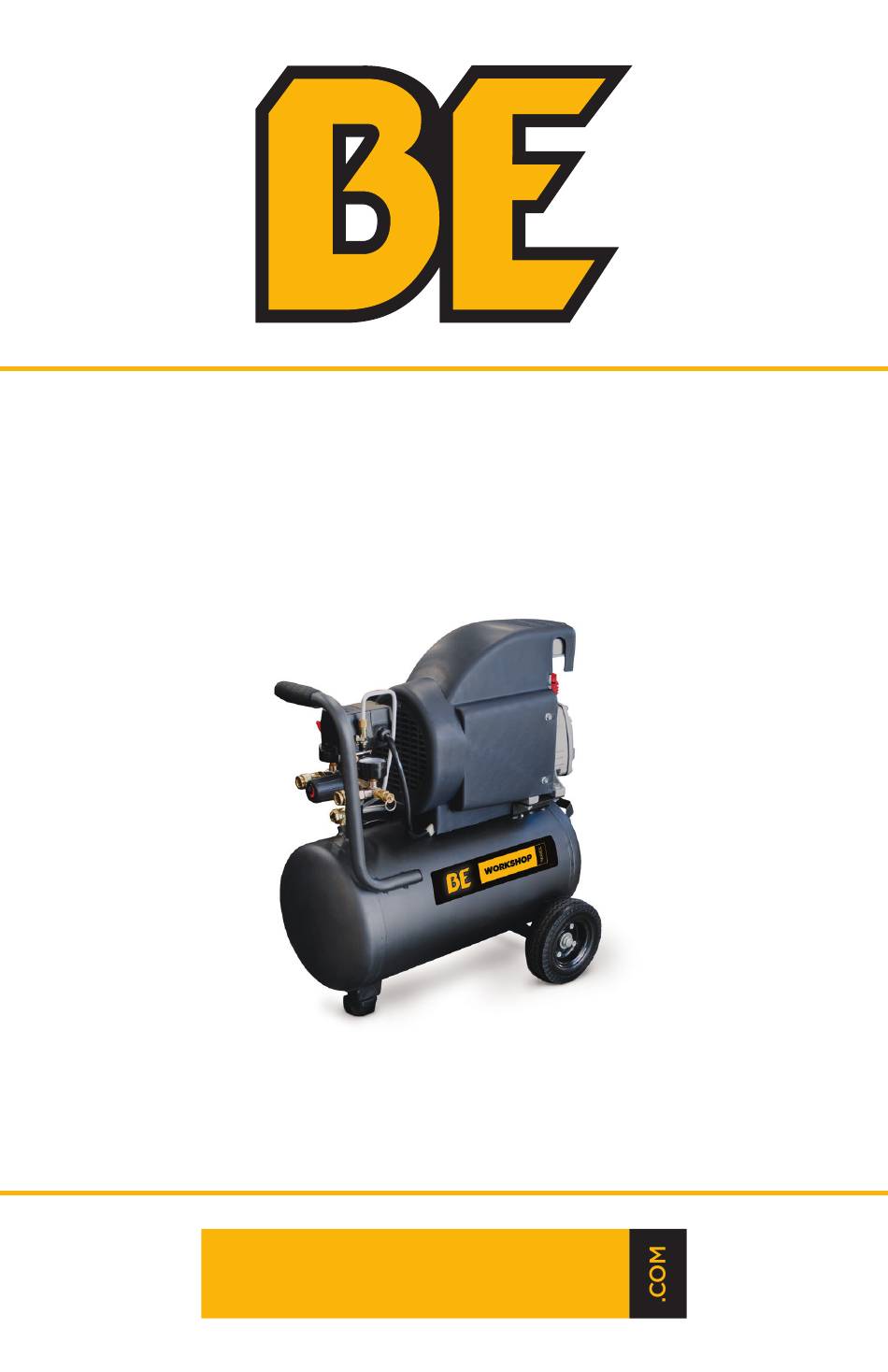

  • Page 1 PORTABLE AIR COMPRESSOR AC206 USER MANUAL BEPOWEREQUIPMENT...
  • Page 2 Introduction Using the Operator’s Manual Specifications Product Identification Record Identification Numbers Safety Receipt and Inspection Safety Instructions Hazard Symbols and Meanings Air Tank Warning Fire Warnings Breathable Air Warning Electric Shock Warning Air Tools and Accessories Warning 10 General Safety Information 11 Spraying Precautions 11 Hose Precautions Installation &...
  • Page 3 Maintenance 18 Maintenance 18 Daily 18 Weekly 19 Monthly 19 3 Months or 500 Operating Hours 19 12 Months or 1000 Operating Hours Caution 19 Caution Exploded View 20 Exploded View Diagram 21 Exploded View List List of Goods 22 List of Goods Troubleshooting Troubleshooting Chart...

  • Page 4: Specifications

    Using the Operator’s manual Thank you for purchasing a BE Air Compressor. Please take time now to read through this manual so you better understand the machine’s operation, maintenance and safety precautions.

  • Page 5: Record Identification Numbers

    Record Identification Numbers COMPRESSOR If you need to contact an Authorized Dealer or Customer Service line (1-866-850-6662) for information on servicing, always provide the product model and identification numbers. You will need to locate the model and serial number for the machine and record the information in the places provided below.

  • Page 6: Receipt And Inspection

    If you discover damage after receiving the air compressor (concealed damage), the carrier must be notified within 15 days of receipt and an inspection must be requested by telephone with confirmation in writing. On concealed damage claims, the burden of establishing that the compressor was damaged in transit reverts back to the claimant.

  • Page 7: Safety Rules

    Save these Instructions SAFETY RULES This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and/or a safety message to alert you to hazards.
  • Page 8 Do not direct paint or other spray material towards the compressor. Read and follow all safely instructions for the material you are spray- ing. Be sure to use an approved respirator designed for use with your specific application. WARNING...
  • Page 9 This air compressor is powered by electricity and should never be used without properly grounded electrical connections. Do not use in wet or damp locations or expose to rain.

  • Page 10: General Safety Information

    1. Read all manuals included with this product carefully. Be thoroughly familiar with the controls and the proper use of the equipment.

  • Page 11: Spraying Precautions

    14. Fast moving air will stir up dust and debris which may be harmful. Release air slowly when draining moisture or depressurizing the compressor system.

  • Page 12: Installation And Grounding

    Installation and Grounding NSTALLATION AND LOCATION The compressor must be used on a stable level surface. The air compres- sor must be used in a clean and well-ventilated area. The compressor requires an unobstructed airflow and must be located a minimum of 18 inches from any walls or other obstructions.

  • Page 13: Extension Cords

    Be sure your extension cord is rated to allow sufficient flow to motor. Refer to the guide for minimum gauge required for extension cords. Extension Cord Length Wire Size (A.W.C.)
  • Page 14 feautres Read this operator’s manual and safety rules before operating your compressor. 1. Main Compressor 2. Pressure Switch 3. Outlet Valve 4. Pressure Gauge 5. Regulator 6. Wheel 7. Discharge Pipe 8. Air Tank 9. Fan Cover...
  • Page 15 2. Place air compressor on a flat, level surface. 3. Pour supplied oil into crankcase until the oil level reaches the red dot in the oil level sight glass. Be careful not to overfill. 4. Install oil fill plug, supplied for compressor operation, before starting compressor.

  • Page 16: Operation

    Breather Cap Initial Start Up PREPERATION FOR STARTING 1. Pump is shipped with oil. Remove the oil cap and check pump oil 1. The place to set the compressor should be clean, dry and ventilated. level. Add SAE 30 non-detergent pump oil (Part #4043), if neces- 2. Keep the use voltage within±5% of rated. sary. Hand tighten breather cap. 3. Keep the oil level in the red circle leveler.

  • Page 17: Operation And Adjustment

    Pull up the knob of regulation valve and turn it clockwise or counterclockwise to increase or decrease the pressure (Fig.3). 3. The the compressor in running need be stopped only set the knob of pressure switch in positing off.

  • Page 18: Maintenance

    All units contain maintenance parts (e.g. lubricating oil, filters, separators), which are periodically replaced. These used parts may be, or contain, substances that are regulated and must be disposed of in accordance with local, state, and federal laws and regulations.
  • Page 19 7. If the release valve doesn’t work as motor stopped, find the cause immediately so as not to damage motor. 8. Lubricating oil must be clean, oil level should be kept in the score of oil ruler. 9. Disconnect the plug to cut off power supply and open the outlet valve.

  • Page 20: Exploded View Diagram

    Exploded View EXPLODED VIEW DIAGRAM...
  • Page 21 EXPLODED VIEW LIST OF PARTS Item Description Item Description Bolt M8 motor cover cylinder head bolt M5 Air filter Wind leaf cylinder seals circlip valve plate connector valve plate gasket fan cover valve clack nut M8 flap cylinder capacitance cylinder gasket thermal protector Gas Ring bolt M5x12...

  • Page 22: List Of Goods

    LIST OF GOODS Designation Air compressor Air filter Breather Rubber gasket Operation manual...

  • Page 23: Troubleshooting Chart

    Troubleshooting Chart If you are experiencing a problem that is not listed in this chart, or have checked all the possible cause listed and you are still experiencing the problem, see your authorized dealer. Trouble Possible causes Remedies Motor unable 1.

  • Page 24: Power Equipment

    POWER EQUIPMENT If you need assistance with the assembly or operation of your Compressor please call 1-866-850-6662...
