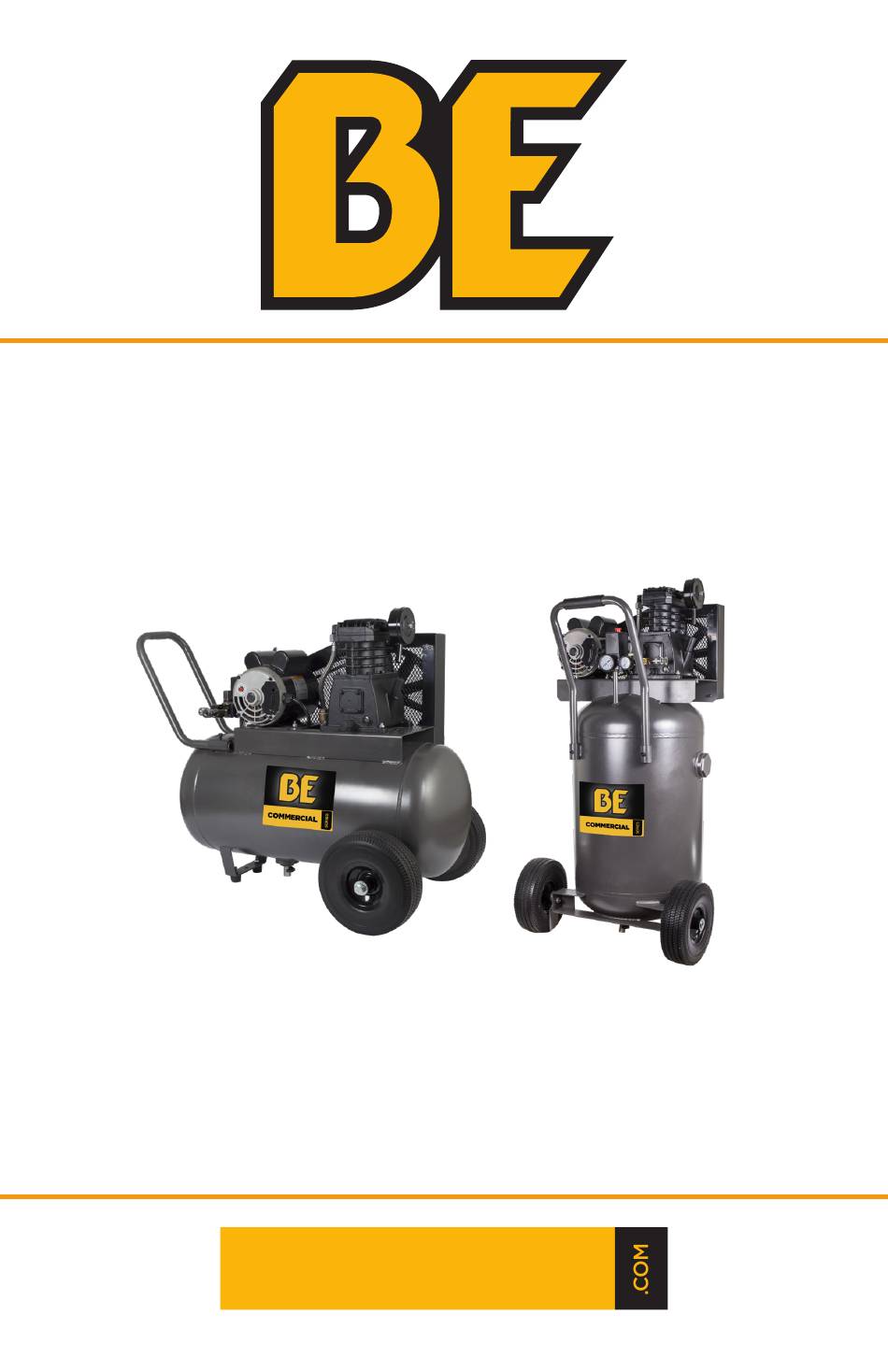

- Page 1 PORTABLE AIR COMPRESSOR AC3220B AC3230B USER MANUAL BEPOWEREQUIPMENT...
- Page 2 Receipt and Inspection Safety Instructions Hazard Symbols and Meanings Air Tank Warning Fire Warnings Breathable Air Warning Electric Shock Warning Air Tools and Accessories Warning 10 General Safety Information 11 Spraying Precautions 11 Hose Precautions Components 12 AC3220B 13 AC3230B...
- Page 3 Starting 14 Preparation for Starting Operation 15 Operation and Adjustment Caution 16 Caution Maintenance 17 Maintenance Troubleshooting 18 Troubleshooting Exploded View 19 AC3220B 20 AC3220B Parts List 21 AC3230B 22 AC3230B Parts List...
-
Page 4: Specifications
The manufacturer reserves the right to make improvements in design and/or changes in specifications at any time without incurring any obligation to install them on units previously sold. SPECIFICATIONS Item Data Model AC3220B/AC3230B Power 3.0HP Voltage 120V Frequency 60Hz Motor Poles... -
Page 5: Record Identification Numbers
Record Identification Numbers COMPRESSOR If you need to contact an Authorized Dealer or Customer Service line (1-866-850-6662) for information on servicing, always provide the product model and identification numbers. You will need to locate the model and serial number for the machine and record the information in the places provided below. -
Page 6: Receipt And Inspection
If you discover damage after receiving the air compressor (concealed damage), the carrier must be notified within 15 days of receipt and an inspection must be requested by telephone with confirmation in writing. On concealed damage claims, the burden of establishing that the compressor was damaged in transit reverts back to the claimant. -
Page 7: Safety Rules
Save these Instructions SAFETY RULES This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and/or a safety message to alert you to hazards. - Page 8 Do not direct paint or other spray material towards the compressor. Read and follow all safely instructions for the material you are spraying. Be sure to use an approved respirator designed for use with your specific application. WARNING...
- Page 9 This air compressor is powered by electricity and should never be used without properly grounded electrical connections. Do not use in wet or damp locations or expose to rain.
-
Page 10: General Safety Information
Read all manuals included with this product carefully. Be thoroughly familiar with the controls and the proper use of the equipment. - Page 11 14. Fast moving air will stir up dust and debris which may be harmful. Release air slowly when draining moisture or depressurizing the compressor system.

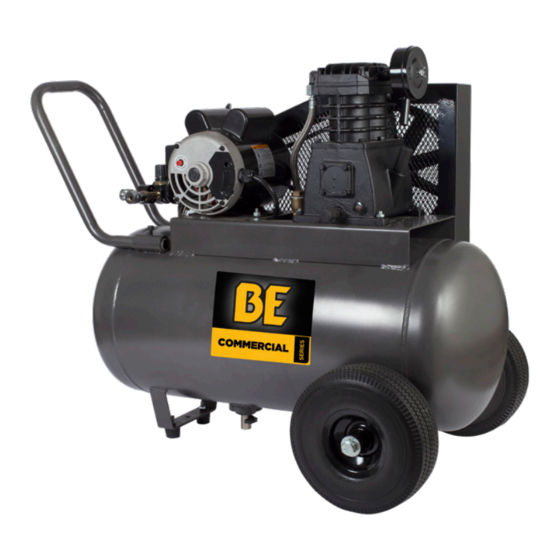

- Page 12 Components AC3220B 1. Feet 2. Tank 3. Pressure Gauge 4. Coupler 5. Handle 6. Pully Shroud 7. Filter 8. Motor 9. Safety Valve 10. Wheels 11. Drain Plug...
- Page 13 Components AC3230B 10. Safety Valve 1. Feet 11. Tank Port 2. Tank 12. Handle 3. Coupler 13. Wheels 4. Pressure Switch 14. Drain Plug 5. Pump Head 6. Filter 7. Pully Shroud 8. Motor 9. Pressure Gauge...
-
Page 14: Preparation For Starting
Starting PREPARATION FOR STARTING 1. The place to set the compressor should be clean, dry and ventilated. 2. Keep the oil level in the red circle leveler. 3. Recommend compressor oil use L-DAB68 over 10º,and use L-DAB46 below 10º. -
Page 15: Operation And Adjustment
Operation OPERATION AND ADJUSTMENT The output pressure of compressed air can be adjusted by regulating valve. Pull up the knob of regulation valve and turn it clockwise or counterclockwise to increase or decrease the pressure ON/OFF Regulating Valve Button Handle... - Page 16 7. If the release valve doesn’t work as motor stopped, find the cause immediately so as not to damage motor. 8. Lubricating oil must be clean, oil level should be kept in the score of oil ruler. 9. Disconnect the plug to cut off power supply and open the outlet valve.
-
Page 17: Maintenance
Maintenance 1. Clean crankcase and renew lubricating oil after the first 10 working hours. 2. Clean the oil level after every 20 working hours, and replenish if necessary (Fig.4) 3. Open drain cock under the tank to exhaust condensate after every 60 working hours. -
Page 18: Troubleshooting
Troubleshooting Trouble Possible causes Remedies Compressor 1. Moving parts burnt Check crankshaft, Stalling or due to lack of oil. bearing, connecting rod, Sticking 2. Moving parts damaged piston, piston ring, etc. or stuck by foreign body. Replace if necessary. 1. Loose connection or Terrible shake or 1. - Page 19 Exploded View AC3220B...
- Page 20 NO. DESCRIPTION QTY NO. DESCRIPTION QTY Air Tank Bolt Grip,Handle Pump Pressure Gauge Motor Bolt Safety Valve Washer Pressure Switch Six Angle Nut Nipple In-Six Angle Bolt Regulator Motor Pulley Pressure Gauge Moter T-branch pipe V-Belt Coupler Safety Guard Grip,Handle Safety Guard Foot Rubber Pad Washer...
- Page 21 Exploded View AC3230B...
-
Page 22: Description Qty
DESCRIPTION DESCRIPTION Air Tank In-Six Angle Bolt Grip,Handle Six Angle Nut Pressure Gauge Washer Safety Valve Motor Bolt Pressure Switch Check Vavle Nipple Unload copper Pipe Regulator Unload Elbow 0.2M Pressure Gauge Power Cord branch pipe Ele.Cable 0.65m drain plug Pres. - Page 24 THE POWER YOU NEED. If you need assistance with the assembly or operation of your Compressor please call 1-866-850-6662...
