Installation and Operating Instructions for Natural & LP Gas
18", 24" and 30/33" BURNER UNITS.
State and local codes may only allow operation of this appliance in a vented configuration. Check your local and state codes.
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS CAREFULLY AND WITHOUT
ERROR OR FAILURE TO HEED ANY AND ALL WARNINGS IN THESE INSTRUCTIONS CAN
RESULT IN AN EXPLOSION, FIRE OR THE PRODUCTION OF CARBON MONOXIDE GAS
WHICH CAN CAUSE PROPERTY DAMAGE, BODILY INJURY OR DEATH.
If the information in this manual is not followed exactly, a fire or explosion may result,
causing property damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch.
•
Do not use any telephone in your building.
•
Immediately call your gas supplier from a neighbor's telephone.
•
Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is in-
stalled. Provisions for adequate combustion and ventilation air must be provided. Refer to
page 4.
This appliance is intended for supplemental heating.
This appliance may be installed in an aftermarket, permanently located, manufactured (mobile) home,
where not prohibited by local codes. This appliance is only for use with the type of gas indicated on
the rating plate.
IMPORTANT: READ INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTAL-
LATION OF THIS ROOM HEATER.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
IM-149
10/2018

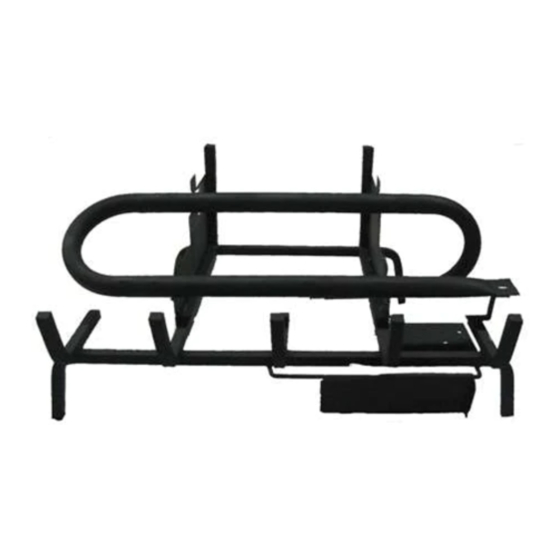

Unvented Gas Log Heater
HM2-IPI-ECO and HM2-MIL
ANSI Z21.11 2-2016 APPROVED / ANSI Z21.60-2017 CSA 2.26 2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Heatmaster HM2-IPI-ECO
Summary of Contents for Heatmaster HM2-IPI-ECO
- Page 1 Installation and Operating Instructions for Natural & LP Gas Unvented Gas Log Heater HM2-IPI-ECO and HM2-MIL 18", 24" and 30/33" BURNER UNITS. ANSI Z21.11 2-2016 APPROVED / ANSI Z21.60-2017 CSA 2.26 2017 State and local codes may only allow operation of this appliance in a vented configuration. Check your local and state codes.
- Page 2 Important safety information • Any change to this heater or its controls can be dangerous and void any warran- • Do not allow fans to blow directly into fireplace. Avoid drafts that alter burner flame patterns. • Do not use a blower insert, heat exchanger insert or any other accessory not ap- proved for use with this heater.
- Page 3 Important safety information cont Do not use this room heater if any part has been under water. Immediately call a qualified service technician to inspect the room heater and to replace any part on the control system and any gas control which has been underwater.
-
Page 4: Provisions For Adequate Combustion And Ventilation Air
PRODUCT SPECIFICATIONS MINIMUM SIZE FIREPLACE DIMENSIONS Gas Log Size 18" 24" 30/33" Dimension Height of Front Opening 15" 15" 15" Width of Front Opening 21 1/2" 26 1/2" 35 1/2" Depth 14" 14" 14" Width of Rear Opening 16” 21” 25”... - Page 5 General Installation Information The following formula can be used to determine the maximum heater rating per the definition of confined space: Counter BTU/HR= (L ) FT X (W)FT X (H)FT X 1000 Fireplace Example: Refer to Figure 1. Two (2) connecting rooms with and open area between , with the following dimensions.
- Page 6 CLEARANCE/ HEIGHT REQUIREMENTS 2 1/2 2 1/2 24 5/8 26" 18 5/8 28" 20 1/2 Heat resistant Heat resistant 22 1/2" 14 1/2 material material 8" Hood Figure 3. Figure 4. Minimum Mantel Clearance with No Hood. Minimum Mantel Clearance with Hood. Example: The bottom of a mantel may project from Example: A mantel may project from the wall the wall a minimum of 14”...
- Page 7 CLEARANCE/ HEIGHT REQUIREMENTS cont Heat resistant material ( minimum requirements) with wooden mantel or other combustible projection: 8" or more of 8” or more of heat resistant material heat resistant To install the heater with a wooden mantel, shelf or other combustible projection above, first measure material the heat resistant material shown in Figure 7.
-
Page 8: Fireplace Preparation
FIREPLACE PREPARATION Before fully installing the unit: • Turn OFF the gas supply to the fireplace or firebox. • Seal any fresh air vents and/or ash clean-out doors located on the floor or wall of the fireplace. If left unsealed, drafting may cause pilot outage or sooting. Use a heat resistant sealant. Do not seal the chimney flue damper. -
Page 9: Maintenance Of The System
MAINTENANCE OF THE SYSTEM Under normal use this appliance will require only limited cleaning. Constant airflow through this appliance will cause dust to collect on the burners, base and logs. An excessive build up of dust can cause the pilot and burners to operate incorrectly and produce high levels of carbon monoxide, a poisonous gas. To clean the burner and base, turn the control to OFF and allow the system to cool down. -
Page 10: Troubleshoot
HM2 MILLIVOLT TROUBLESHOOT- WARNING Turn appliance OFF and allow to cool before servicing. Only a qualified service person should service and/or repair the heater. Note: All troubleshooting items are listed in order of operation. OBSERVED PROBLEM POSSIBLE CAUSE REMEDY (Millivolt unit only) Igniter electrode positioned 1. -
Page 11: Troubleshooting
TROUBLESHOOTING HM2 MILLIVOLT Cont’ OBSERVED PROBLEM POSSIBLE CAUSE REMEDY (Millivolt unit only) Control knob not fully pushed in. Press in control knob fully. ODS/pilot lights, but flame goes out Control knob not pressed in After ODS/pilot lights, keep control when control knob is released. long enough. - Page 12 HM2 IPI ECO TROUBLESHOOTING OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Either the remote or switch are Missing or weak batteries at power Check batteries and replace if need- pressed to start the burner ignition supply box or remote. ed. Set the multimeter to DC volt- sequence and there is no function or Box is unplugged.
- Page 13 HM2 IPI ECO Cont’ TROUBLESHOOTING OBSERVED PROBLEM POSSIBLE CAUSE REMEDY When igniter button is pressed on the Gas supply turned off or equipment 1. Turn on the gas supply or open remote or switch pad, the pilot sparks shutoff valve is closed. equipment shutoff valve.
-
Page 14: For Your Safety Read Before Lighting
ECO Electronic Ignition FOR YOUR SAFETY READ BEFORE LIGHTING WARNING If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with an electronic ignition pilot. This pilot lights itself with either the manual on/off button or with the remote control transmitter that is provided. -
Page 15: Lighting Instructions
MILLIVOLT FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly a fire or explosion may result causing property damage, personal injury, or loss of life. A. This appliance is equipped with a push button piezo ignition device, which can be used to light the pilot. If the piezo fails to ignite the pilot, then follow the instructions for lighting pilot with match. -
Page 16: Unit Placement
UNIT PLACEMENT Place the entire unit system in the center of the fireplace to allow proper air flow on all sides of the unit. GAS PIPING AND GAS PRESSURE REQUIREMENTS Check the type of gas that is supplied to your fireplace. Use only the gas type indicated on the heat- er’s rating plate. - Page 17 INSTALLER: Please be sure the homeowner understands these key points. Periodically clean loose particles, dust and lint from pilot and front and rear burner ports. Clean burner air intake holes. Failure to do so may result in soot- ing and poor combustion. Logs and volcanic rock must be positioned correctly.
- Page 18 Regular Oak 18” Log Part Numbers: Regular Oak 24” Log Part Numbers Page 18...
- Page 19 Regular Oak 33” Log Part Numbers: Page 19...
- Page 20 Split Oak 18” Log Part Numbers: Split Oak 24” Log Part Numbers: Page 20...
- Page 21 Split Oak 33” Log Part Numbers: Page 21...
- Page 22 Cape Fear Oak Log Placement The bottom of the front & back logs are notched so they can lay on the grate properly. The top of the front & back logs are also notched. These notches are to ensure no flame impingement. 18”...
- Page 23 GUIDELINES FOR APPLICATION/MAINTENANCE OF ODS PILOTS Technical Application: 1. For accurate and consistent ODS intervention (cutoff) performance, the applied ODS must always be connected to a control valve having a preferred dropout rating of 80mA and not less than 65mA. 2.
- Page 24 Lava Rock (5 lb Bag) 16-1132 Spark Wire 16-1131 V Wire 08-1030 LP Regulator 08-1031 Natural Regulator 01-1070 On/Off Switch P- Lava Rock For parts, call your local dealer or Heatmaster, LLC 3625 Benson Rd Angier, NC 27501 919-331-0078 or 919-331-0079 Page 24...
- Page 25 01-1070 01-1070 Peizo 11-1166 11-1166 11-1166 Peizo Wire 16-1130 16-1130 16-1130 When ordering, please include complete part number, part name and description. Parts may be ordered directly from: HEATMASTER, LLC. 3625 Benson Road Angier, NC 27501 (919) 639-4568 Page 25...
- Page 26 All refractory cement logs manufactured by Heatmaster LLC have a lifetime warranty against breakage due to heat to the original owner in the original installation. All other logs supplied from Heatmaster LLC have a 2 year warranty against breakage due to heat to the original owner in the original installation. All metal parts, including burners and grate assemblies, are warranted for 5 years.
