Heatmaster A450 Installation Manual

Flue details
Fluing your Heatmaster Gas fireplace.
The Heatmaster double skin flue kit, into timber and plaster must have
clearance of 25mm from any combustible material. Be sure the inner flue
crimped end faces down while the outer flue crimped end faces up. The first
and last length of flue must have ventilation holes, these cool the flue down
by allowing air to travel in between the two skins. Be sure to pop rivet (or use
self-tapers) and silicon flue lengths together along with the cowl. The flue
must protrude above the roofline by no less than 600mm with nothing
obstructing within 3600mm. (See diagram 3B)

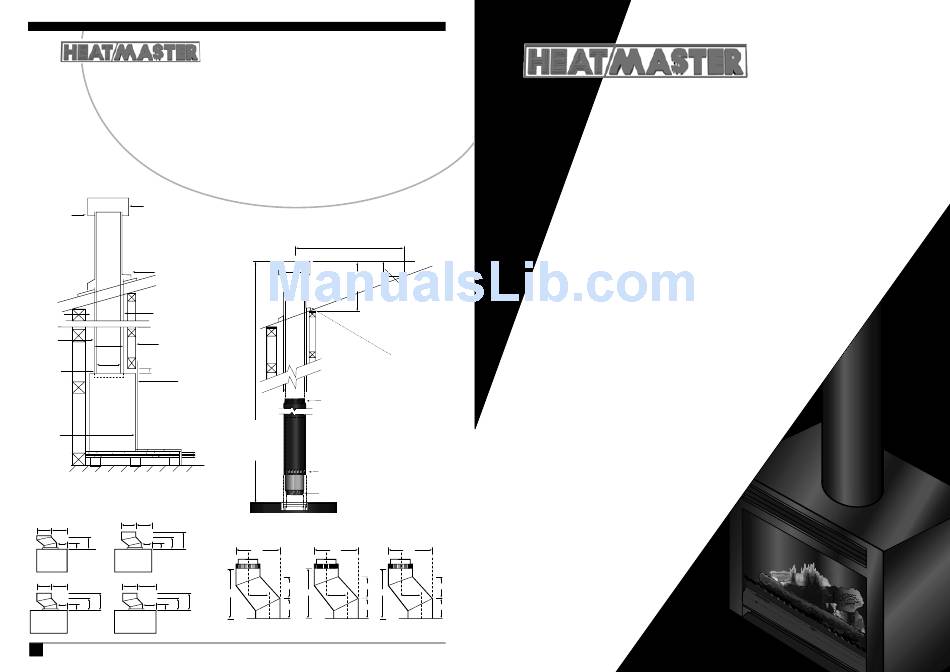

Fig 3A - Flue installation
Gas Cowl
Ventilation holes
in outer flue or
cowl
Flashing
ROOF
Ceiling void
25mm from 25mm from
combustible
combustible
material
material
Outer
2nd skin
Framing
flue
sit on top
50 mm on edge
of box
Inner
flue
25 mm clearance
Spacers on
inside of outer Cover clearance
flue to ensure with desired fascia
25mm clearance
from inner flue to
outer flue
Front of
unit
Fig 3C - Off sets and Clearances
230 300
200 300
100 300 390
100
260
105 110
450 650
250 300 250 330
130 430
100 340 430
340
150 150
750 900
4
Installation of gas fireboxes
Fig 3B - Flue Roof Clearance
Situation "A" less that 3.6 Metres
Situation "B" greater than 3.6 Metres
Situation "B"
600 min
Situation "A"
above roof
600 min above
ROOF
roof 3.6 m away
Ceiling void
Silicon flashing
to ensure no water
can enter roof line
Outer Flue
Crimp end faces up
Min Flue
height
3.6 m
from top
of unit
Ventilation Holes
Inner Flue
Crimp end faces down
Firebox
380 420 440
190 190
200 200
470 470 480
190 190
A 450 A 650 A 750 and 900
THE "A" SERIES
Standard Insulated
Heatmaster Decorative Gas
Fireplace Installation Guide
Heatmaster
National Office
2/9 Nicole Close Bayswater Victoria 3153
Phone: 03 9761 7130 Fax: 03 9761 7134
Heatmaster
NSW, QLD, ACT
2/23 Victoria Avenue Castle Hill NSW 2154
Phone: 02 9894 7950 Fax: 02 9894 7265
www.heatmaster.com.au
190
200
200
Decorative Gas Fireplaces
