Heatmaster A series Installation Manual

Flue details
Fluing your Heatmaster fireplace.
The Heatmaster double skin flue kit, into timber and plaster must have clear-
ance of 25mm from any combustible material. Be sure the inner stainless steel
flue crimped end faces down while the outer galvanized flue crimped end faces
up. The first length of galvanized flue must have ventilation holes at the bottom;
these cool the flue down by allowing air to travel in between the two skins.
Be sure to pop rivet (or use self-tapers) each stainless and galvanized flue
length together along with the cowl.
The flue must protrude above the roofline by no less then 600mm
with nothing obstructing within 3600mm.

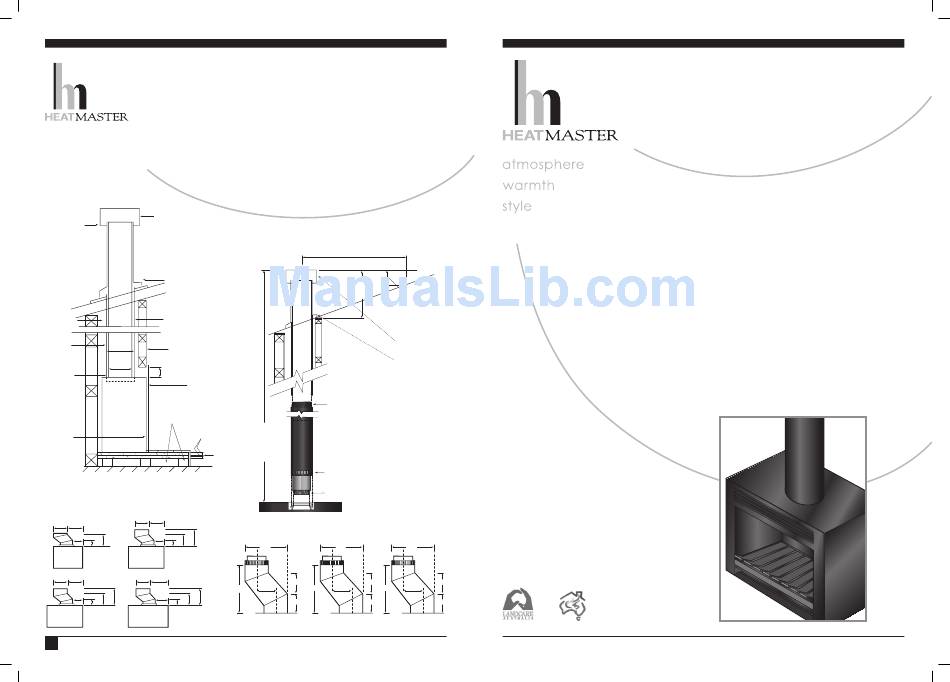

Fig 3A - Flue installation
Add Cowl
Ventilation holes
in outer flue or
cowl
Flashing
ROOF
Ceiling void
25mm from
25mm from
combustible combustible
material material
Outer
2nd skin
Framing
Gal flue
sit on top
50 mm on edge
of box
Inner
SS flue
100 mm clearance
Spacers on
inside of gal flue
Cover clearance
to ensure 25mm
with desired fascia
clearance from
inner flue to
outer flue
25 mm ventilated
air gap with non
combustable
spacers
Front of
6 mm fibre
unit
cement sheet
1 mm
steel sheet
combustable floor
Fig 3C - Off sets and Clearances
230 300
200 300
100 100 300 390
260
105 110
450 650
250 300 250 330
430
100 340 430 130
340
150 150
750 900
4
Installation of fireboxes
(See diagram 3B)
Fig 3B - Flue Roof Clearance
Situation "A" less that 3.6 Metres
Situation "B" greater than 3.6 Metres
Situation "B"
600 min
Situation "A"
above roof
600 min above
ROOF
roof 3.6 m away
ADD Cowl
(see manufacturer
for other cowl options)
Ceiling void
Silicon flashing
to ensure no water
can enter roof line
Gal Flue
Crimp end faces up
Min Flue
height
3.6 m
from top
of unit
Ventilation Holes
Stainless Steel Flue
Crimp end faces down
Firebox
380 420 440
190 190
220 470 220 480 220
470
190 190
A 450 A 650 A 750 and 900
Standard Insulated
Heatmaster Fireplace
