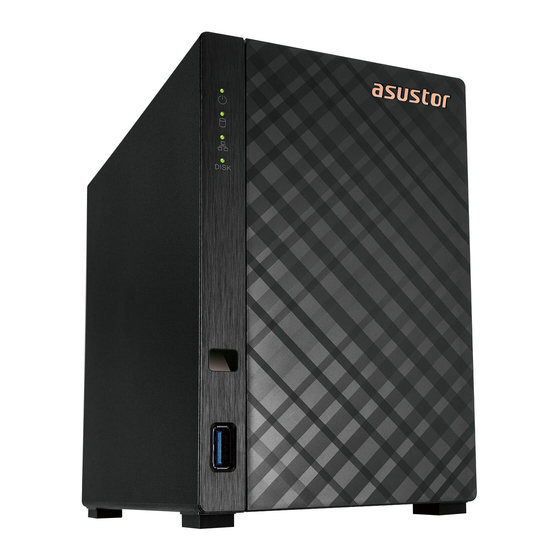

- Page 1 Quick Installation Guide Applicable Models: AS1102T/AS1104T Ver.2.3.0903 (2015-3-2) Ver. 4.0.0201...
-
Page 2: Table Of Contents
Table of Contents Notices ..............................3 Safety Precautions ........................... 4 1. Package Contents ..........................5 2. Optional Accessories ........................... 7 3. Hardware Installation Guide ....................... 8 Tools Needed for Hard Disk Installation ....................8 Hard Disk Installation ........................... 8 Securing the Power Cord ........................11 Connecting and Powering on the NAS .................... -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. -
Page 4: Safety Precautions
Safety Precautions The following safety precautions will increase the life of the NAS. Follow all precautions and instructions. Electrical Safety Unplug this product from the power source before cleaning. Use only the bundled power adapter. Using other power adapters may damage your device. Ensure that you plug the power adapter to the correct power input rating. -
Page 5: Package Contents
1. Package Contents Applicable Models: AS1102T, AS1104T Model Name AS1102T AS1104T Power Cord Adapter RJ45 Network Cable Power Cord Bracket Screws for use with 3.5”... - Page 6 Quick Installation Guide...
-
Page 7: Optional Accessories
2. Optional Accessories The items below may be purchased from the ASUSTOR Accessories Store http://shop.asustor.com. -
Page 8: Hardware Installation Guide
Tools Needed for Hard Disk Installation At least one 3.5 inch SATA hard disk. (For a list of compatible hard disks, please see http://www.asustor.com/service/hd?id=hd) Hard Disk Installation Remove the screws from the rear of the NAS as shown in the graphic below. - Page 9 AS1104T Installing 3.5 inch hard disks: Slide the hard disks all the way into the disk bay until they are firmly seated and connected with the SATA connector. AS1102T AS1104T...
- Page 10 Note: Please insert the hard disk into the HDD 1 slot shown in the graphic in order to have it initialized. Secure each hard disk with the screws provided as shown in the graphic below. AS1102T Note: If you wish to utilize the RAID function, it is recommended that you use hard disks of the same capacity in order to fully utilize the capacity of all hard disks.
-
Page 11: Securing The Power Cord
AS1104T Securing the Power Cord Note: You can use the provided cord bracket to secure the power cord in place, if you are concerned about the NAS power cord becoming detached when the NAS is moved. Take the cord bracket out of the accessories box. Attach the bracket to the power cord as shown in the graphic below. - Page 12 Remove the fan screw by unscrewing it counter-clockwise. AS1102T AS1104T Position the bracket over the hole for the removed fan screw. Secure the bracket in place by replacing the fan screw. AS1102T AS1104T...
-
Page 13: Connecting And Powering On The Nas
Connecting and Powering on the NAS Connect the NAS to its power supply. Connect the NAS to your router, switch or hub using an Ethernet cable. Press and hold down the power button located on the back of the device for 1 – 2 seconds until the yellow power LED indicator is lit. -
Page 14: Software Installation Guide
Download Center Installation Windows Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices. Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process. - Page 15 Mac Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices. Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process.
-
Page 16: Web Installation
Web Installation If you already know your NAS’s current IP address, you can open up a web browser and enter in your NAS’s IP address (for example: http://192.168.1.168:8000) to begin initialization. Please follow the instructions from the installation wizard to complete the configuration process. -
Page 17: Installation Using A Mobile Device
Installation Using a Mobile Device Search for “AiMaster” in Google Play or the Apple App Store. You can also scan the QR codes provided below. Download and install the AiMaster mobile app to your mobile device. AiMaster for Android AiMaster for iOS Make sure that your mobile device is connected to the same local network that your NAS is connected to. - Page 18 Select your NAS from the list that appears.
-
Page 19: Installation Using A Direct Connection
Select [Start Initialization] to begin installation. Follow the prompts and instructions to complete the configuration process. Installation Using a Direct Connection Please see section Troubleshooting for installation instructions. Shutting Down Your NAS Confirm the function settings for the power button as shown in the graphic below. When the power button is held down for 1.5 seconds you can decide whether to shut down the NAS or have it enter into sleep mode. - Page 20 2. Hold down the power button for 1.5 seconds. You should be able to hear a “beep” from the system buzzer. Let go of the power button and the NAS will either shut down or enter sleep mode depending on your configuration.
-
Page 21: Appendix
5. Appendix LED Indicators AS1102T AS1104T Power LED Indicator Network LED Indicator System Status LED Indicator Hard Disk LED Indicator Color Description State Indicator Green Steadily lit Power on Power Orange Flashes every 10 seconds LED night mode Flashing Powering on Green System Status... -
Page 22: Rear Panel
Network Port Troubleshooting Q: Why can’t I detect my ASUSTOR NAS using ASUSTOR Control Center? A: If you are having trouble detecting your NAS using ASUSTOR Control Center, please do the following: 1. Please check your network connection: Make sure that your computer and your NAS are part of the same local area network. - Page 23 Click on [Change adapter settings] in the left hand panel. Right-click on [Local Area Connection] and select [Properties].
- Page 24 Under the [Networking] tab select [Internet Protocol Version 4 (TCP/IPv4)] and click on [Properties]. Under the [General] tab select the [Use the following IP address] radio button. Set the [IP address] to 169.254.1.1 and the [Subnet mask] to 255.255.0.0 and then click on [OK].
- Page 25 Open up ASUSTOR Control Center to scan for your NAS. 4. If the above mentioned procedures have not managed to solve your problem, please contact your local ASUSTOR dealer or ASUSTOR Customer Service http://support.asustor.com.You are also encouraged to browse through the ASUSTOR Knowledgebase.
