CHIEF Ceiling Plates CMA-110 Installation Instructions

I N S T A L L A T I O N
The Ceiling Plates are designed for ease of installation with any height of drop ceiling. By using any length
of standard NPT 1½" pipe threaded both ends, you can extend the height capabilities to meet your needs.
WARNING: IMPROPER INSTALLATION MAY RESULT IN SERIOUS PERSONAL INJURY!
When mounting Chief Manufacturing accessories, the structural system and mounting method
MUST be capable of supporting 5 times the combined weight of the total installation.
The maximum weight to be installed on the ceiling plate is 500 pounds (226.8 Kg).

Unpack and check contents:

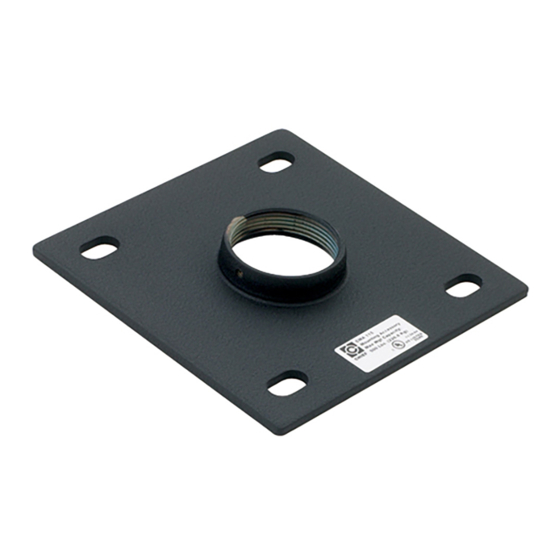

(1) 4" Flat Ceiling Plate CMA-105, OR
8" Flat Ceiling Plate CMA-110, OR
6" Flat Ceiling Plate CMA-115
(1) 3/32" Hex Wrench
1. Securely install the ceiling plate to the ceiling joists. (SEE WARNING ABOVE)
Bolt hole spacing is shown on Figure 1 (CMA 105), Figure 2 (CMA-110) and Figure 3 (CMA-115).
2. Thread your standard NPT 1½" pipe into coupler, tighten securely.
3. Install and securely tighten the #10-24 socket set screw.
4. Follow the Ceiling Mount Instructions for mating components or mounts.
Milestone AV Technologies, Inc., and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However,
Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in
connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness
or sufficiency of the information contained in this document.
Chief® is a trademark of Milestone AV Technologies, Inc. All rights reserved.
CEILING PLATES
CMA-105, CMA-110, CMA-115
Chief Manufacturing, a division of Milestone AV Technologies, Inc.
8401 Eagle Creek Parkway, Savage, MN 55378
• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918
I N S T R U C T I O N S
(1) 10-24 x 1/4" Button Head Security Screw
(1) Security Spinner
(1) 5/32" Security Hex Key
(1) #10-24 Socket Set Screw
8803-000011 Rev A
®2008 Milestone AV Technologies
06/08
