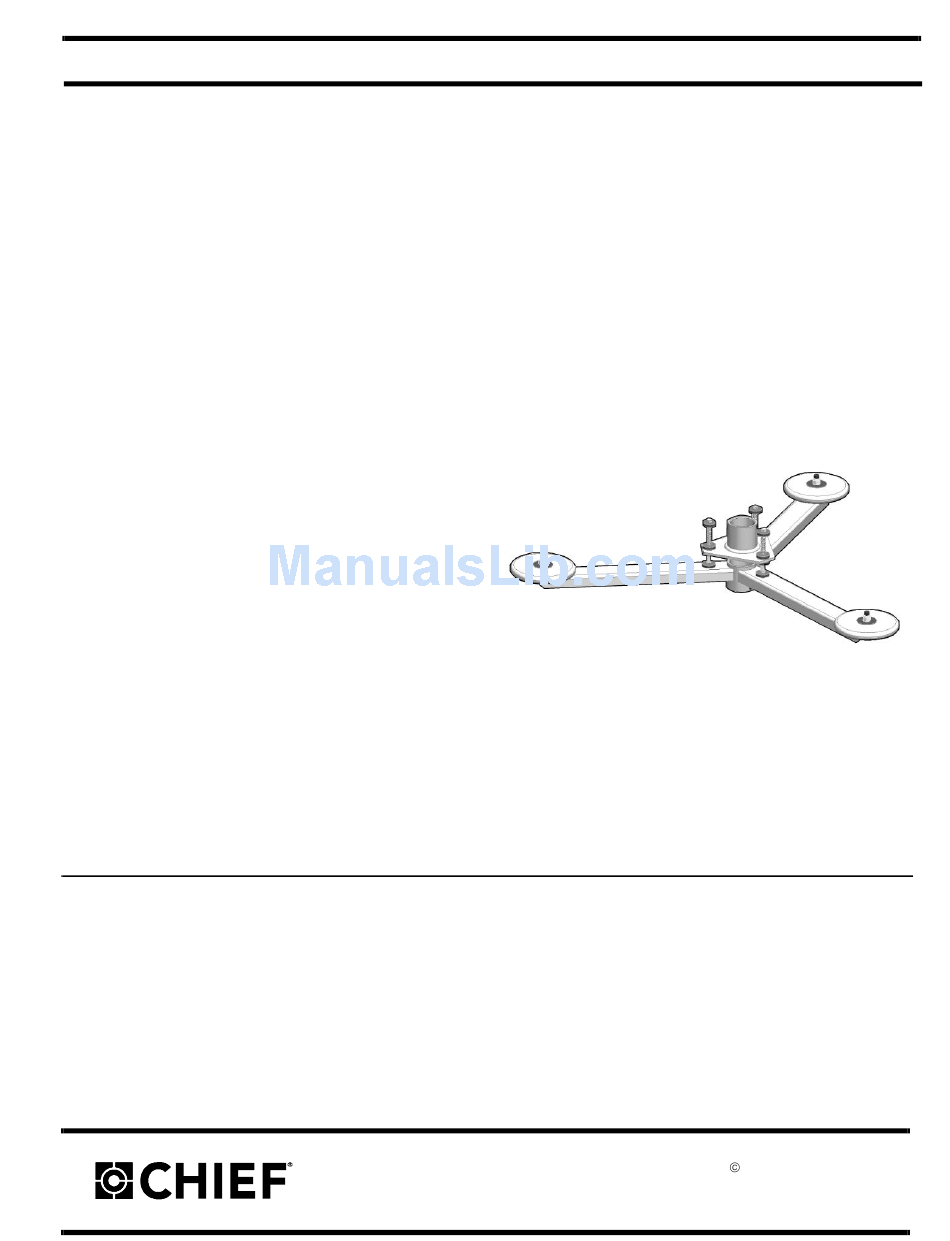

I N S T A L L A T I O N I N S T R U C T I O N S
Vibration Mount
Model CMA-347
The Chief CMA-347 Vibration Mount is designed to
dampen shock and vibration between a mounted item
and its structural mounting surface.
Any lengths of standard NPT 1 1/2" pipe, threaded on
both ends, can be used to extend the height capabilities
to meet your needs.
BEFORE YOU BEGIN
CAUTION: To prevent damage to the mount, which could void factory warranty and affect the attached equipment,
thoroughly study all instructions and illustrations before you begin the installation. Pay particular attention to the
"Important Warnings and Precautions" on Page 1.
•
The maximum weight to be installed on the CMA-347 mount is 35 pounds (15.88 Kg).
•
If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE 700
SAVAGE, MINNESOTA 55378 USA
8803-000044 (Rev. D)
2007 Chief Manufacturing
www.chiefmfg.com
09/07
Advertisement
Related Manuals for CHIEF Vibration Mount CMA-347
Summary of Contents for CHIEF Vibration Mount CMA-347
- Page 1 • The maximum weight to be installed on the CMA-347 mount is 35 pounds (15.88 Kg). • If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480. CHIEF MANUFACTURING INC. 1-800-582-6480 952-894-6280 FAX 952-894-6918 8401 EAGLE CREEK PARKWAY, STE 700 SAVAGE, MINNESOTA 55378 USA 8803-000044 (Rev.
-
Page 2: Table Of Contents
Model CMA-347 IMPORTANT WARNINGS AND CAUTIONS! WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions. CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions. -
Page 3: Parts
Installation Instructions PARTS Item Nomenclature CMA-347 Top CMA-347 Bottom WEIGHT, 2.5 Pound DAMPER, Sorbothane, Stepped DAMPER, Sorbothane WASHER, Flat, 1/4” SPRING, Small SPRING, Long Medium Gauge SPRING, Long Heavy Gauge 100* BUSHING, Vibration, Stepped NUT, Nylock, 1/4-20 BOLT, Hex Tap, 1/4-20 x 4” * Items 90 - 100 are included in the accessory pack and used when configuring mount for applications over 15lbs.. -
Page 4: Inspect Mount Before Installation
Model CMA-347 INSPECT MOUNT BEFORE INSTALLATION 1. Carefully inspect the mount for shipping damage (see figure 1). If any damage is apparent, call your carrier claims agent and do not continue with the installation until the carrier has reviewed the damage. NOTE: Read all assembly instructions before starting set-up or installation. -
Page 5: Set-Up
Installation Instructions Set-Up Set-up For 15 Pounds and Under The mount is shipped pre-assembled for applications under 15 pounds. If the total combined weight of the projector, projector mount, and lower mounting pipe is 15lbs or below, proceed with mount installation. (see MOUNT INSTALLATION on page 4) For applications over 15 pounds, proceed to “Set-up For Over 15 Pounds”. -
Page 6: Set-Up For Over 15 Pounds
Model CMA-347 Set-up For Over 15 Pounds The mount is shipped pre-assembled for applications under 15 pounds. If the mount is set-up to accommodate a weight of up to 15lbs (as shipped), it needs to be reconfigured to work properly with weights over 15lbs. WARNING: DO NOT attempt to reconfigure the mount while installed. -
Page 7: Mount Removal
Installation Instructions Mount Removal To remove the CMA 347 vibration mount: 1. Disonnect power cables and wires from projector. 2. Uninstall projector from projector mount (210). 3. Uninstall projector mount (210) from NPT 1 1/2” lower mounting pipe (200) following the instructions provided with the projector mount (210) 4. - Page 8 Model CMA-347 Installation Instructions...
