I N S T A L L A T I O N
CMA-440 Light Weight
Suspended Ceiling Kit

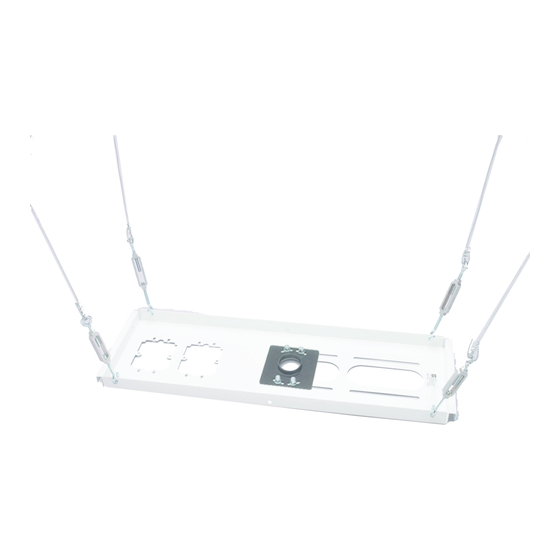

The CMA-440 Light Weight Suspended Ceiling Kit provides a
sturdy support for LCD/DLP hanging brackets (and certain
other products weighing less than 50 pounds) when installing
these products in a suspended ceiling.
The Kit includes a 8 x 24 in. (203 x 610 mm) reinforcing plate
that will be suspended by four tie wires from the true ceiling
above the suspended ceiling tiles. Turnbuckles allow the instal-
lation to be fine-tuned.
The reinforcing plate can be installed anywhere above a
2' x 2' (600 X 600mm) or 2' x 4' (600 X 1200mm) ceiling tile.
BEFORE YOU BEGIN
• CAUTION: To prevent damage to the Kit, which could affect or void the Factory warranty, and to the equipment that
will be attached to it, thoroughly study all instructions and illustrations before you begin the installation. Pay particu-
lar attention to the "Important Precautions" on Page 1.
• The maximum weight to be installed on the CMA-440 mount is 50 pounds (22.68 Kg).
• The ceiling tray is designed to fit above a conventional suspended ceiling system.
• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
• In certain installations, it may be easier to install the ceiling anchors (page 3) before you attach the hanger brackets to the ceil-
ing tray.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE. 700
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S

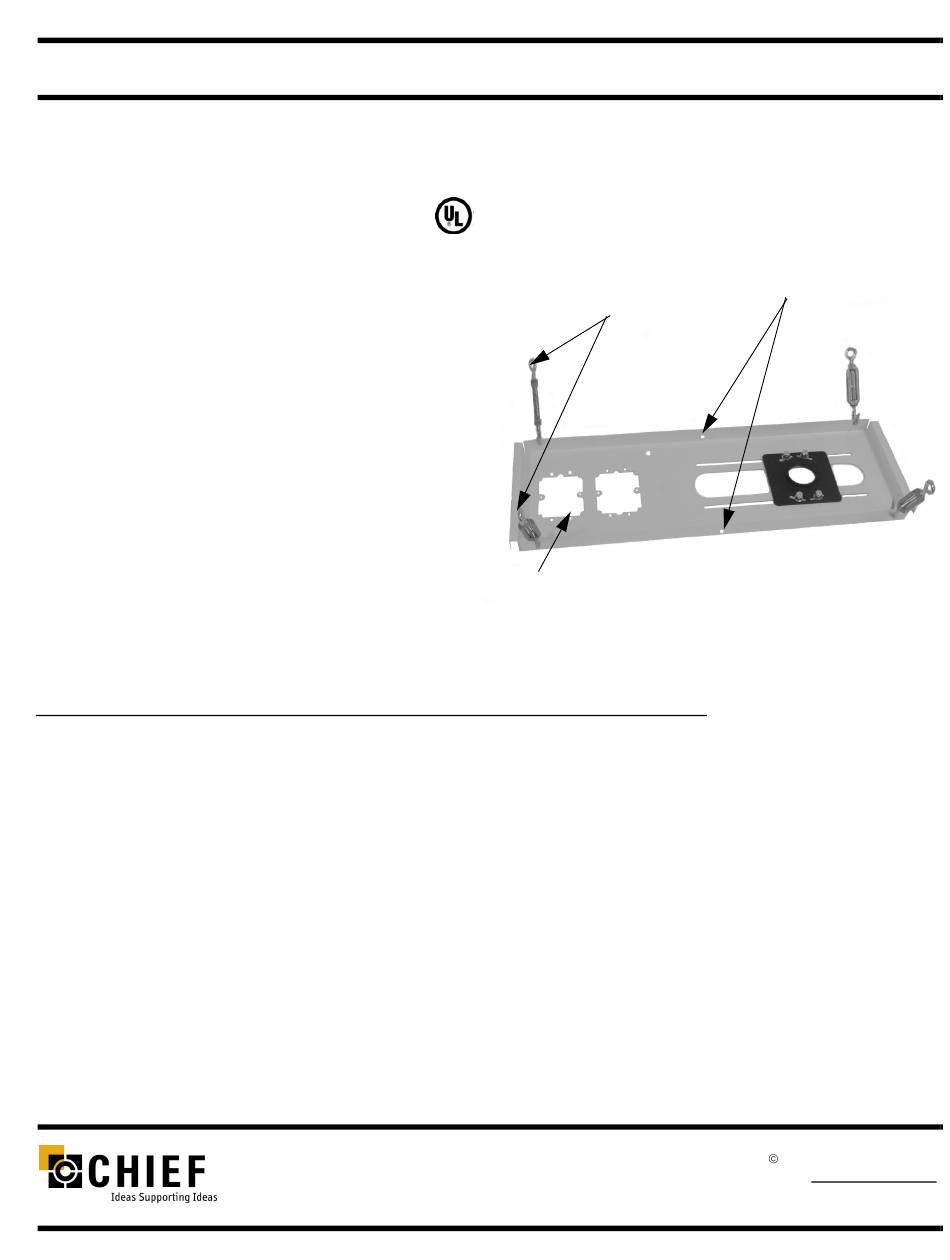

Turnbuckles for
support wires
Knockouts for
electrical outlet boxes and
antenna leads
Attachment point for safety
cable and clamp
8810-000006 Rev. E
2006 Chief Manufacturing
www.chiefmfg.com
06/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMA-440 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CHIEF CMA-440

  • Page 1 Pay particu- lar attention to the “Important Precautions” on Page 1. • The maximum weight to be installed on the CMA-440 mount is 50 pounds (22.68 Kg). • The ceiling tray is designed to fit above a conventional suspended ceiling system.
  • Page 3 • WARNING:Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted. • WARNING:The installer is responsible for verifying that the ceiling to which the CMA-440’s reinforcing plate is anchored will safely support the combined load of all attached components or other equipment.
  • Page 4 Installation Instructions CMA-440 Light Weight Suspended Ceiling Kit DIMENSIONAL DRAWING...
  • Page 5 Installation Instructions CMA-440 Light Weight Suspended Ceiling Kit ASSEMBLY PROCEDURES Hang Ceiling Tray WARNING: Improper installation can cause serious per- sonal injury! Make sure that the ceiling structural mem- bers can support a redundant weight factor five times the total weight of the equipment you intend to support over- head.
  • Page 6 Wood Joists wire. Use 14-gauge soft galvanized wire. A longer safety cable or Beams may also be required. Contact Chief Manufacturing for assis- tance in determining your specific requirements. Anchoring Methods Select the appropriate anchoring method for your ceiling: NOTE: Four eye lag screws and four concrete anchors are Figure 4.
  • Page 7 Installation Instructions CMA-440 Light Weight Suspended Ceiling Kit SECURE THE SAFETY CABLE WARNING: It is the responsibility of the installer to verify that the ceiling to which the Kit is anchored will safety support the combined load of all attached components and equipment.
  • Page 8 Installation Instructions CMA-440 Light Weight Suspended Ceiling Kit PARTS Description ....PLATE, ceiling, 8” X 24” ..SCREW, Phillips-head, self-tapping 10 x 24 x 5/8”...
