I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation

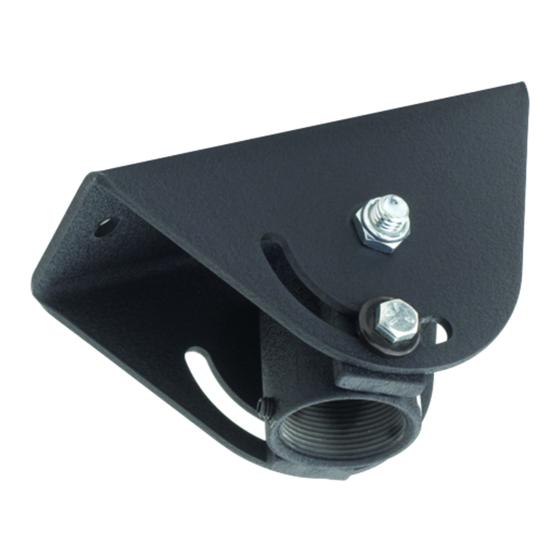

Angled Ceiling Adapter
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
CMA395
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF CMA395
Summary of Contents for CHIEF CMA395
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Angled Ceiling Adapter Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description CMA395...
- Page 2 3/8 x 2 1/2" lag bolts and 3/8" washers All rights reserved. (not included). NOTE: The CMA395 is designed to be mounted to 2" x 4" or larger wood stud joists. By using any length of 1-1/2" IMPORTANT SAFETY INSTRUCTIONS! NPT following ANSI/ASME B1.20.1 (Schedule 40, 0.154"...
-
Page 3: Installation Instructions
DIMENSIONS 1 1/2" NPT THREADS 5/16 - 18 UNC THREADS 100.00° 95.00° 90.00° 112.713 4.44 MAX HEIGHT 41.275 1.63 TOOLS / PARTS FOR INSTALLATION B (1) 5/32" 5/32" (Included) 3/4" 9/16" C (1) A (1) 5/16-18 x 3/8" [CMA395 assembly]... -
Page 4: Assembly And Installation
Drill two 1/4" pilot holes into wood joists at marked locations. tight, with a minimum of four threads engaged. (See Figure 1) Install CMA395 (A) to ceiling using two 3/8 x 2 1/2" lag bolts Use set screw (C) to secure extension column to CMA395 (not included) and two 3/8"... - Page 5 Installation Instructions CMA395 Cable Management If necessary, remove hex head bolt running through pipe channel in order to allow cables to be routed through pipe. (See Figure 4) NOTE: If cables are small enough to fit between bolt and pipe, bolt does not need to be removed.
- Page 6 CMA395 Installation Instructions...
- Page 7 Installation Instructions CMA395...
- Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
