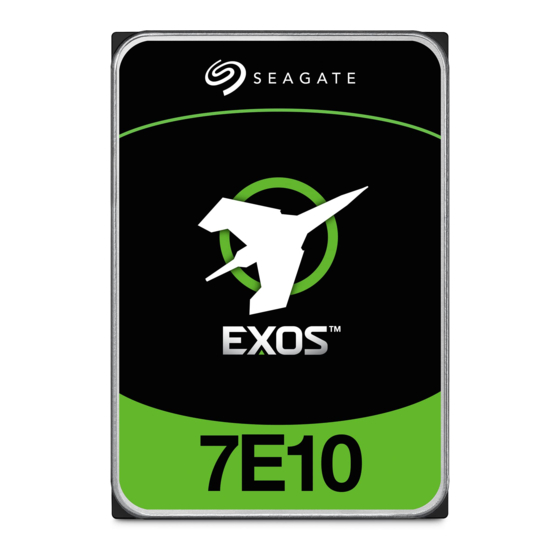

- Page 1 7E10 SATA Product Manual 512n 512n Standard models FIPS models ST6000NM000B ST4000NM012B ST4000NM000B ST2000NM000B 512n 512n SED models ISE models ST4000NM006B ST4000NM018B ST2000NM006B ST2000MN012B 201473600, Rev. E January 2022...
- Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. Exos 7E10, PowerChoice and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a cer- tification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments.
-
Page 3: Table Of Contents
Seagate® Technology Support Services ........ - Page 4 S.M.A.R.T. commands............. . 34 Seagate Exos 7E10 Serial ATA Product Manual, Rev. E...
-
Page 5: Seagate® Technology Support Services
For information regarding online support and services, visit: www.seagate.com/contacts/ For information regarding Warranty Support, visit: www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: www.seagate.com/services-software/recover/resources/ For Seagate OEM and Distribution partner and Seagate reseller portal, visit: www.seagate.com/partners Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... -
Page 6: Introduction
• Tarnish-resistant components to help protect drive from environmental elements, increasing field reliability. • Worldwide Name (WWN) capability uniquely identifies the drive. Seagate recommends validating the configuration with the selected HBA/ Note RAID controller manufacturer to ensure use of full capacity is supported. -
Page 7: Drive Specifications
(below mean sea level, max) (–1000 ft to 40,000+ ft) Operational Shock (max at 2 ms - typical) Read 70 Gs / Write 40 Gs Non-Operational Shock (max at 2 ms - typical) 300 Gs Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... -
Page 8: 2.2Formatted Capacity
* One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. Note. LBA Counts for drive capacities greater than 8TB are calculated based upon the SFF-8447 standard publication. ftp://ftp.seagate.com/sff/SFF-8447.PDF Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... -
Page 9: Lba Mode
5 to 20 seconds. Extended time to ready is dependent on cache state and environmental conditions prior to the unexpected power loss and during the subsequent power on. Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... -
Page 10: Power Specifications
0.40 8.71 Maximum DC (Peak) 0.904 0.523 During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... - Page 11 0.386 8.49 Maximum DC (Peak) 0.903 0.527 During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Seagate Exos 7E10 Serial ATA Product Manual, Rev. E...
- Page 12 0.299 7.43 Maximum DC (Peak) 0.899 0.419 During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Seagate Exos 7E10 Serial ATA Product Manual, Rev. E...
-
Page 13: Typical Current Profiles
• Using 5V power, the drive is expected to operate with a maximum of 100mV peak-to-peak sine-wave injected noise at up to 10MHz. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current. Note 2.5.4 Voltage tolerance Voltage tolerance (including noise): 5V ±5% 12V ± 10% Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... -
Page 14: Extended Power Conditions - Powerchoice
• Saved enabled state, and timer value • Current enabled state, and timer value S.M.A.R.T. Read Data Reports • Attribute 192 - Emergency Retract Count • Attribute 193 - Load/Unload Cycle Count Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... - Page 15 Disable EPC Feature Set PowerChoice Supported Extended Power Condition Identifiers Power Condition Identifiers Power Condition Name Standby_z 01 - 80 Reserved Idle_a Idle_b Idle_c 84 - FE Reserved All EPC Power Conditions Seagate Exos 7E10 Serial ATA Product Manual, Rev. E...
-
Page 16: Environmental Limits
Non-operating –40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive. 2.6.2 Humidity The values below assume that no condensation on the drive occurs. -
Page 17: Shock And Vibration
Linear Random Non-Operating Vibration The drive will not incur physical damage or have non-recoverable errors after being subjected to the power spectral density noise specified below. Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... -
Page 18: Acoustics
Test for Prominent Discrete Tones (PDTs) Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 19: Reliability
The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives. Seagate recommends that data centers be kept clean by monitoring and controlling the dust and gaseous contamination. Gaseous contamination should be within ANSI/ISA S71.04-2013 G2 classification levels (as measured on copper and silver coupons), and dust contamination to ISO 14644-1 Class 8 standards, and MTBF rated conditions as defined in the Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF) section. -
Page 20: Reference Documents
Seagate’s option and at no charge to the customer, if returned by customer at customer’s expense to Seagate’s designated facility in accordance with Seagate’s warranty procedure. -
Page 21: Configuring And Mounting The Drive
For installations which require cables, users can connect the drive as illustrated in Figure Figure 2. Attaching SATA cabling Each cable is keyed to ensure correct orientation. Exos 7E10 Serial ATA drives support latching SATA connectors. Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... -
Page 22: Drive Mounting
These dimensions conform to the Small Form Factor Standard documented in Note SFF-8301 and SFF-8323, found at www.sffcommittee.org Figure 3. Mounting configuration dimensions 3-disk models Note The image is for mechanical dimension reference only and may not represent the actual drive. Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... -
Page 23: About Self-Encrypting Drives
The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage and digital communications industry. Seagate’s SED models comply with the standards published by the TCG. To use the security features in the drive, the host must be capable of constructing and issuing the following two ATA commands: •... -
Page 24: Random Number Generator (Rng)
In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files which have been cryptographically signed by the appropriate Seagate Design Center. Three conditions must be met before the drive will allow the download operation: The download must be an SED file. -
Page 25: Power Requirements
The drive shall not support the OVERWRITE EXT and BLOCK ERASE EXT sub-commands. Support of the SANITIZE FREEZE LOCK EXT command shall be determined on a customer-specific basis. OEM drives shall support the command. Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... -
Page 26: About Fips
Figure 4. Example of FIPS tamper evidence labels. Image is for reference only, may not represent actual drive Note Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... -
Page 27: Serial Ata (Sata) Interface
There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate backplane config- uration. All used voltage pins (V ) must be terminated. Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... -
Page 28: Supported Ata Commands
Sanitize Device - Freeze Lock Ext / 0020 Sanitize Device - Status Ext / 0000 Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Security Set Password Security Unlock Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... - Page 29 Write DMA FUA Extended Write FPDMA Queued Write Log DMA Ext Write Log Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Uncorrectable Seagate Exos 7E10 Serial ATA Product Manual, Rev. E...
-
Page 30: Identify Device Command
Multiword DMA active and modes supported (see note following this table) x0007 Advanced PIO modes supported (modes 3 and 4 supported) 0003 Minimum multiword DMA transfer cycle time per word (120 ns) 0078 Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... - Page 31 The mandatory value of the world wide name (WWN) for the drive. Each drive will have a unique value. NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support. 112–118 ATA-reserved 0000 Seagate Exos 7E10 Serial ATA Product Manual, Rev. E...
- Page 32 Bits 7:2 indicate individual SCT feature support. 207-208 ATA-reserved 0000 Alignment of logical blocks and physical blocks 4000 210-221 Vendor specific xxxx Transport major version number x11FF 223-254 ATA-reserved 0000 Integrity word xxA5 Seagate Exos 7E10 Serial ATA Product Manual, Rev. E...
- Page 33 Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate Exos 7E10 Serial ATA Product Manual, Rev. E...
-
Page 34: Set Features Command
Enable read look-ahead (read cache) feature (default). Report full capacity available At power-on, or after a hardware or software reset, the default values of the features are as indicated above. Note Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... -
Page 35: S.m.a.r.t. Commands
S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x 04 (abort) is written to the Error register. Seagate Exos 7E10 Serial ATA Product Manual, Rev. E... - Page 36 Seagate Technology LLC AMERICAS Seagate Technology LLC 47488 Kato Road, Fremont, California 94538, United States, 510-661-1000 Publication Number: 201473600, Rev. E January 2022...
