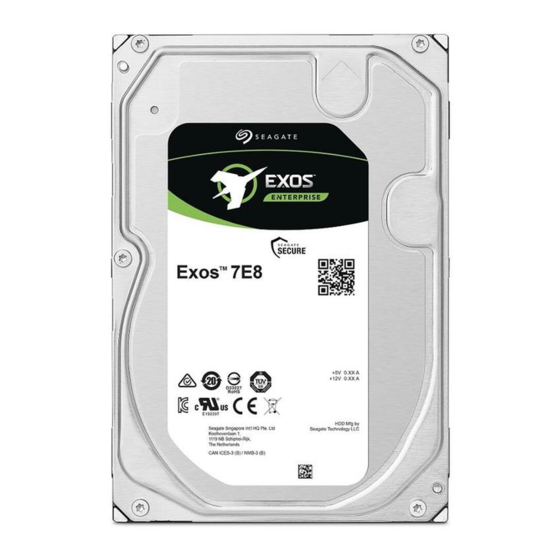

Seagate EXOS 7E8 4kN Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

7E8 SATA Product Manual
4kN Models
Standard
ST8000NM002A
ST6000NM022A
ST4000NM001A
ST2000NM002A
SED (FIPS 140-2)
ST8000NM009A
ST6000NM026A
Gen. 10 March 2020
Self-Encryption (SED)
Instant Secure Erase (ISE)
100853165, Rev. F
4kN Models
ST8000NM005A
ST6000NM024A
ST4000NM008A
ST2000NM008A
ST8000NM013A
ST6000NM028A
ST4000NM022A
ST2000NM014A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXOS 7E8 4kN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seagate EXOS 7E8 4kN

Summary of Contents for Seagate EXOS 7E8 4kN

  • Page 1 7E8 SATA Product Manual 4kN Models 4kN Models Standard Self-Encryption (SED) ST8000NM002A ST8000NM005A ST6000NM022A ST6000NM024A ST4000NM001A ST4000NM008A ST2000NM002A ST2000NM008A SED (FIPS 140-2) Instant Secure Erase (ISE) ST8000NM009A ST8000NM013A ST6000NM026A ST6000NM028A ST4000NM022A ST2000NM014A 100853165, Rev. F Gen. 10 March 2020...
  • Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. PowerChoice and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments.

  • Page 3: Table Of Contents

    Seagate® Technology Support Services ........
  • Page 4 S.M.A.R.T. commands............. . 37 Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 5: Seagate® Technology Support Services

    For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/recover/ For Seagate OEM and Distribution partner and Seagate reseller portal, visit: http://www.seagate.com/partners Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 6: Introduction

    • Tarnish-resistant components to help protect drive from environmental elements, increasing field reliability. • Worldwide Name (WWN) capability uniquely identifies the drive. Seagate recommends validating the configuration with the selected HBA/ Note RAID controller manufacturer to ensure use of full capacity is supported.

  • Page 7: About The Serial Ata Interface

    Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. The specification can be downloaded from www.serialata.org. Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 8: Drive Specifications

    5° to 60°C (Drive Reported Temperature) 20°C (operating) Temperature gradient (°C per hour max) 20°C (nonoperating) 5% to 95% (operating) Relative humidity 5% to 95% (nonoperating) Relative humidity gradient 20% per hour max Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 9 ** During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. † Section 2.11, "Reliability" for rated MTBF device operating condition requirements. Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 10: 2.2Formatted Capacity

    216 (226 MB/s max) I/O data-transfer rate (MB/s max) 600 (Ultra DMA mode 5) Start/stop times Power-on to Ready (sec) (typ/max) 23/30 Standby to Ready (sec) (typ/max) 23/30 Ready to spindle stop (sec) (max) Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 11: Power Specifications

    0.587 0.568 9.75 Maximum DC (Peak) 0.749 0.887 *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 12 0.616 0.476 8.79 Maximum DC (Peak) 0.795 1.824 *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 13 0.563 0.394 7.54 Maximum DC (Peak) 0.719 0.647 *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 14 0.579 0.309 6.60 Maximum DC (Peak) 0.743 0.533 *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 15 2.5.1.1 Typical current profiles Figure 1. 8TB Typical startup and operation current profile 2.5.1.2 Typical current profiles Figure 2. 6TB Typical startup and operation current profile Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 16 2.5.1.3 Typical current profiles Figure 3. 4TB Typical startup and operation current profile 2.5.1.4 Typical current profiles Figure 4. 2TB Typical startup and operation current profile Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 17: Conducted Noise Immunity

    • Reports the current power state of the drive Identify Device Command • EPC Feature set supported flag • EPC Feature enabled flag is set if at least one Idle power condition timer is enabled Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 18 Disable EPC Feature Set PowerChoice Supported Extended Power Condition Identifiers Power Condition Identifiers Power Condition Name Standby_z 01 - 80 Reserved Idle_a Idle_b Idle_c 84 - FE Reserved All EPC Power Conditions Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 19: Environmental Limits

    Non-operating –40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive. 2.6.2 Humidity The values below assume that no condensation on the drive occurs.

  • Page 20: Acoustics

    Test for Prominent Discrete Tones (PDTs) Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards.

  • Page 21: Electromagnetic Immunity

    From this page, click on the “Is my Drive under Warranty” link. The following are required to be provided: the drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for the drive. Preventive maintenance None required. Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 22: Hdd And Ssd Regulatory Compliance And Safety

    The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives. Seagate recommends that data centers be kept clean by monitoring and controlling the dust and gaseous contamination. Gaseous contamination should be within ANSI/ISA S71.04-2013 G2 classification levels (as measured on copper and silver coupons), and dust contamination to ISO 14644-1 Class 8 standards, and MTBF rated conditions as defined in the Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF) section.

  • Page 23: Product Warranty

    Seagate’s option and at no charge to the customer, if returned by customer at customer’s expense to Seagate’s designated facility in accordance with Seagate’s warranty procedure.

  • Page 24: Configuring And Mounting The Drive

    Figure 6 1.579 lb 716g 1.528 lb 693g Weight: 1.431 lb 649g 1.367 lb 620g These dimensions conform to the Small Form Factor Standard documented in Note SFF-8301 and SFF-8323, found at www.sffcommittee.org Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 25 The image is for mechanical dimension reference only and may not represent the actual drive. Figure 7. Mounting configuration dimensions 8TB and 6TB models (Option 2) Note The image is for mechanical dimension reference only and may not represent the actual drive. Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 26 C L OF DRIVE .138±.015 2.000 1.028 MAX 26.10 MM Figure 8. Mounting configuration dimensions 4TB and 2TB models The image is for mechanical dimension reference only and may not represent the actual drive. Note Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 27: About Self-Encrypting Drives

    The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage and digital communications industry. Seagate’s SED models comply with the standards published by the TCG. To use the security features in the drive, the host must be capable of constructing and issuing the following two ATA commands: •...

  • Page 28: Random Number Generator (Rng)

    In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files which have been cryptographically signed by the appropriate Seagate Design Center. Three conditions must be met before the drive will allow the download operation: The download must be an SED file.

  • Page 29: Power Requirements

    The drive shall not support the OVERWRITE EXT and BLOCK ERASE EXT sub-commands. Support of the SANITIZE FREEZE LOCK EXT command shall be determined on a customer-specific basis. OEM drives shall support the command. Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 30: About Fips

    Figure 9. Example of FIPS tamper evidence labels. Image is for reference only, may not represent actual drive Note Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 31: Serial Ata (Sata) Interface

    There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate backplane config- uration. All used voltage pins (V ) must be terminated. Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 32: Supported Ata Commands

    / 0014 Sanitize Device - Freeze Lock Ext / 0020 Sanitize Device - Status Ext / 0000 Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Security Set Password Security Unlock Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 33 Write DMA FUA Extended Write FPDMA Queued Write Log DMA Ext Write Log Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Uncorrectable Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 34: Identify Device Command

    Minimum multiword DMA transfer cycle time per word (120 ns) 0078 Recommended multiword DMA transfer cycle time per word (120 ns) 0078 Minimum PIO cycle time without IORDY flow control (120 ns) 0078 Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 35 NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support. 112–118 ATA-reserved 0000 Commands and feature sets supported 43DE Commands and feature sets supported or enabled 409C 121-127 ATA-reserved 0000 Security status 0021 129–159 Seagate-reserved xxxx Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 36 Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 37: Set Features Command

    Disable use of SATA features Enable read look-ahead (read cache) feature (default). Report full capacity available At power-on, or after a hardware or software reset, the default values of the features are as indicated above. Note Seagate Exos 7E8 SATA Product Manual, Rev. F...

  • Page 38: S.m.a.r.t. Commands

    S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x 04 (abort) is written to the Error register. Seagate Exos 7E8 SATA Product Manual, Rev. F...
  • Page 39 Seagate Technology LLC AMERICAS Seagate Technology LLC 10200 South De Anza Boulevard, Cupertino, California 95014, United States, 408-658-1000 Publication Number: 100853165, Rev. F March 2020...
