Standard 4KN models
ST8000NM0045
ST6000NM0055
Self-Encryption 4KN models
ST8000NM0115
ST6000NM0165
SED FIPS 4KN models
ST8000NM0145
7E8 SATA Product Manual
Self-Encryption 512E models
100780701, Rev. A
September 2017
Standard 512E models
ST8000NM0055
ST6000NM0065
ST8000NM0105
ST6000NM0155
SED FIPS 512E models
ST8000NM0155
Advertisement
Table of Contents
Related Manuals for Seagate EXOS 7E8 SATA
Summary of Contents for Seagate EXOS 7E8 SATA
- Page 1 7E8 SATA Product Manual Standard 4KN models Standard 512E models ST8000NM0055 ST8000NM0045 ST6000NM0065 ST6000NM0055 Self-Encryption 512E models Self-Encryption 4KN models ST8000NM0105 ST8000NM0115 ST6000NM0155 ST6000NM0165 SED FIPS 512E models SED FIPS 4KN models ST8000NM0155 ST8000NM0145 100780701, Rev. A September 2017...
- Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. PowerChoice and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments.
-
Page 3: Table Of Contents
Seagate® Technology Support Services ........ - Page 4 S.M.A.R.T. commands............. . 36 Seagate Exos 7E8 SATA Product Manual, Rev. A...
-
Page 5: Seagate® Technology Support Services
For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/recover/ For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/ Seagate Exos 7E8 SATA Product Manual, Rev. A... -
Page 6: Introduction
• Supports latching SATA cables and connectors. • Top Cover Attached motor for excellent vibration tolerance • Worldwide Name (WWN) capability uniquely identifies the drive. Seagate recommends validating the configuration with the selected HBA/ Note RAID controller manufacturer to ensure use of full capacity is supported. -
Page 7: About The Serial Ata Interface
Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. The specification can be downloaded from www.serialata.org. Seagate Exos 7E8 SATA Product Manual, Rev. A... -
Page 8: Drive Specifications
2.0A (optional configuration through Smart Command Transport) 5V +10/-5% Voltage tolerance (including noise) 12V ±10% Non-Operating ambient temperature (°C) –40 to 70 Operating ambient temperature (min °C) Operating temperature (Drive case max °C) Seagate Exos 7E8 SATA Product Manual, Rev. A... - Page 9 One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. ** During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Seagate Exos 7E8 SATA Product Manual, Rev. A...
-
Page 10: Formatted Capacity
Sustained data transfer rate (MiB/s max) I/O data-transfer rate (MB/s max) 600 (Ultra DMA mode 5) Start/stop times Power-on to Ready (sec) (typ/max) 23/30 Standby to Ready (sec) (typ/max) 23/30 Ready to spindle stop (sec) (max) Seagate Exos 7E8 SATA Product Manual, Rev. A... -
Page 11: Power Specifications
Maximum DC 0.46 0.63 Maximum DC (peak) 0.53 1.82 *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels Seagate Exos 7E8 SATA Product Manual, Rev. A... - Page 12 2.5.1.1 Typical current profiles Figure 1. 8TB and 6TB Typical 5V startup and operation current profile Figure 2. 8TB and 6TB Typical 12V startup and operation current profile Seagate Exos 7E8 SATA Product Manual, Rev. A...
-
Page 13: Conducted Noise
• Reports the current power state of the drive Identify Device Command • EPC Feature set supported flag • EPC Feature enabled flag is set if at least one Idle power condition timer is enabled Seagate Exos 7E8 SATA Product Manual, Rev. A... - Page 14 Disable EPC Feature Set PowerChoice Supported Extended Power Condition Identifiers Power Condition Identifiers Power Condition Name Standby_z 01 - 80 Reserved Idle_a Idle_b Idle_c 84 - FE Reserved All EPC Power Conditions Seagate Exos 7E8 SATA Product Manual, Rev. A...
-
Page 15: Environmental Limits
Non-operating –40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive. HDA Temp. -
Page 16: Shock
The maximum nonoperating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below. 10–500 Hz 5.0 Grms ref Linear Random Seagate Exos 7E8 SATA Product Manual, Rev. A... -
Page 17: Acoustics
Test for Prominent Discrete Tones (PDTs) Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 18: Reliability
Seagate drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with all relevant regulatory requirements and standards for the drives, Seagate cannot guarantee that all system-level products into which the drives are installed comply with all regulatory requirements and standards applicable to the system-level products. -
Page 19: Canada Ices-003
2.11.7 Morocco Commodity Mark To satisfy our OEM customers, Seagate has added the Moroccan Commodity Mark to the drives provided to the OEM for the sale of Customer Kits produced by our OEM customers that are intended to be incorporated into the OEM's finished system-level product by an end user. -
Page 20: Environmental Protection
2.12.1.1 Restriction of Hazardous Substances in Electrical and Electronic Equipment Seagate drives are designed to be compliant with the European Union RoHS "Recast" Directive 2011/65/EU (RoHS 2) as amended by Directive (EU) 2015/863. The RoHS2 restricts the use of certain hazardous substances such as Lead, Cadmium, Mercury, Hexavalent Chromium, Polybrominated Biphenyls (PBB) and Polybrominated Diphenyl Ether (PBDE), BisBis(2-Ethylhexyl) phthalate (DEHP), Benzyl butyl phthalate (BBP), Dibutyl phthalate (DBP), and Diisobutyl phthalate (DIBP) in electrical and electronic equipment (EEE). -
Page 21: Taiwan Requirements - Taiwan Rohs
The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives. Seagate recommends that data centers be kept clean by monitoring and controlling the dust and gaseous contamination. Gaseous contamination should be within ANSI/ISA S71.04-2013 G2 classification levels (as measured on copper and silver coupons), and dust contamination to ISO 14644-1 Class 8 standards, and MTBF rated conditions as defined in the Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF) section. -
Page 22: Reference Documents
Seagate’s option and at no charge to the customer, if returned by customer at customer’s expense to Seagate’s designated facility in accordance with Seagate’s warranty procedure. -
Page 23: Configuring And Mounting The Drive
Figure 4. Attaching SATA cabling Each cable is keyed to ensure correct orientation. Seagate Exos 7E8 SATA drives support latching SATA connectors. Drive mounting Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottom-mounting holes. -
Page 24: Mechanical Specifications
.142±.015 2 2.000 C L OF DRIVE Figure 6. Mounting configuration dimensions (8TB and 6TB models) The image is for mechanical dimension reference only and may not represent the actual drive. Note Seagate Exos 7E8 SATA Product Manual, Rev. A... -
Page 25: About Self-Encrypting Drives
The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage and digital communications industry. Seagate’s SED models comply with the standards published by the TCG. To use the security features in the drive, the host must be capable of constructing and issuing the following two ATA commands: •... -
Page 26: Random Number Generator (Rng)
In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files which have been cryptographically signed by the appropriate Seagate Design Center. Three conditions must be met before the drive will allow the download operation: The download must be an SED file. -
Page 27: Power Requirements
The drive shall not support the OVERWRITE EXT and BLOCK ERASE EXT sub-commands. Support of the SANITIZE FREEZE LOCK EXT command shall be determined on a customer-specific basis. OEM drives shall support the command. Seagate Exos 7E8 SATA Product Manual, Rev. A... -
Page 28: About Fips

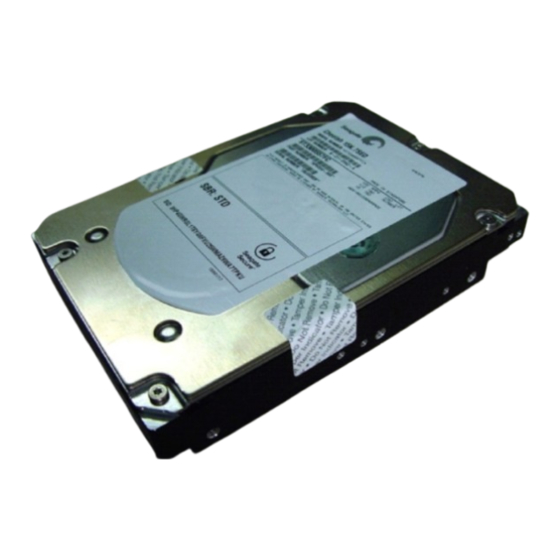

Figure 7. Example of FIPS tamper evidence labels. Image is for reference only, may not represent actual drive Note Seagate Exos 7E8 SATA Product Manual, Rev. A... -
Page 29: Serial Ata (Sata) Interface
For detailed information about the Serial ATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. Hot-Plug compatibility Seagate Exos 7E8 SATA drives incorporate connectors which enable users to hot plug these drives in accordance with the Serial ATA Revision 3.2 specification. This specification can be downloaded from www.serialata.org. -
Page 30: Supported Ata Commands
Request Sense Data Ext Sanitize Device - Overwrite Ext / 0014 Sanitize Device - Freeze Lock Ext / 0020 Sanitize Device - Status Ext / 0000 Security Disable Password Security Erase Prepare Security Erase Unit Seagate Exos 7E8 SATA Product Manual, Rev. A... - Page 31 Write DMA FUA Extended Write FPDMA Queued Write Log DMA Ext Write Log Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Uncorrectable Seagate Exos 7E8 SATA Product Manual, Rev. A...
-
Page 32: Identify Device Command
137GB). Drives with capacities over 137GB will have 0FFFFFFFh in this field and the actual number of user-addressable LBAs specified in words 100-103. This is required for drives that support the 48-bit addressing feature. Obsolete 0000 Seagate Exos 7E8 SATA Product Manual, Rev. A... - Page 33 These words are required for drives that support the 48-bit ST8000NM0155 = 1,953,506,646 addressing feature. Maximum value: 0000FFFFFFFFFFFFh. ST8000NM0165 = 15,628,053,168 ST6000NM0055 = 1,465,130,646 ST6000NM0155 = 11,721,045,168 ST6000NM0165 = 1,465,130,646 104–105 ATA-reserved 0000 Physical/Logical sector size 6003 ATA-reserved 0000 Seagate Exos 7E8 SATA Product Manual, Rev. A...
- Page 34 If bit 0 is set to one, then the device supports SCT Command Transport. xxBD Bits 7:2 indicate individual SCT feature support. 207-254 ATA-reserved 0000 Integrity word xxA5 See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data. Note Seagate Exos 7E8 SATA Product Manual, Rev. A...
- Page 35 Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate Exos 7E8 SATA Product Manual, Rev. A...
-
Page 36: Set Features Command
Disable use of SATA features Enable read look-ahead (read cache) feature (default). Report full capacity available At power-on, or after a hardware or software reset, the default values of the features are as indicated above. Note Seagate Exos 7E8 SATA Product Manual, Rev. A... -
Page 37: Commands
S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x 04 (abort) is written to the Error register. Seagate Exos 7E8 SATA Product Manual, Rev. A... - Page 38 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100780701, Rev. A...
